TOYOTA HIGHLANDER JPP GVU48L-BRXGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

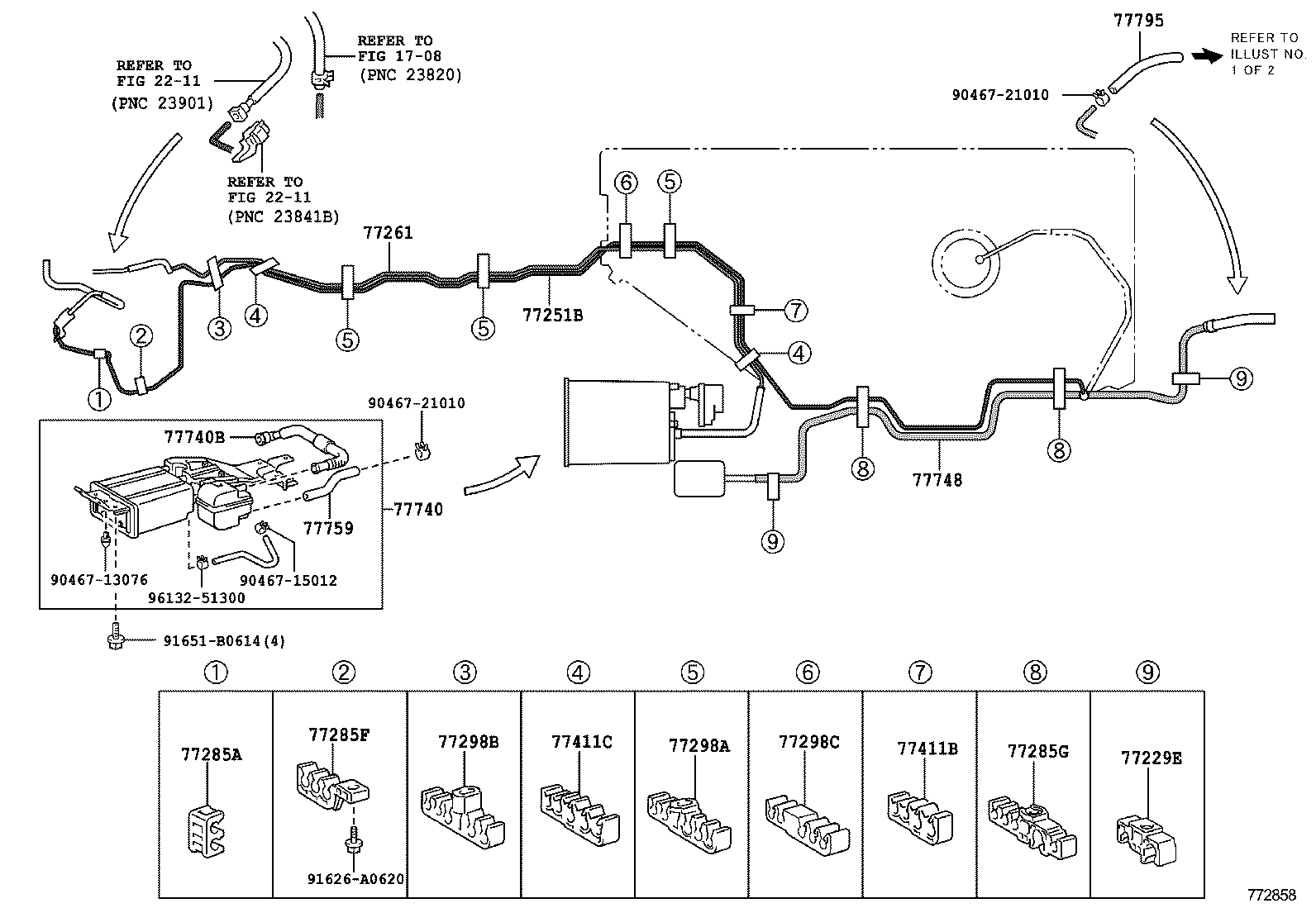

FUEL TUBE ILLUST NO. 2 OF 2(1008- )

HIGHLANDER JPP | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77229E - CLAMP, BREATHER TUBE 77251B - TUBE, FUEL MAIN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77298A - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77298C - CLAMP, FUEL TUBE, NO.4 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 77740 - CANISTER ASSY, CHARCOAL 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77748 - PIPE, CHARCOAL CANISTER, NO.2 77759 - HOSE, CHARCOAL CANISTER 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
