TOYOTA LAND CRUISER 70 GRJ76L-RKMRK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

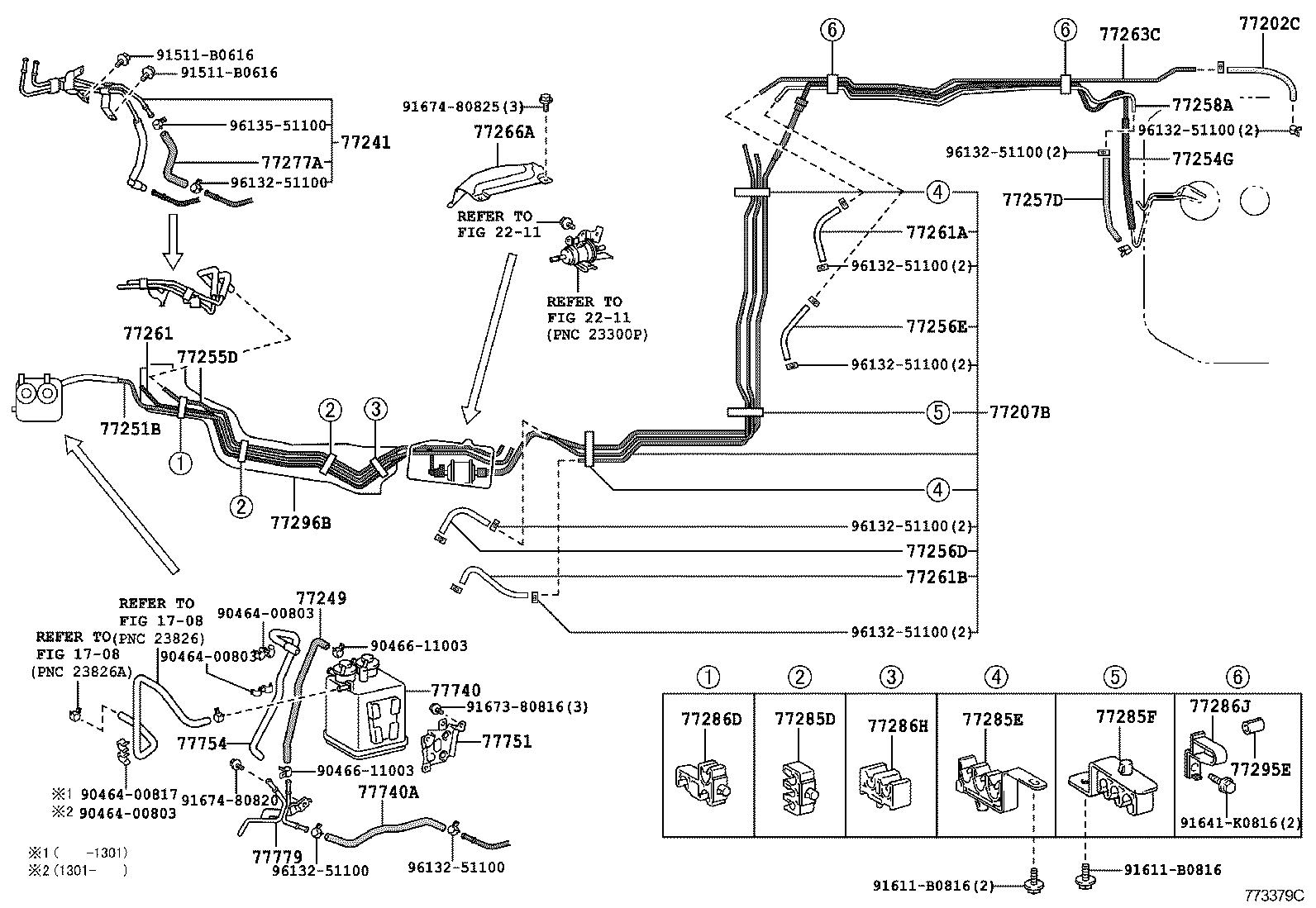

FUEL TUBE ILLUST NO. 3 OF 5(1208- )GRJ76

LAND CRUISER 70 | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE) 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 77241 - TUBE, FUEL MAIN, NO.1 77249 - HOSE, FUEL EMISSION 77251B - TUBE, FUEL MAIN 77254G - TUBE, FUEL MAIN, NO.4 77255D - TUBE, FUEL RETURN 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) 77258A - TUBE, FUEL RETURN, NO.4 77261 - TUBE SUB-ASSY, FUEL EMISSION 77261A - HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) 77261B - HOSE, FUEL, NO.2 (FOR FUEL EMISSION TUBE) 77263C - TUBE, FUEL EMISSION, NO.3 77266A - PROTECTOR, FUEL TUBE, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77285D - CLAMP, FUEL TUBE, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286H - CLAMP, FUEL TUBE, NO.3 77286J - CLAMP, FUEL TUBE, NO.4 77295E - GROMMET, FUEL TUBE 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77779 - TUBE, CHARCOAL CANISTER OUTLET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
