TOYOTA YARIS NCP93L-BEMRKK / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

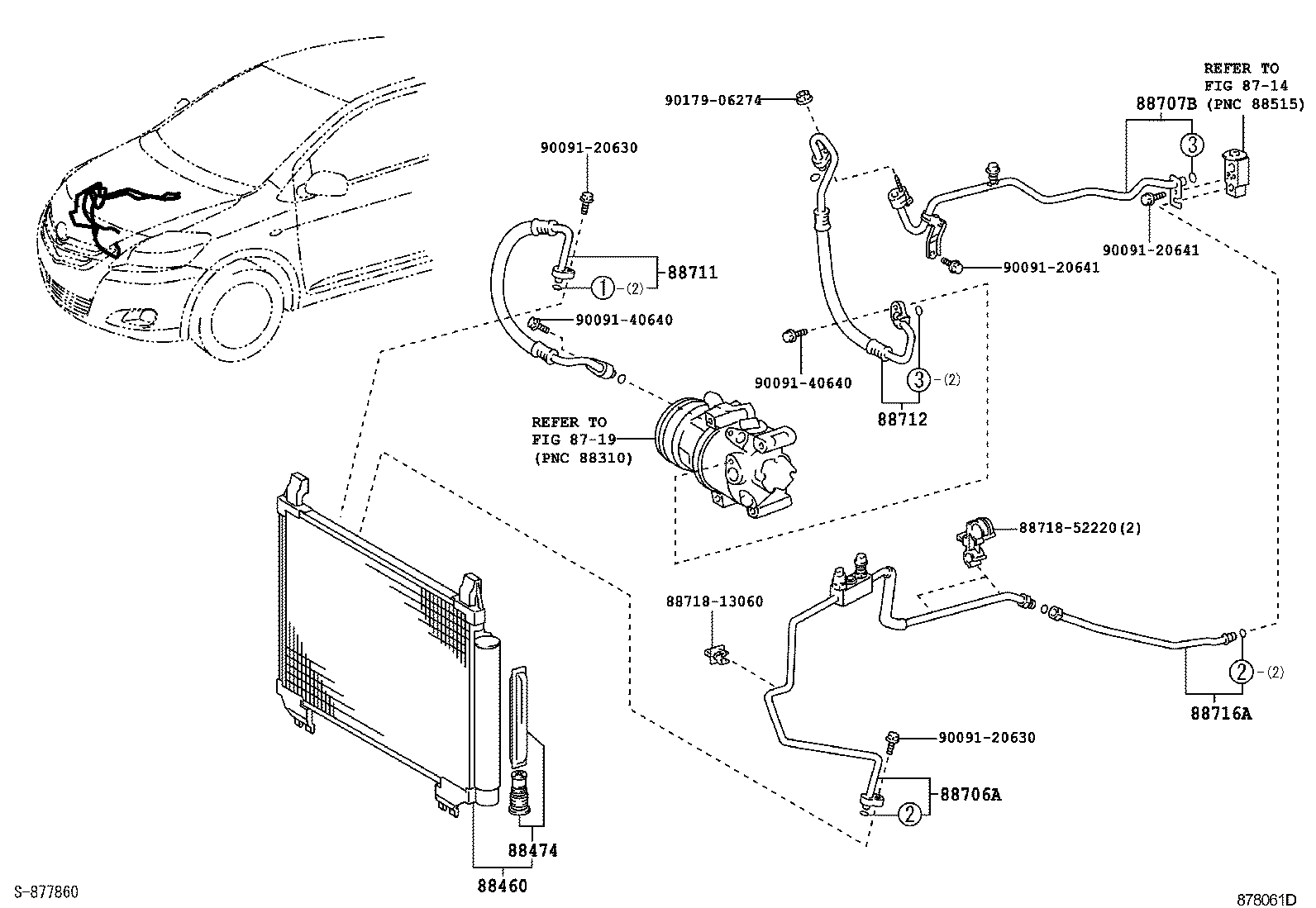

HEATING AIR CONDITIONING COOLER PIPING

DEALER OPTION ILLUST NO. 1 OF 2(0602- )CND

YARIS | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER 88706A - TUBE SUB-ASSY, LIQUID, A 88707B - TUBE SUB-ASSY, SUCTION, B 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
