TOYOTA HIGHLANDER NAP GSU45L-ARANKA / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

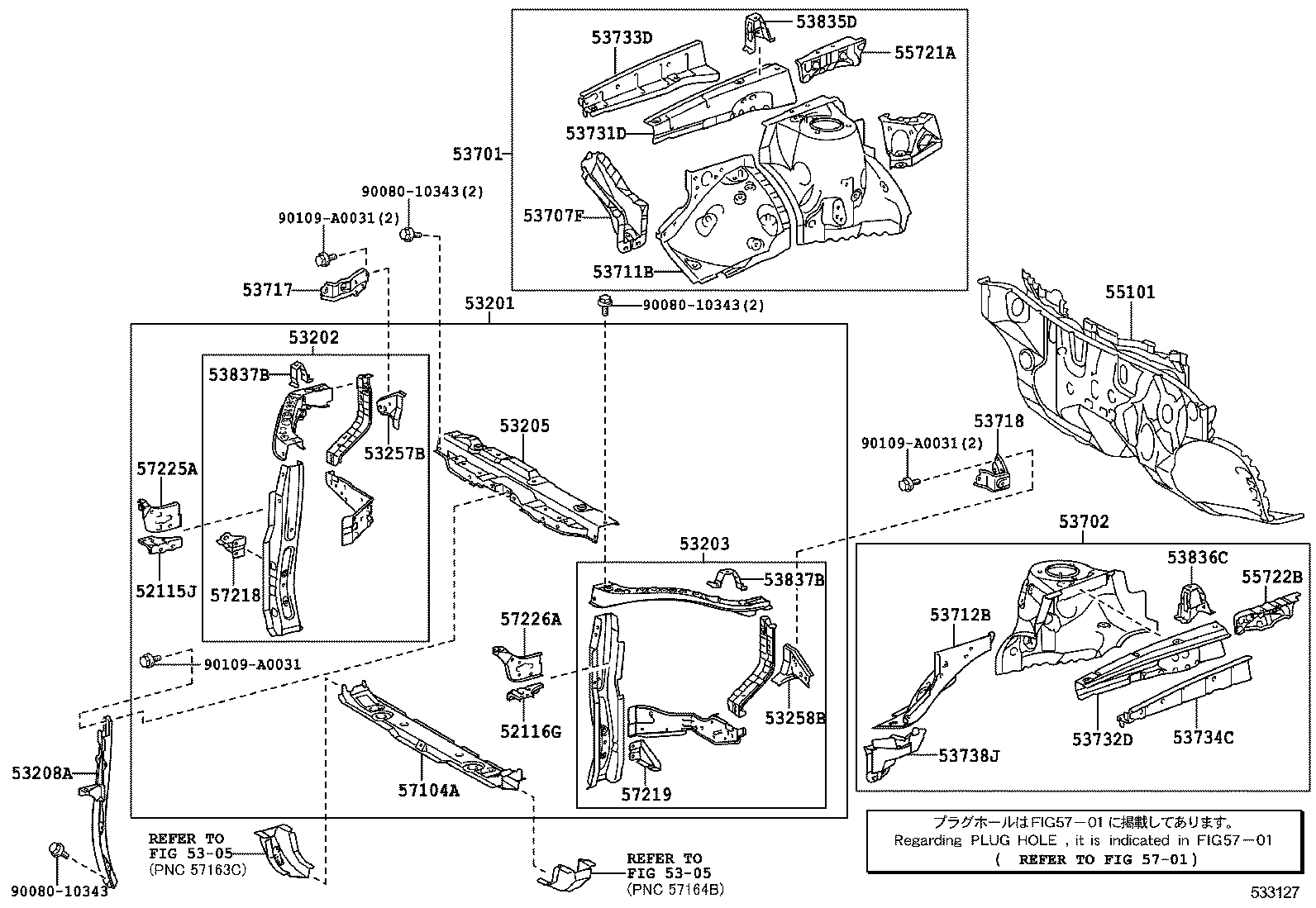

FRONT FENDER APRON DASH PANEL

ILLUST NO. 1 OF 2(0910- )

 HIGHLANDER NAP |  FRONT FENDER APRON DASH PANEL 52115J - SUPPORT, FRONT BUMPER SIDE, RH 52116G - SUPPORT, FRONT BUMPER SIDE, LH ** Refer Fig ** Refer Fig 53201 - SUPPORT SUB-ASSY, RADIATOR 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LWR RH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53717 - PLATE, FENDER APRON, RH 53718 - PLATE, FENDER APRON, LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53738J - GUSSET, FRONT FENDER APRON WIND GUIDE, LH 53835D - BRACKET, FRONT SIDE PANEL, RH 53836C - BRACKET, FRONT SIDE PANEL, LH 53837B - BRACKET, FRONT SIDE PANEL, NO.2 53837B - BRACKET, FRONT SIDE PANEL, NO.2 55101 - PANEL SUB-ASSY, DASH 55721A - BRACE, COWL TOP TO COWL, INNER NO.1 55722B - BRACE, COWL TOP TO COWL, INNER NO.2 ** Refer Fig 57104A - MEMBER SUB-ASSY, FRONT CROSS 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 57225A - BRACE, FRONT MOUNTING BRACKET, RH 57226A - BRACE, FRONT MOUNTING BRACKET, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
