TOYOTA HIGHLANDER NAP GSU45L-ARANKA / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

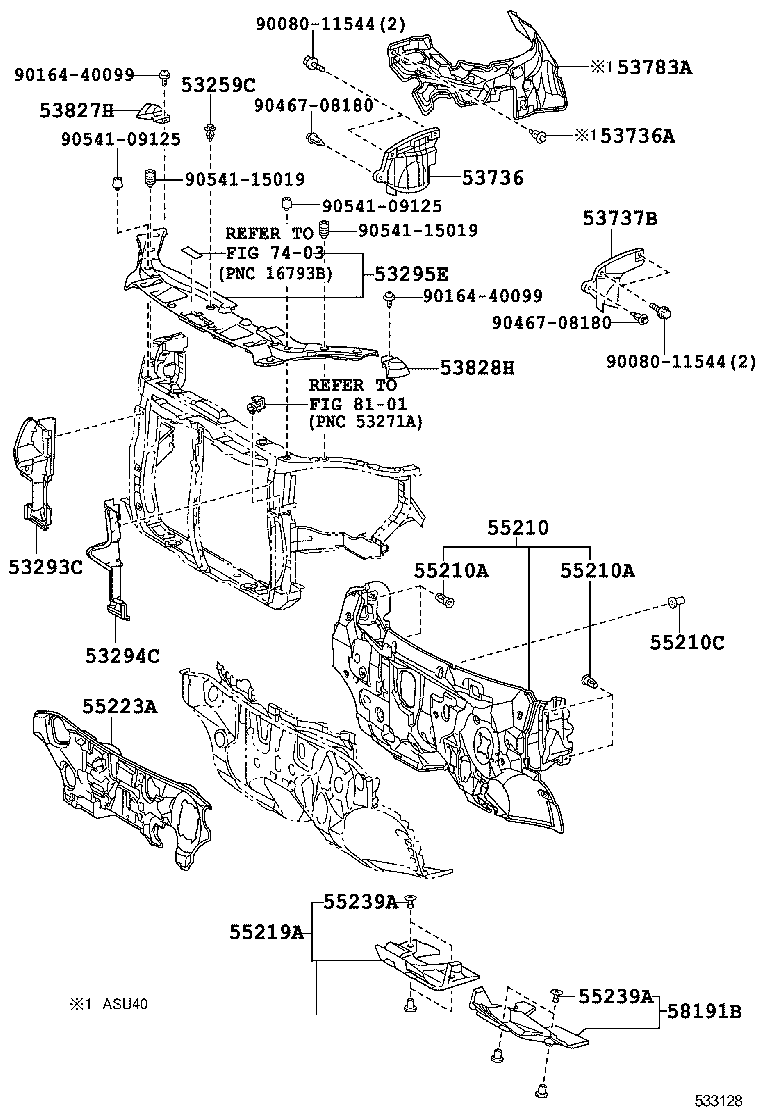

FRONT FENDER APRON DASH PANEL

INSULATOR & SEAL ILLUST NO. 2 OF 2(0910- )

 HIGHLANDER NAP |  FRONT FENDER APRON DASH PANEL 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53295E - SEAL, COOL AIR INTAKE DUCT 53736 - SEAL, FRONT FENDER APRON, RH 53736A - CLIP(FOR FRONT FENDER APRON SEAL) 53737B - SEAL, FRONT FENDER APRON, LH 53783A - INSULATOR, APRON FRONT FENDER, RH 53827H - PROTECTOR, FRONT FENDER SIDE PANEL, RH 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210A - CLIP 55210C - CLIP 55219A - PACKING, DASH PANEL HOLE COVER 55223A - INSULATOR, DASH PANEL, OUTER 55239A - PLATE, DASH PANEL INSULATOR, NO.3 55239A - PLATE, DASH PANEL INSULATOR, NO.3 58191B - FOOTREST, FR FLOOR ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
