LEXUS LS460 460L USF40L-AEZGKW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FRONT SEAT SEAT TRACK

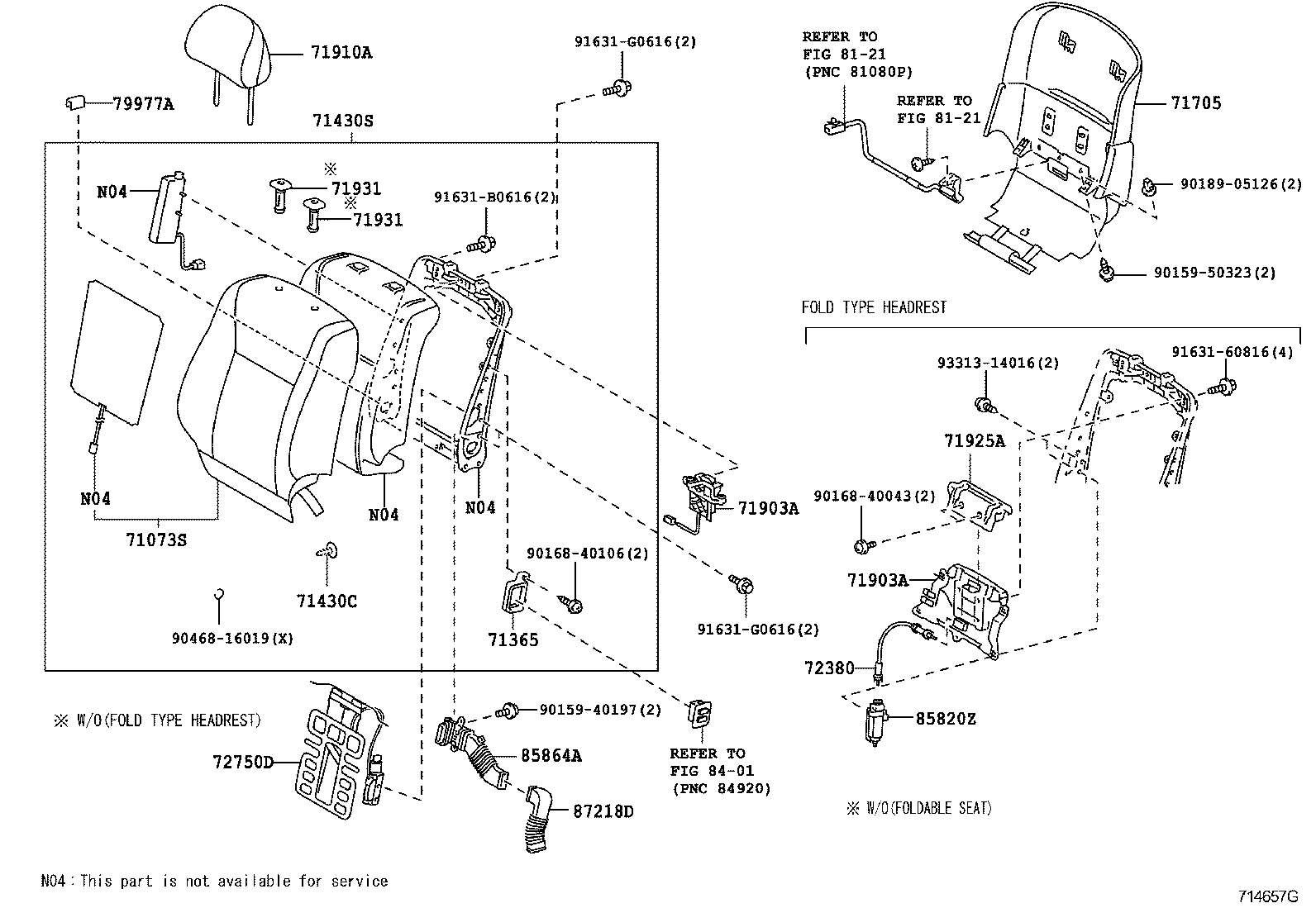

PASSENGER SIDE(SEAT BACK) ILLUST NO. 2 OF 4(0608-0909)LHD

LS460 460L | FRONT SEAT SEAT TRACK 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71365 - BRACKET, FRONT SEAT SET, NO.5 71430C - CLIP 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71903A - ADJUSTER, FRONT SEAT HEADREST 71903A - ADJUSTER, FRONT SEAT HEADREST 71910A - HEADREST ASSY, FRONT SEAT 71925A - COVER, FRONT SEAT HEADREST STAY,RH 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 79977A - FELT, SEAT BACK ** Refer Fig ** Refer Fig ** Refer Fig 85820Z - MOTOR ASSY, POWER SEAT 85864A - CONTROLLER, SEAT CLIMATE CONTROL, RH 87218D - DUCT, AIR, RR NO.6 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
