LEXUS LS460 460L USF40L-AEZGKW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

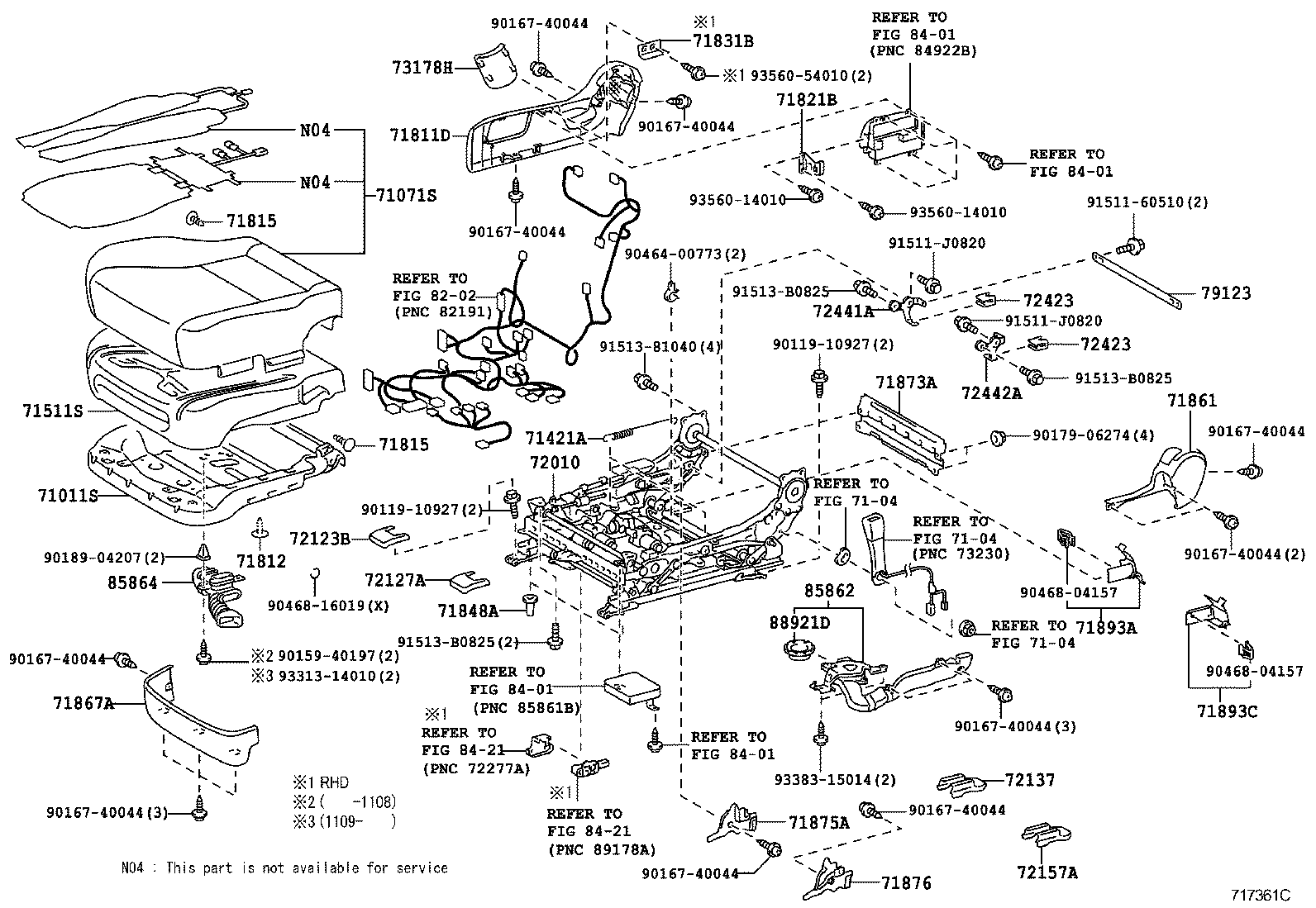

FRONT SEAT SEAT TRACK

RH(SEAT CUSHION) ILLUST NO. 4 OF 4(0608- )

LS460 460L | FRONT SEAT SEAT TRACK 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH ** Refer Fig ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71421A - SPRING, FRONT SEAT CUSHION 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) 71815 - CLIP (FOR FRONT SEAT CUSHION COVER SET) 71815 - CLIP (FOR FRONT SEAT CUSHION COVER SET) 71821B - BRACKET, FRONT SEAT SHIELD SET, NO.1 71831B - COVER, FRONT SEAT HINGE, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71893A - SHIELD, POWER ADJUSTER, FRONT RH 71893C - SHIELD, POWER ADJUSTER, INNER RH 72010 - ADJUSTER ASSY, FRONT SEAT, RH 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137 - COVER, SEAT TRACK OUTER, RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72423 - HOOK, VERTICAL ADJUSTER SPRING 72423 - HOOK, VERTICAL ADJUSTER SPRING 72441A - LINK, FRONT SEAT TRAVEL, NO.1 72442A - LINK, FRONT SEAT TRAVEL, NO.2 73178H - CAP, SEAT BELT ANCHOR COVER, RH 79123 - PLATE, NO.1 SEAT CUSHION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85862 - BLOWER, SEAT CLIMATE CONTROL, RH 85864 - CONTROLLER, SEAT CLIMATE CONTROL,RH 88921D - FILTER, AIR, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
