TOYOTA COASTER CHINA BB53L-ZCMEU / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

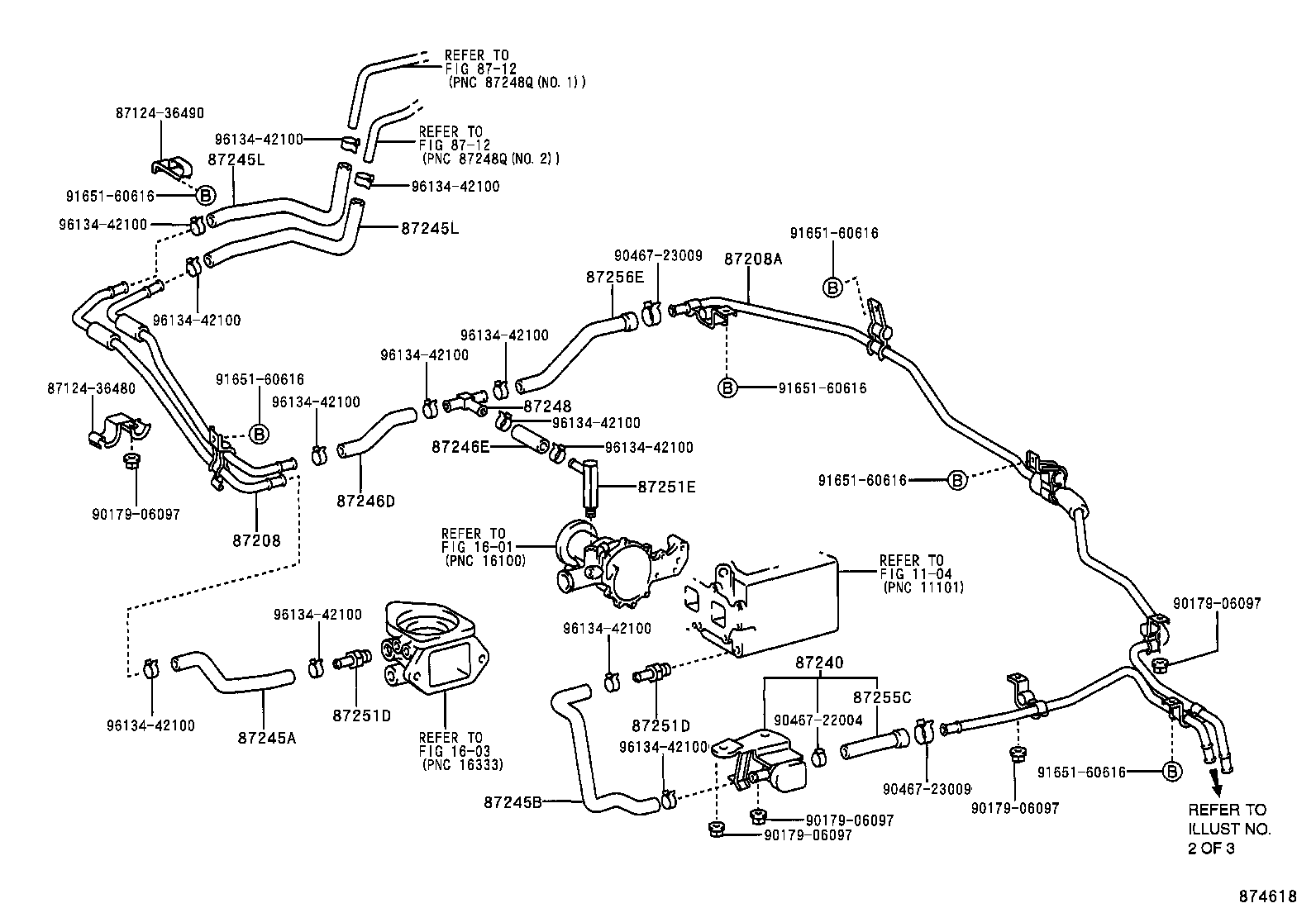

FRONT ILLUST NO. 1 OF 3(0012-0310)BB53

COASTER CHINA | HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part 87208 - PIPE SUB-ASSY, HEATER WATER 87208A - PIPE SUB-ASSY, HEATER WATER, A 87240 - VALVE ASSY, HEATER WATER 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245L - HOSE, HEATER WATER, L 87245L - HOSE, HEATER WATER, L 87246D - HOSE, HEATER WATER, OUTLET D 87246E - HOSE, HEATER WATER, OUTLET E 87248 - PIPE SUB-ASSY, WATER 87251D - JOINT, WATER, NO.1 87251D - JOINT, WATER, NO.1 87251E - JOINT, WATER, NO.2 87255C - HOSE, REAR HEATER WATER INLET, C 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
