TOYOTA COASTER CHINA BB53L-ZCMEU / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

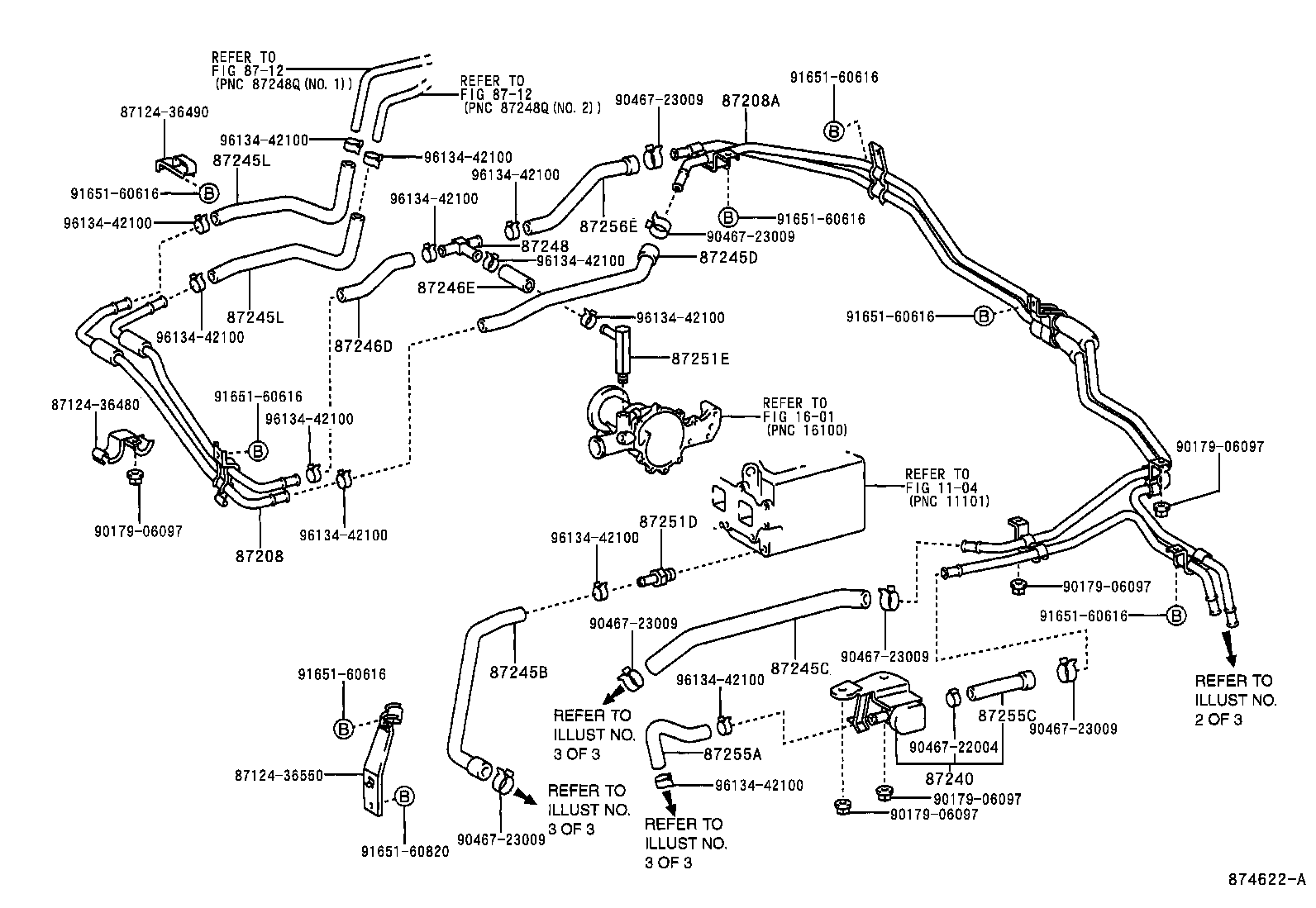

HEATING AIR CONDITIONING WATER PIPING

FRONT--COLD SPEC ILLUST NO. 1 OF 3(0012-0310)BB5#

 COASTER CHINA |  HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part 87208 - PIPE SUB-ASSY, HEATER WATER 87208A - PIPE SUB-ASSY, HEATER WATER, A 87240 - VALVE ASSY, HEATER WATER 87245B - HOSE, HEATER WATER, INLET B 87245C - HOSE, HEATER WATER ,INLET C 87245D - HOSE, HEATER WATER, INLET D 87245L - HOSE, HEATER WATER, L 87245L - HOSE, HEATER WATER, L 87246D - HOSE, HEATER WATER, OUTLET D 87246E - HOSE, HEATER WATER, OUTLET E 87248 - PIPE SUB-ASSY, WATER 87251D - JOINT, WATER, NO.1 87251E - JOINT, WATER, NO.2 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255C - HOSE, REAR HEATER WATER INLET, C 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
