TOYOTA COASTER CHINA BB53L-ZCMEU / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

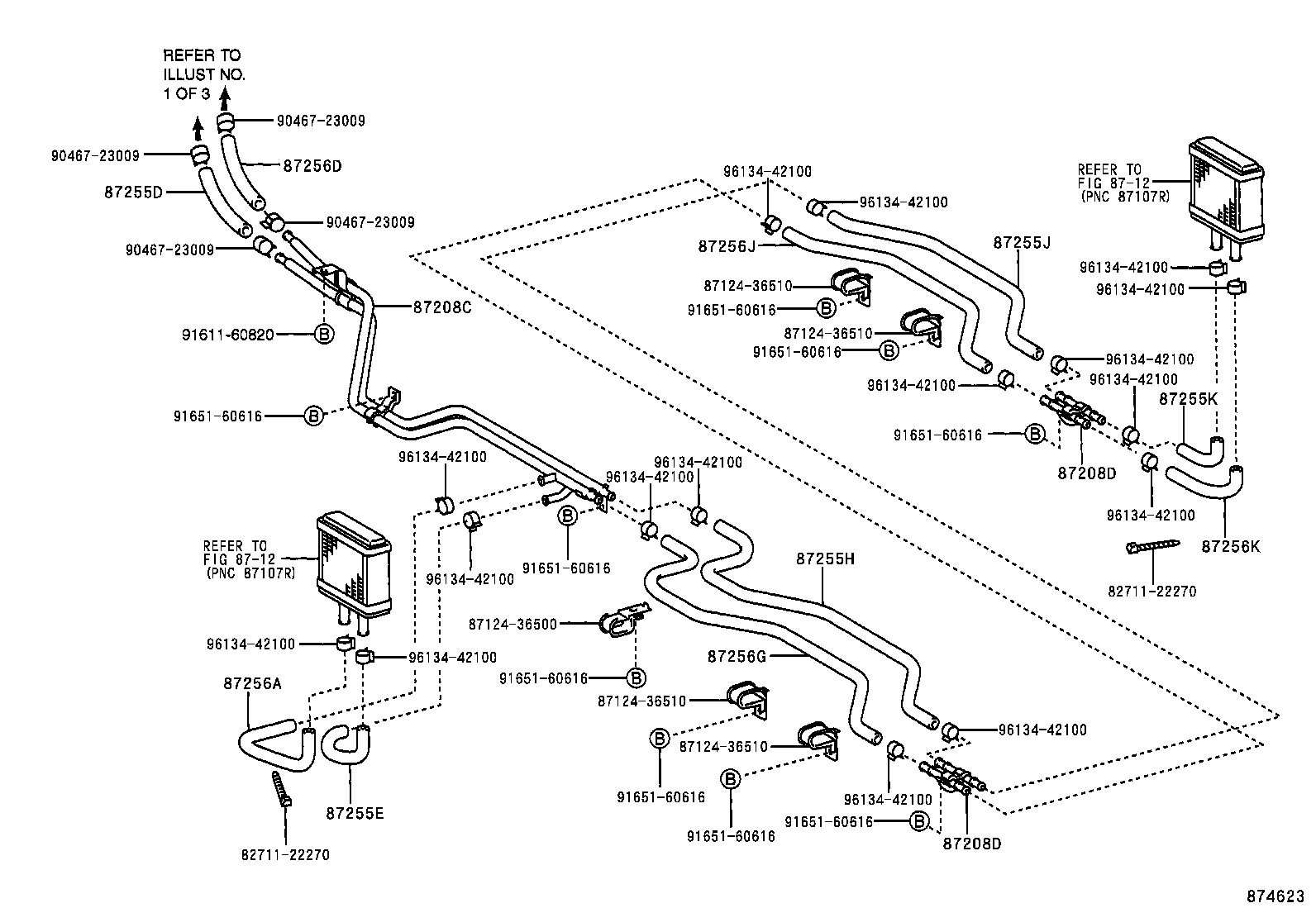

REAR ILLUST NO. 2 OF 3(0012-0310)

COASTER CHINA | HEATING AIR CONDITIONING WATER PIPING ** Std Part ** Std Part ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 87208C - PIPE SUB-ASSY, HEATER WATER, C 87208D - PIPE SUB-ASSY, HEATER WATER, D 87208D - PIPE SUB-ASSY, HEATER WATER, D 87255D - HOSE, REAR HEATER WATER INLET, D 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) 87255H - HOSE, HEATER WATER INLET, H 87255J - HOSE, HEATER WATER INLET, J 87255K - HOSE, REAR HEATER WATER INLET, K 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) 87256D - HOSE, REAR HEATER WATER OUTLET, D 87256G - HOSE, REAR HEATER WATER OUTLET, G 87256J - HOSE, REAR HEATER WATER OUTLRT, J 87256K - HOSE, REAR HEATER WATER OUTLET, K ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
