TOYOTA DYNA XZU300L-TKMMWR3 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

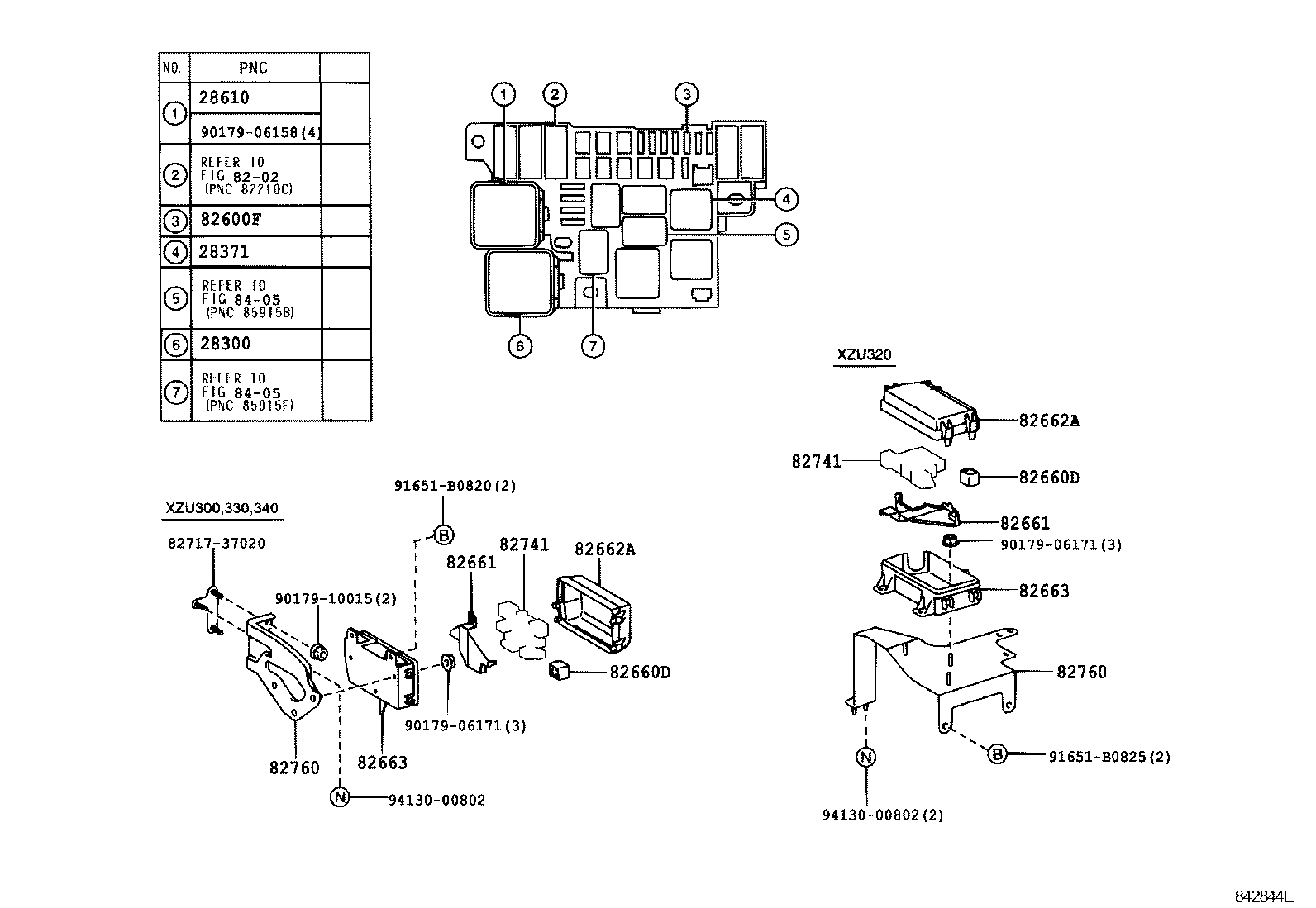

R/B NO.2 ILLUST NO. 4 OF10(9907- )XZU300,320,330,340

 DYNA |  SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371 - RELAY, IGNITION, NO.1 28610 - RELAY ASSY, GLOW PLUG ** Refer Fig 82600F - FUSE, FUSE BLOCK 82660D - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82663 - COVER, RELAY BLOCK, LOWER 82663 - COVER, RELAY BLOCK, LOWER  ** Std Part 82741 - BLOCK, ENGINE ROOM RELAY 82741 - BLOCK, ENGINE ROOM RELAY 82760 - BRACKET ASSY, RELAY BLOCK 82760 - BRACKET ASSY, RELAY BLOCK ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
