TOYOTA DYNA XZU300L-TKMMWR3 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

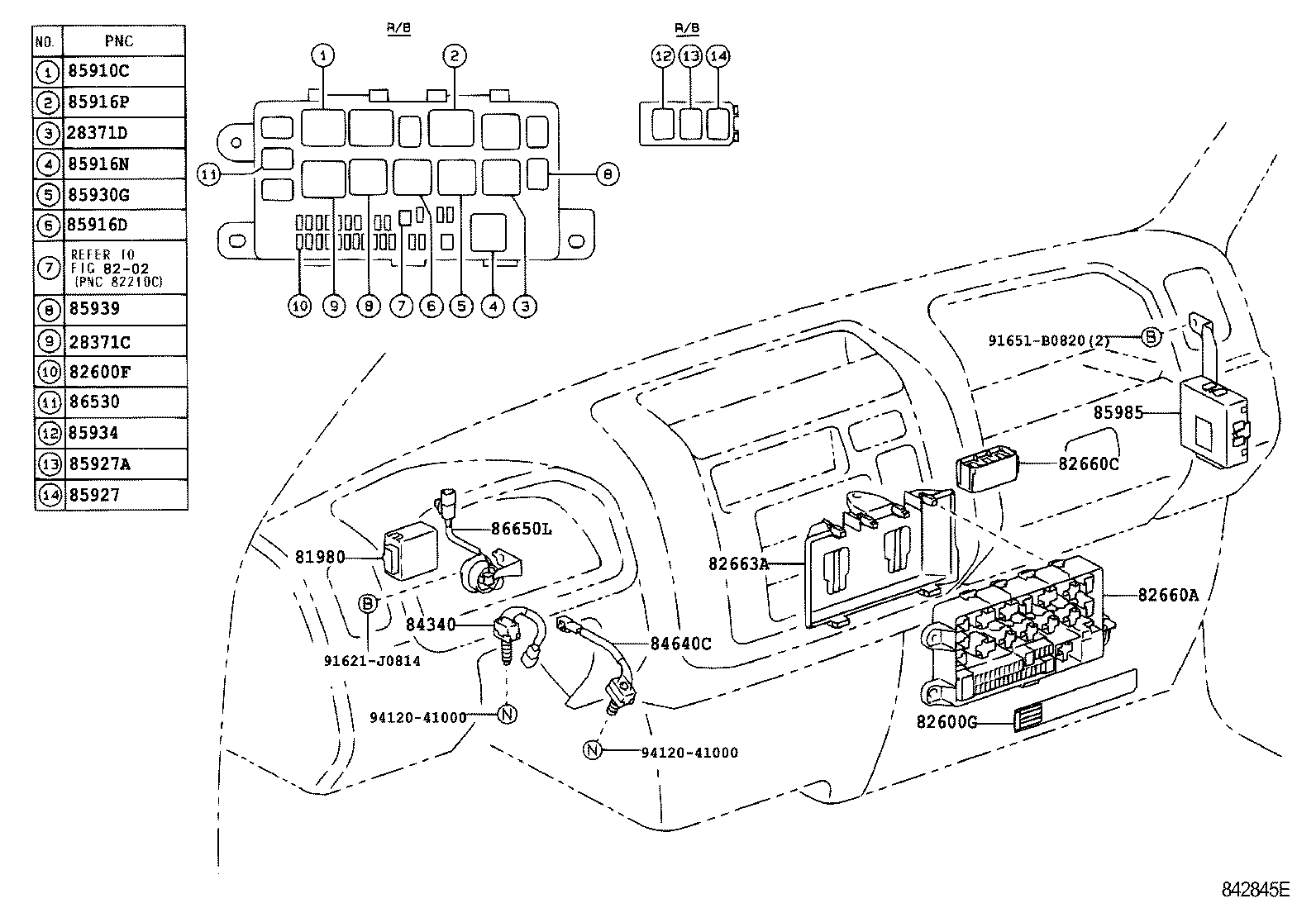

INSTRUMENT PANEL & COWL ILLUST NO. 5 OF10(9907- )XZU300,320,330,340

DYNA | SWITCH RELAY COMPUTER 28371C - RELAY, IGNITION, NO.2 28371D - RELAY, IGNITION, NO.3 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82660A - BLOCK ASSY, RELAY, COWL SIDE 82660C - BLOCK ASSY, RELAY 82663A - COVER, RELAY BLOCK, LOWER, NO.2 84340 - SWITCH ASSY, STOP LAMP 84640C - SWITCH ASSY, EXHAUST RETARDER 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85930G - RELAY, ACC 85934 - RELAY, MAGNET-CLUTCH 85939 - RELAY, POWER WINDOW 85985 - RELAY, KEY REMINDER 86530 - RELAY ASSY, HORN 86650L - BUZZER ASSY, VACUUM WARNING ** Std Part ** Std Part ** Std Part ** Std Part
