TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

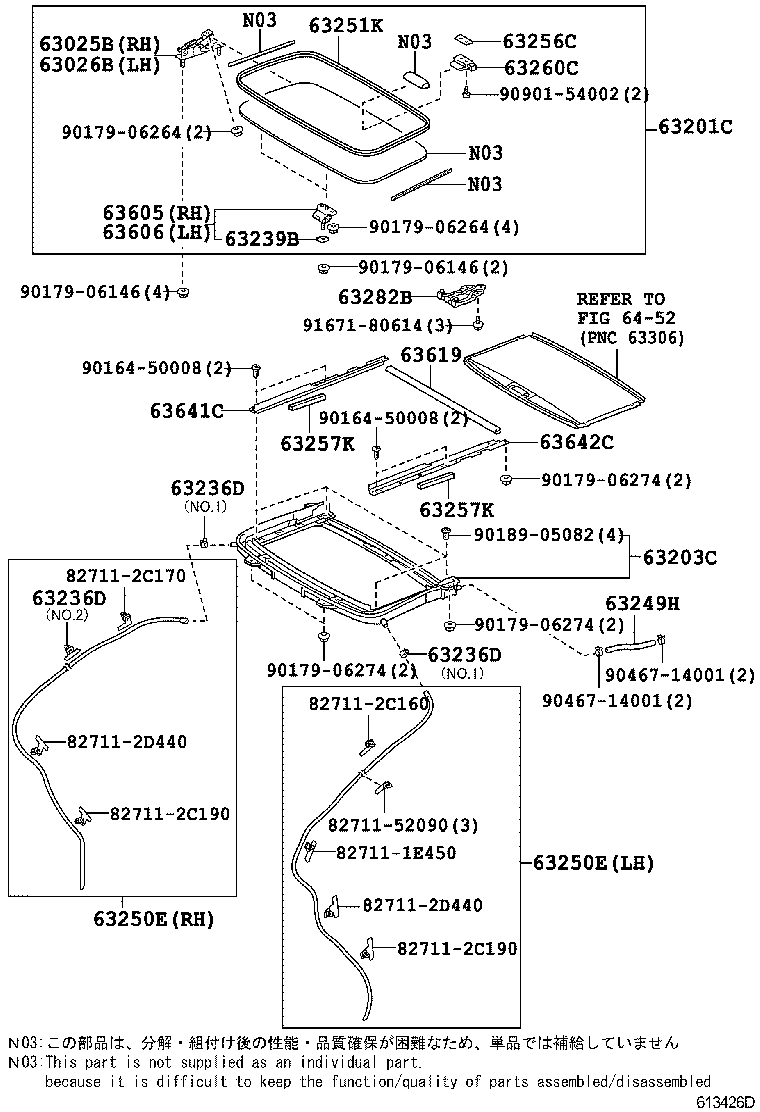

ROOF PANEL BACK PANEL

SLIDING ROOF ILLUST NO. 2 OF 3(0804- )

ALPHARD VELLFIRE HV | ROOF PANEL BACK PANEL 63025B - LINK SUB-ASSY, TILT ROOF, RH 63026B - LINK SUB-ASSY, TILT ROOF, LH 63201C - GLASS SUB-ASSY, TILT ROOF 63203C - HOUSING SUB-ASSY, TILT ROOF 63236D - CLAMP, SLIDING ROOF DRAIN HOSE 63236D - CLAMP, SLIDING ROOF DRAIN HOSE 63236D - CLAMP, SLIDING ROOF DRAIN HOSE 63239B - PAD, TILT ROOF GLASS 63249H - HOSE, SLIDING ROOF DRAIN 63250E - HOSE ASSY, TILT ROOF DRAIN 63250E - HOSE ASSY, TILT ROOF DRAIN 63251K - WEATHERSTRIP, TILT ROOF 63256C - SEAL, TILT ROOF GLASS 63257K - SEAL, TILT ROOF HOUSING 63257K - SEAL, TILT ROOF HOUSING 63260C - HANDLE ASSY, TILT ROOF LOCK 63282B - STRIKER, TILT ROOF LOCK 63605 - HINGE SUB-ASSY, TILT ROOF, RH 63606 - HINGE SUB-ASSY, TILT ROOF, LH 63619 - COVER, TILT ROOF PANEL 63641C - RAIL, SUNSHADE, NO.1 FRONT RH 63642C - RAIL, SUNSHADE, NO.1 FRONT LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
