TOYOTA ALPHARD VELLFIRE HV ATH20R-PFXQB / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK PANEL

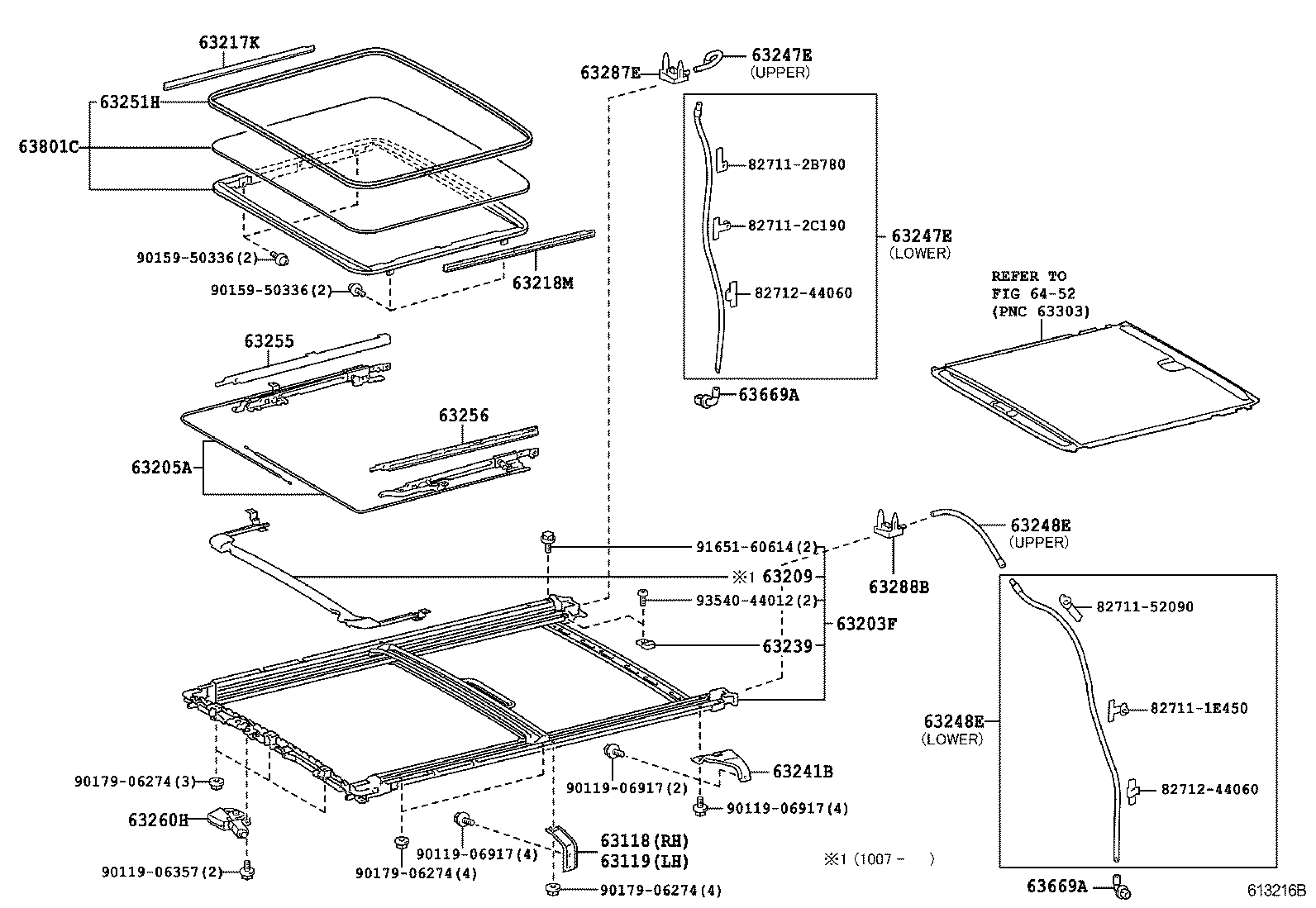

SLIDING ROOF ILLUST NO. 3 OF 3(0804- )

 ALPHARD VELLFIRE HV |  ROOF PANEL BACK PANEL 63118 - SUPPORT, ROOF PANEL, RH 63119 - SUPPORT, ROOF PANEL, LH 63203F - HOUSING SUB-ASSY, SLIDING ROOF 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR 63217K - GARNISH, SLIDING ROOF SIDE, RH 63218M - GARNISH, SLIDING ROOF SIDE, LH 63239 - STOPPER, SLIDING ROOF PANEL 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH 63251H - WEATHERSTRIP, SLIDING ROOF 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH 63260H - GEAR ASSY, SLIDING ROOF DRIVE 63287E - CAP, SLIDING ROOF HOUSING DRAIN END, RH 63288B - CAP, SLIDING ROOF HOUSING DRAIN END, LH 63669A - GROMMET, SLIDING ROOF DRAIN 63669A - GROMMET, SLIDING ROOF DRAIN 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
