TOYOTA LAND CRUISER 70 VDJ79R-TJMRYQ3 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

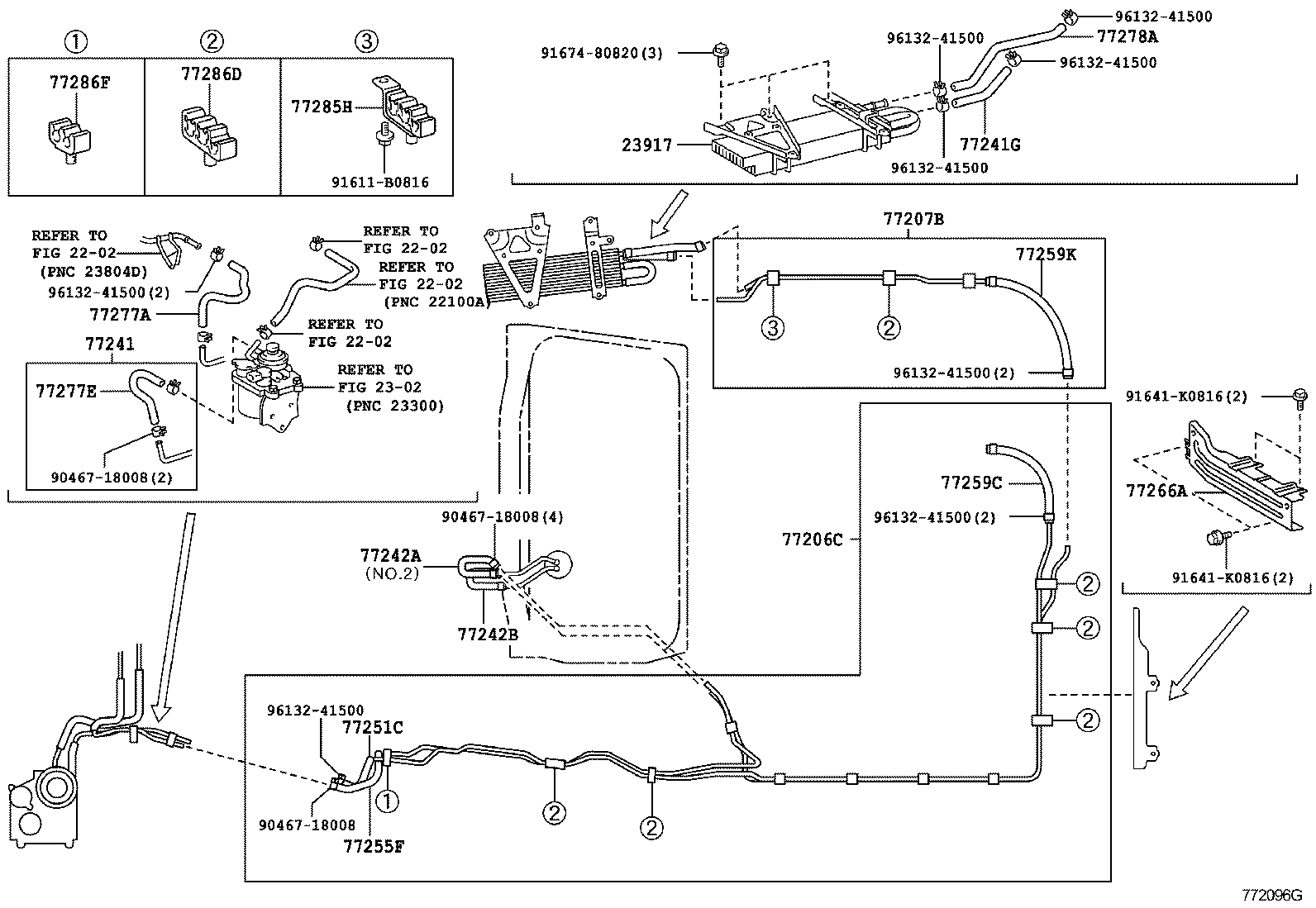

FUEL TUBE ILLUST NO. 3 OF 5(0701-1208)VDJ78,79

 LAND CRUISER 70 |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23917 - COOLER, FUEL 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 77241 - TUBE, FUEL MAIN, NO.1 77241G - HOSE, FUEL, NO.6 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77259C - HOSE, FUEL 77259K - HOSE, FUEL 77266A - PROTECTOR, FUEL TUBE, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277E - HOSE, FUEL, NO.5 (FOR RETURN TUBE, NO.1) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77285H - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
