TOYOTA LAND CRUISER 70 VDJ79R-TJMRYQ3 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

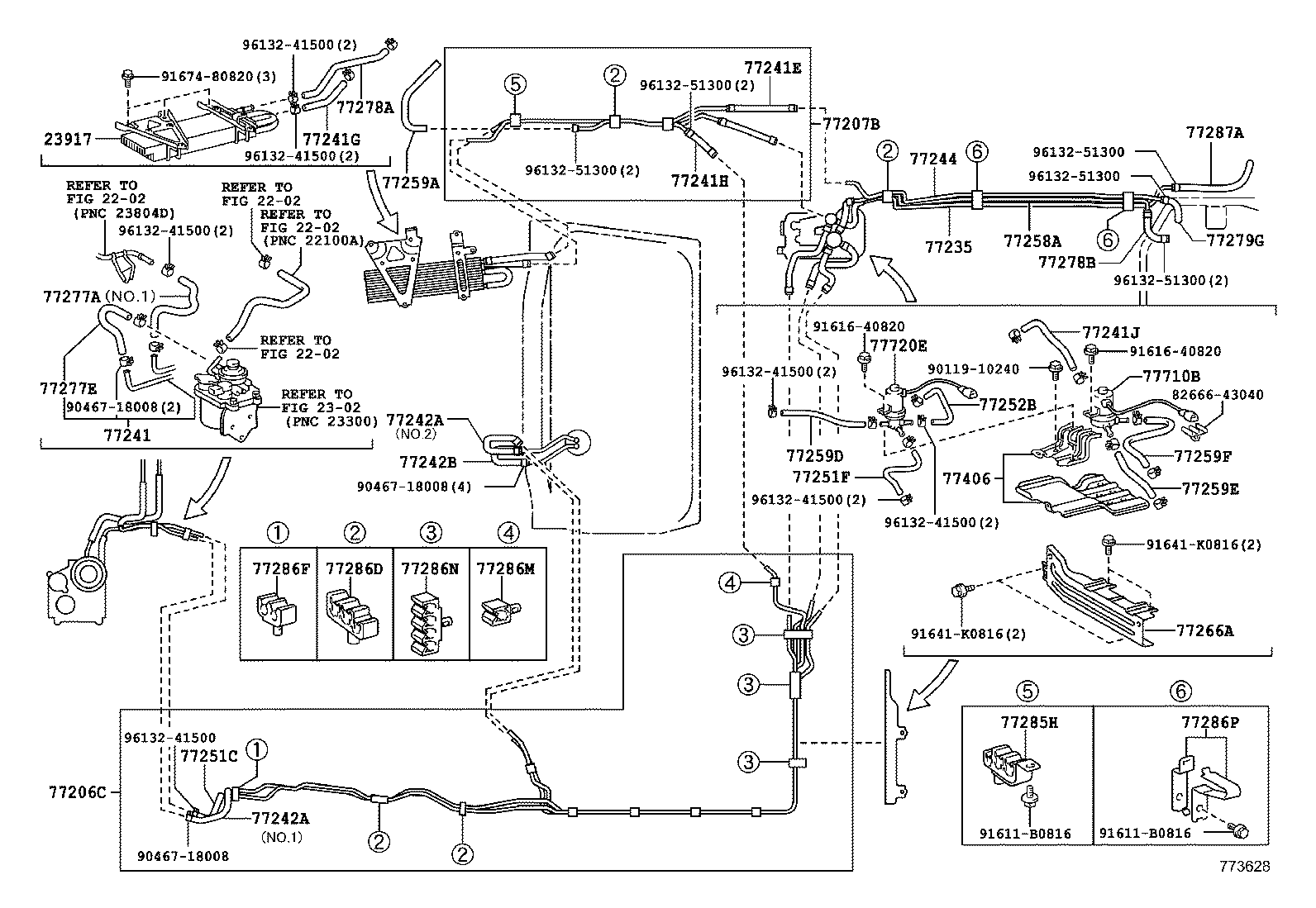

FUEL TUBE, W(FUEL SUB TANK) ILLUST NO. 3 OF 5(0701-1208)VDJ78,79

LAND CRUISER 70 | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23917 - COOLER, FUEL 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 77235 - TUBE, FUEL TANK BREATHER, NO.1 77241 - TUBE, FUEL MAIN, NO.1 77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1) 77241G - HOSE, FUEL, NO.6 77241H - HOSE, FUEL, NO.7 77241J - HOSE, FUEL, NO.8 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77244 - TUBE, FUEL MAIN, NO.4 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77251F - HOSE, FUEL 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) 77258A - TUBE, FUEL RETURN, NO.4 77259A - HOSE, FUEL(FOR BREATHER TUBE) 77259D - HOSE, FUEL, NO.1 77259E - HOSE, FUEL 77259F - HOSE, FUEL 77266A - PROTECTOR, FUEL TUBE, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277E - HOSE, FUEL, NO.5 (FOR RETURN TUBE, NO.1) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77279G - HOSE, FUEL, NO.2 77285H - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2 77286M - CLAMP, FUEL TUBE, NO.6 77286N - CLAMP, FUEL TUBE, NO.7 77286P - CLAMP, FUEL TUBE, NO.8 77287A - HOSE, FUEL 77406 - PROTECTOR SUB-ASSY, FUEL TUBE 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
