TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

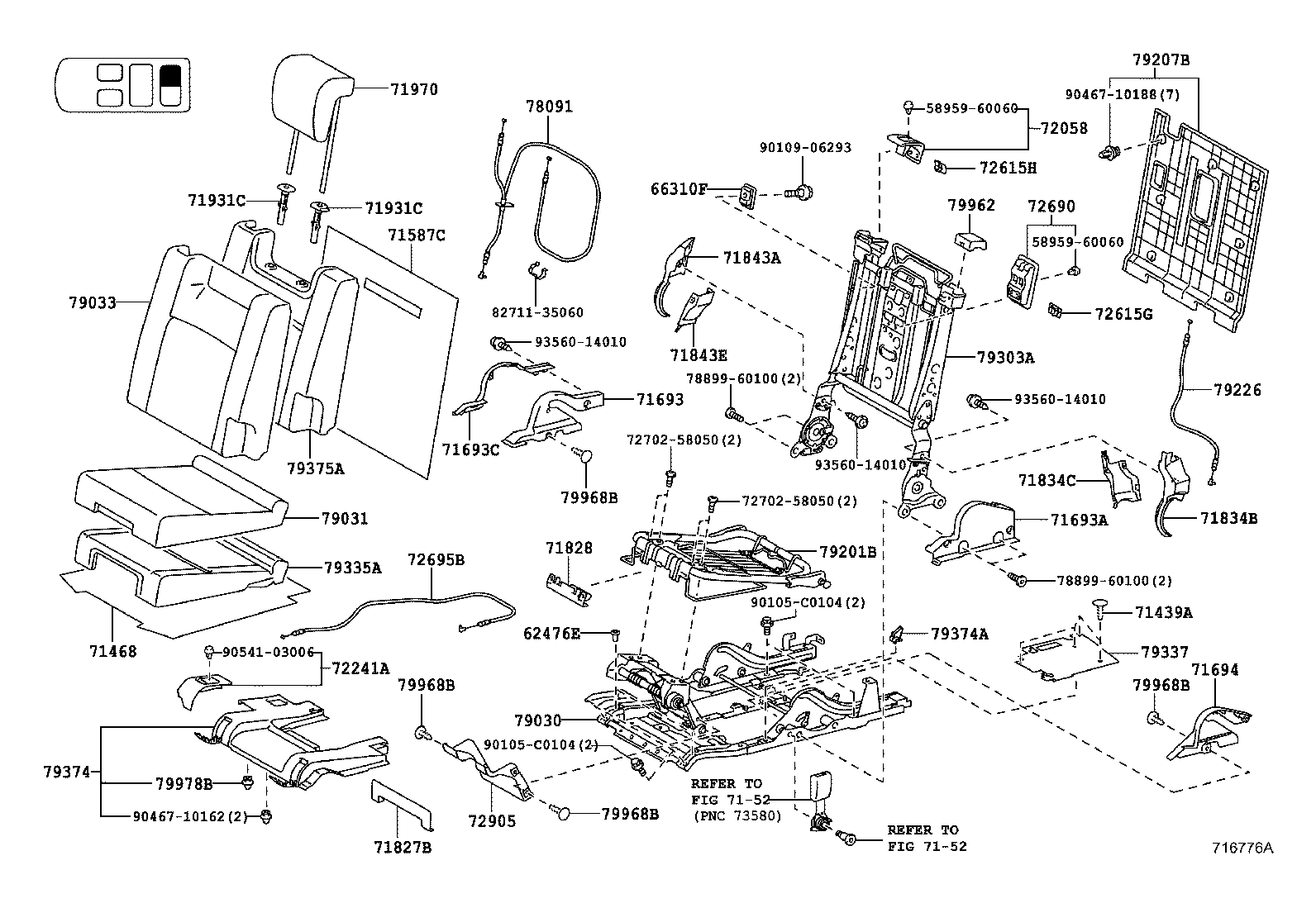

SEAT SEAT TRACK

REAR NO.2 SEAT(RH) (1005- )TX

LAND CRUISER PRADO | SEAT SEAT TRACK ** Std Part ** Std Part 62476E - CAP, REAR SEAT 66310F - HOOK ASSY, ROPE 71439A - CLIP 71468 - PROTECTOR, REAR SEAT, NO.1 (FOR SEAT CUSHION) ** Refer Fig ** Refer Fig 71587C - PROTECTOR, REAR SEAT BACK EDGE NO.2 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 71693C - COVER, REAR SEAT CUSHION HINGE, OUTER RH 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH 71827B - MOULDING, REAR SEAT CUSHION, FRONT 71828 - MOULDING,REAR SEAT BACK, CENTER 71834B - COVER, REAR SEAT RECLINING, NO.2 LH 71834C - COVER, REAR SEAT RECLINING, NO.3 LH 71843A - COVER, REAR SEAT RECLINING, NO.2 RH 71843E - COVER, REAR SEAT RECLINING, RH (FOR RH SEAT) 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71970 - HEADREST ASSY, REAR SEAT 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL 72241A - LEVER, SEAT TRACK LOCK 72615G - COVER, FRONT SEAT BACK LOCK STRIKER,NO.2 72615H - COVER, REAR SEAT BACK LOCK STRIKER, NO.1 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE 72695B - CABLE, REAR SEAT LOCK CONTROL, RH ** Std Part ** Std Part 72905 - LINK SUB-ASSY, 3RD SEAT, RH 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL ** Std Part ** Std Part 79030 - LEG ASSY, NO.3 SEAT, RH 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH 79207B - BOARD SUB-ASSY, NO.2 SEAT BACK, RH 79226 - CABLE, NO.2 SEAT LOCK 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH 79335A - PAD, NO.3 SEAT CUSHION, RH 79337 - CARPET, NO.2 SEAT CUSHION UNDER, RH 79374 - COVER, NO.3 SEAT LEG, REAR RH 79374A - COVER, NO.3 SEAT LEG, REAR RH 79375A - PAD, NO.3 SEAT BACK, RH 79962 - COVER, NO.2 SEAT BACK 79968B - CLIP 79968B - CLIP 79968B - CLIP 79968B - CLIP 79978B - CLIP, REAR SEAT LEG GARNISH COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
