TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

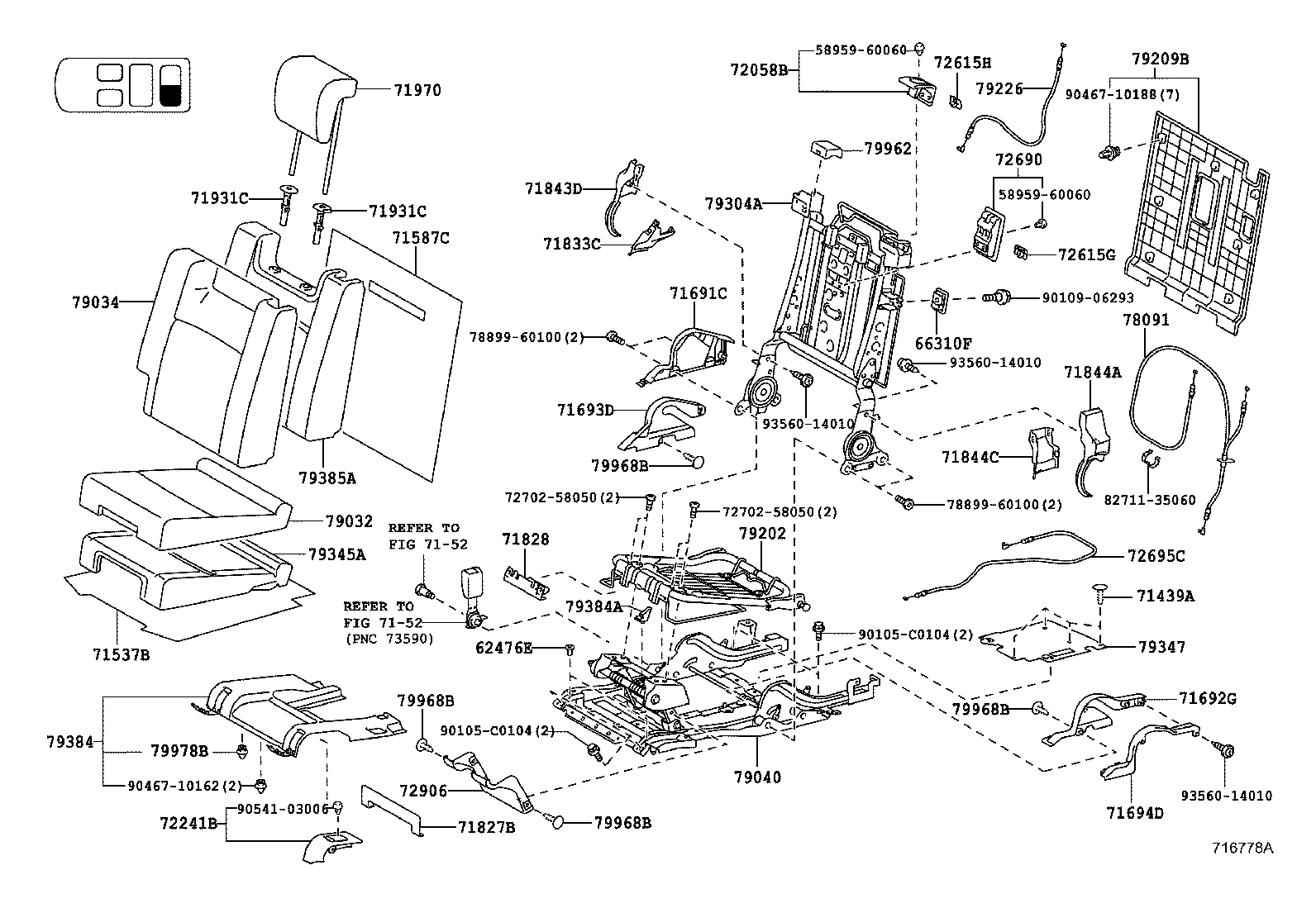

SEAT SEAT TRACK

REAR NO.2 SEAT(LH) (1005- )TX

LAND CRUISER PRADO | SEAT SEAT TRACK ** Std Part ** Std Part 62476E - CAP, REAR SEAT 66310F - HOOK ASSY, ROPE 71439A - CLIP ** Refer Fig ** Refer Fig 71537B - PROTECTOR, REAR SEAT CUSHION 71587C - PROTECTOR, REAR SEAT BACK EDGE NO.2 71691C - COVER, REAR SEAT LOCK, INNER RH 71692G - COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER LH 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH 71827B - MOULDING, REAR SEAT CUSHION, FRONT 71828 - MOULDING,REAR SEAT BACK, CENTER 71833C - COVER, REAR SEAT RECLINING, NO.2 RH 71843D - COVER, REAR SEAT RECLINING, NO.2 RH 71844A - COVER, REAR SEAT RECLINING, NO.2 LH 71844C - COVER, REAR SEAT RECLINING, NO.2 LH 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71970 - HEADREST ASSY, REAR SEAT 72058B - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH 72241B - LEVER, SEAT TRACK LOCK 72615G - COVER, FRONT SEAT BACK LOCK STRIKER,NO.2 72615H - COVER, REAR SEAT BACK LOCK STRIKER, NO.1 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE 72695C - CABLE, REAR SEAT LOCK CONTROL, LH ** Std Part ** Std Part 72906 - LINK SUB-ASSY, 3RD SEAT, LH 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL ** Std Part ** Std Part 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH 79040 - LEG ASSY, NO.3 SEAT, LH 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH 79209B - BOARD SUB-ASSY, NO.2 SEAT BACK, LH 79226 - CABLE, NO.2 SEAT LOCK 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH 79345A - PAD, NO.3 SEAT CUSHION, LH 79347 - CARPET, NO.2 SEAT CUSHION UNDER, LH 79384 - COVER, NO.3 SEAT LEG, REAR LH 79384A - COVER, NO.3 SEAT LEG, REAR LH 79385A - PAD, NO.3 SEAT BACK, LH 79962 - COVER, NO.2 SEAT BACK 79968B - CLIP 79968B - CLIP 79968B - CLIP 79968B - CLIP 79978B - CLIP, REAR SEAT LEG GARNISH COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
