TOYOTA LAND CRUISER VAN FJ62V-MRC / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

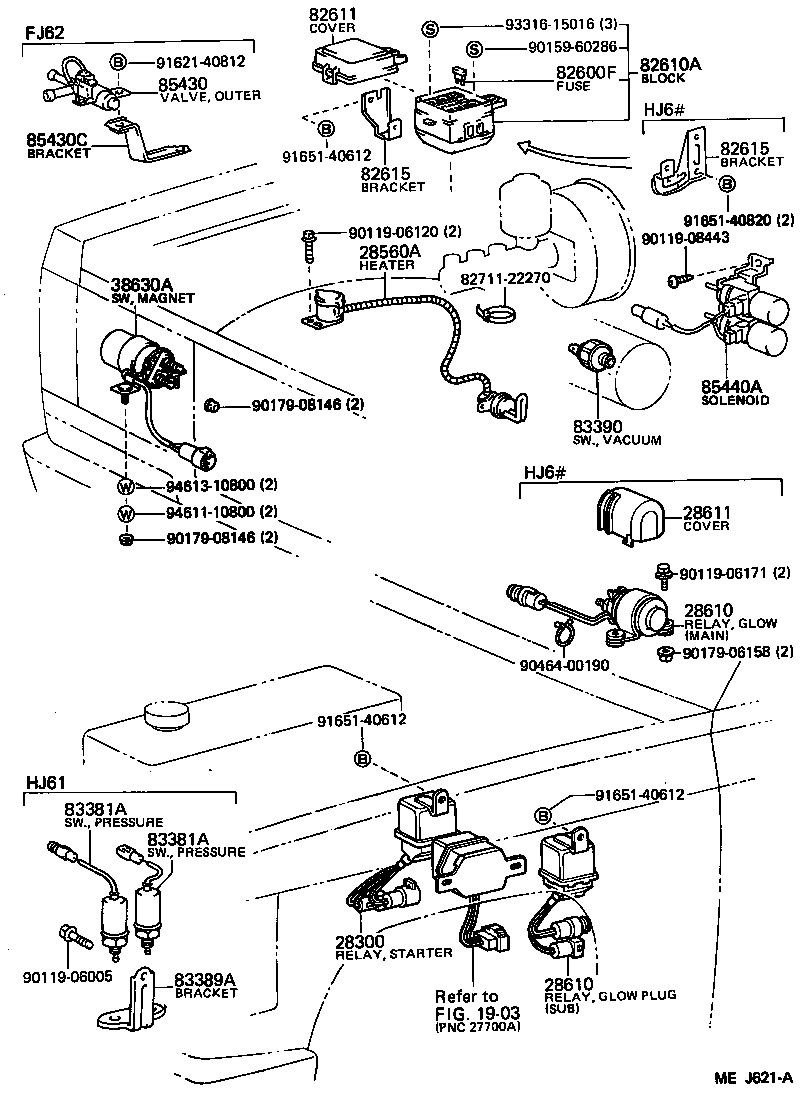

ILLUST NO. 2 OF 6(8708- )CBR,DSL,TD

LAND CRUISER VAN | SWITCH RELAY COMPUTER ** Refer Fig 28300 - RELAY ASSY, STARTER 28560A - BLOCK, HEATER 28610 - RELAY ASSY, GLOW PLUG 28610 - RELAY ASSY, GLOW PLUG 28611 - COVER, GLOW PLUG RELAY 38630A - SWITCH ASSY, MAGNET 82600F - FUSE, FUSE BLOCK 82610A - BLOCK ASSY, FUSE 82611 - COVER, FUSE BLOCK 82615 - BRACKET, FUSE 82615 - BRACKET, FUSE ** Std Part 83381A - SWITCH, PRESSURE 83381A - SWITCH, PRESSURE 83389A - BRACKET, PRESSURE SWITCH 83390 - SWITCH ASSY, VACUUM WARNING 85430 - VALVE, OUTER VENT CONTROL 85430C - BRACKET, OUTER VENT CONTROL VALVE 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
