TOYOTA LAND CRUISER VAN FJ62V-MRC / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

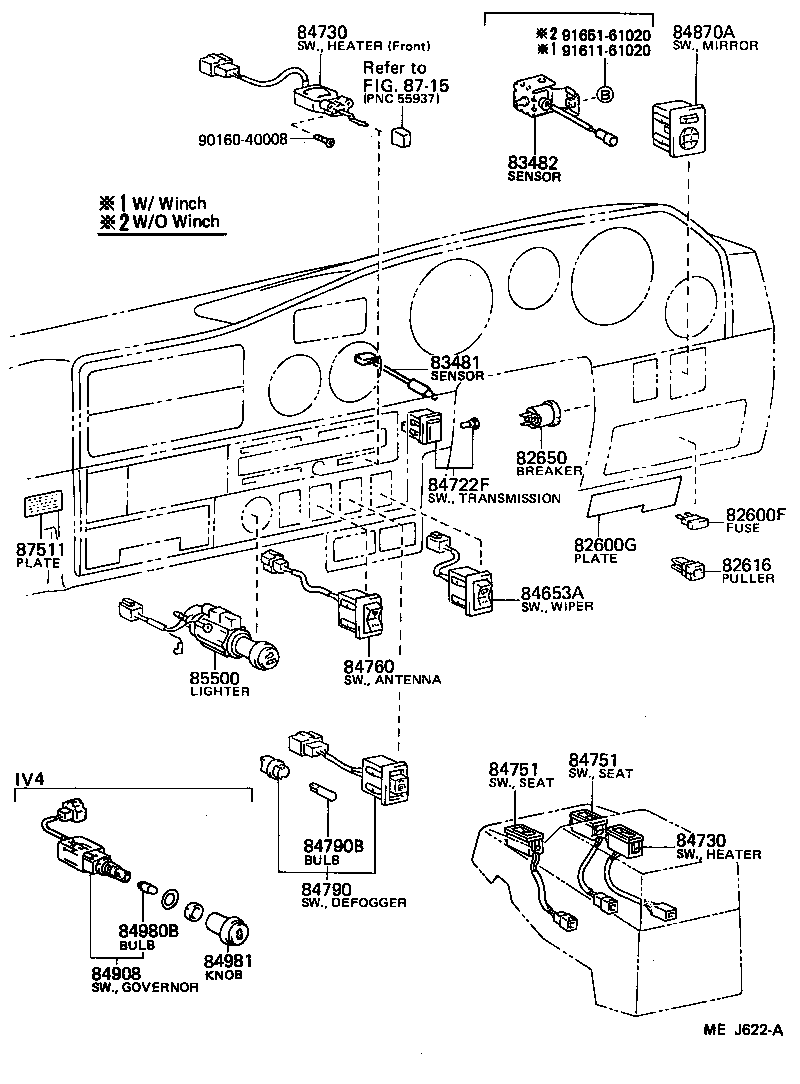

ILLUST NO. 3 OF 6(8708- )

LAND CRUISER VAN | SWITCH RELAY COMPUTER 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82616 - PULLER, FUSE 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 83481 - SENSOR, INNER AMBIENT TEMPERATURE 83482 - SENSOR, OUTER AMBIENT TEMPERATURE 84653A - SWITCH, REAR WIPER 84722F - SWITCH, TRANSMISSION CONTROL 84730 - SWITCH ASSY, HEATER BLOWER 84730 - SWITCH ASSY, HEATER BLOWER 84751 - SWITCH, SEAT HEATER 84751 - SWITCH, SEAT HEATER 84760 - SWITCH ASSY, ANTENNA 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) 84870A - SWITCH ASSY, OUTER MIRROR 84908 - SWITCH SUB-ASSY, GOVERNOR CONTROL 84980B - BULB, GOVERNOR CONTROL SWITCH 84981 - KNOB, GOVERNOR CONTROL SWITCH 85500 - LIGHTER ASSY, CIGARETTE ** Refer Fig 87511 - PLATE, SEAT HEATER CAUTION ** Std Part ** Std Part ** Std Part
