TOYOTA NOAH VOXY ZRR70W-APXTP / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

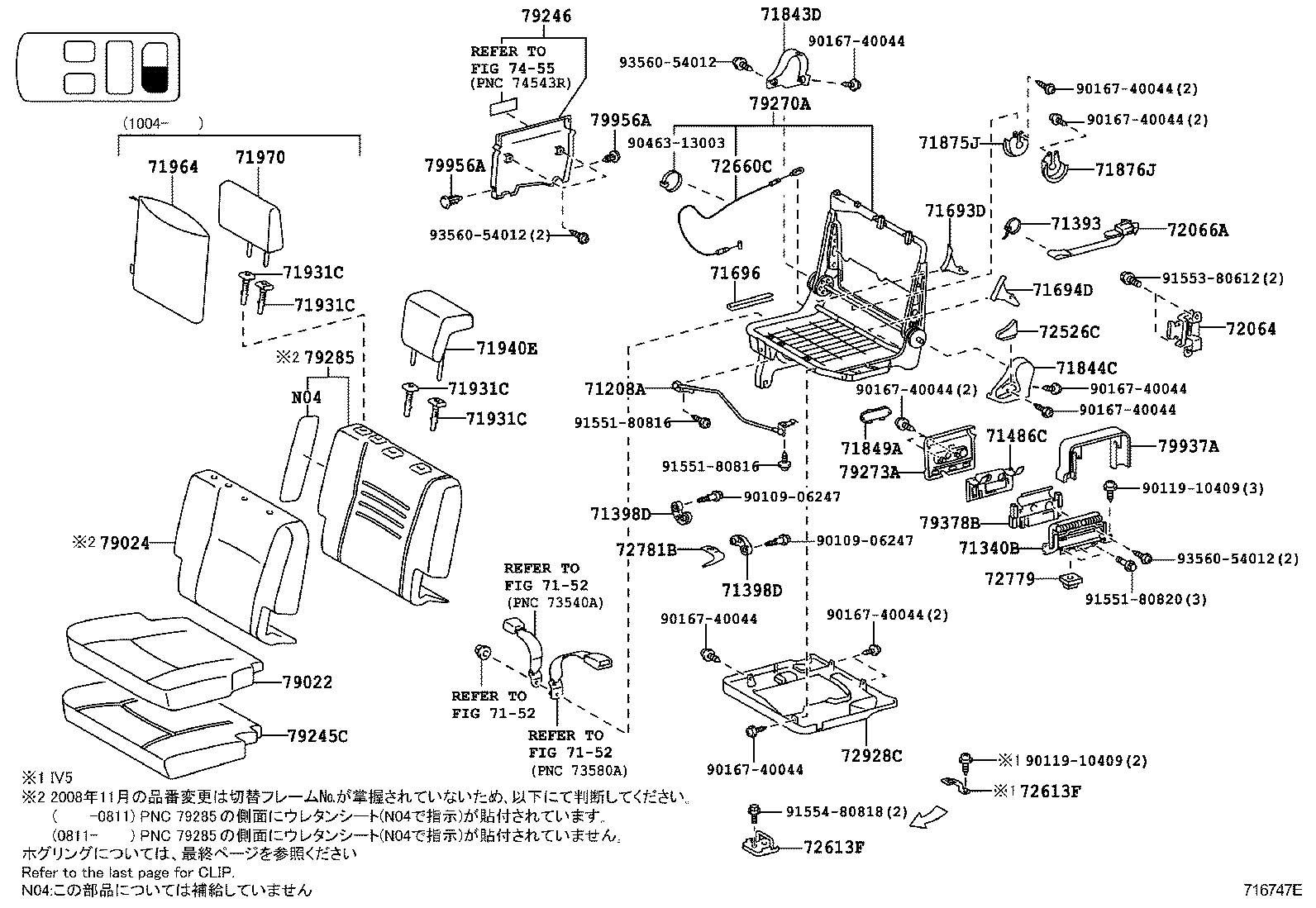

SEAT SEAT TRACK

リヤ NO.2 シート (LH) (0706- )07S,08S

 NOAH VOXY |  SEAT SEAT TRACK 71208A - WIRE SUB-ASSY, REAR SEAT CUSHION 71340B - HINGE ASSY, REAR NO.2 SEAT, LH 71393 - BAND, REAR SEAT CUSHION 71398D - GUIDE, REAR SEAT CUSHION SUPPORT 71398D - GUIDE, REAR SEAT CUSHION SUPPORT 71486C - COVER, REAR SEAT HINGE, LH ** Refer Fig ** Refer Fig ** Refer Fig 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH 71696 - PROTECTOR, REAR SEAT, NO.2 71843D - COVER, REAR SEAT RECLINING, NO.2 RH 71844C - COVER, REAR SEAT RECLINING, NO.2 LH 71849A - CAP, SEAT ADJUSTER COVER, LH 71875J - COVER, RECLINING ADJUSTER INSIDE, RH 71876J - COVER, RECLINING ADJUSTER INSIDE, LH 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71940E - HEADREST ASSY, NO.2 SEAT 71964 - CASE, REAR SEAT HEADREST 71970 - HEADREST ASSY, REAR SEAT 72064 - HOOK SUB-ASSY, REAR SEAT, LH 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH 72613F - STRIKER, REAR SEAT LOCK, REAR OUTER 72613F - STRIKER, REAR SEAT LOCK, REAR OUTER 72660C - CABLE ASSY, REAR NO.2 SEAT LOCK, LH 72779 - GUIDE, REAR SEAT HINGE PAWL 72781B - SPRINT, REAR SEAT  PLATE 72928C - COVER, REAR SEAT CUSHION UNDER, LH ** Refer Fig 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH 79245C - PAD, NO.2 SEAT CUSHION, LH 79246 - COVER, NO.2 SEAT LEG, NO.1 79270A - SPRING ASSY, NO.2 SEAT CUSHION, LH 79273A - COVER, NO.2 SEAT HINGE, NO.2 79285 - PAD, NO.2 SEAT BACK, LH 79378B - COVER, NO.3 SEAT CUSHION HINGE, LH 79937A - COVER, REAR SEAT LEG, NO.2 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
