TOYOTA NOAH VOXY ZRR70W-APXTP / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

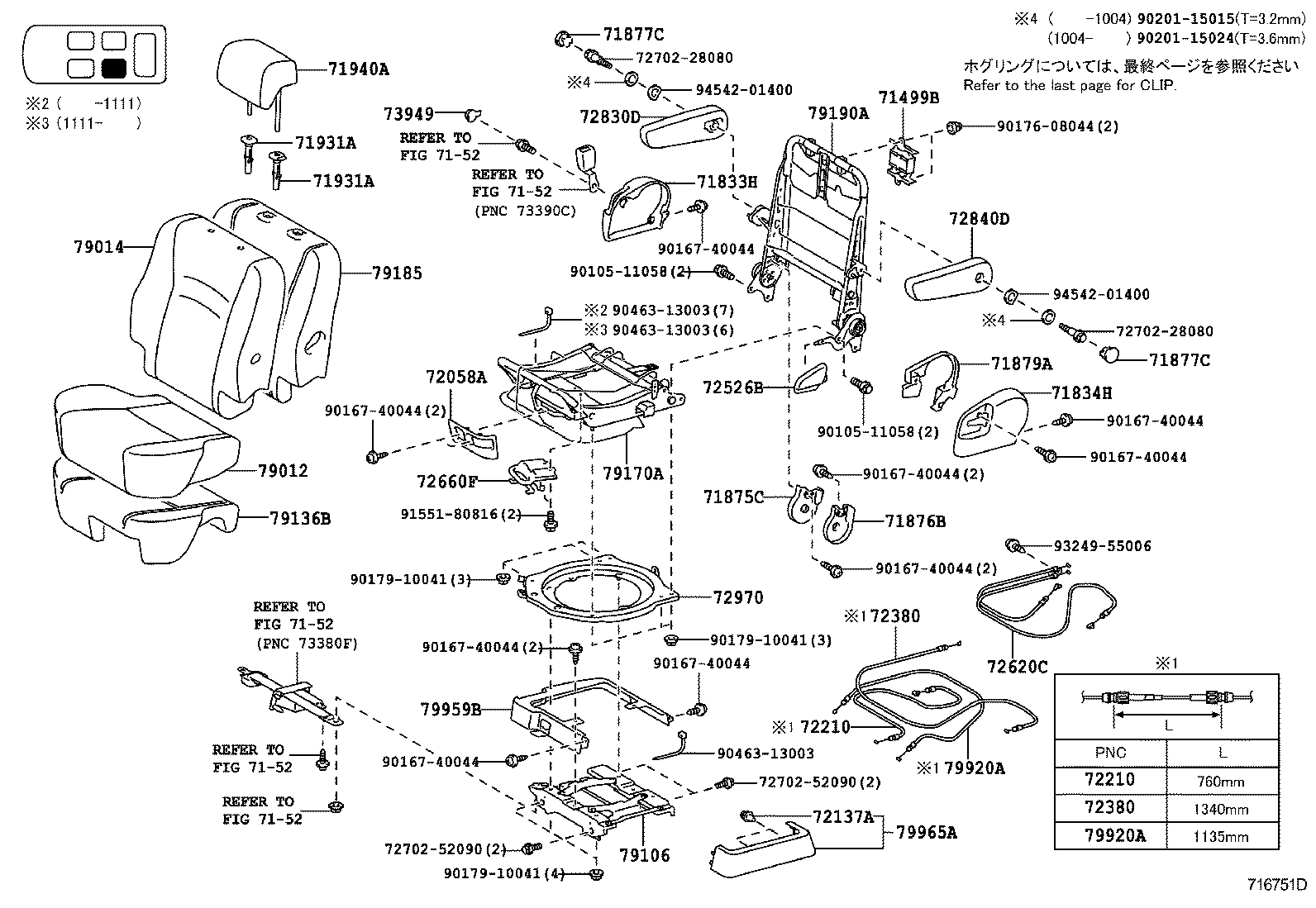

SEAT SEAT TRACK

ﾘﾔ NO.1 ｼｰﾄ (LH) (1004- )07S

NOAH VOXY | SEAT SEAT TRACK 71499B - DAMPER, SEAT CUSHION SPRING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71833H - COVER, REAR SEAT RECLINING, NO.1 RH 71834H - COVER, REAR SEAT RECLINING, NO.1 LH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71877C - COVER, REAR SEAT ARMREST HOLE LH 71877C - COVER, REAR SEAT ARMREST HOLE LH 71879A - COVER, REAR SEAT RECLINING, INNER LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH 72137A - CLIP (FOR SEAT TRACK COVER) 72210 - CABLE ASSY, SEAT TRACK CONTROL 72210 - CABLE ASSY, SEAT TRACK CONTROL 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK 72660F - LOCK ASSY, REAR SEAT, LH ** Std Part ** Std Part ** Std Part ** Std Part 72830D - ARMREST ASSY, REAR SEAT, RH 72840D - ARMREST ASSY, REAR SEAT, LH 72970 - TABLE ASSY, REAR SEAT TURN, LH 73949 - CAP 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH 79106 - LEG SUB ASSY, NO.1 SEAT, LH 79136B - PAD, NO.1 SEAT CUSHION, LH 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH 79185 - PAD, NO.1 SEAT BACK, LH 79190A - SPRING ASSY, NO.1 SEAT BACK, LH 79920A - CABLE ASSY, REAR SEAT TURN, NO.2 79920A - CABLE ASSY, REAR SEAT TURN, NO.2 79959B - COVER, REAR SEAT LEG, LH 79965A - COVER, REAR SEAT LEG SIDE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
