LEXUS GS30 35 43 460 GRS195L-BETQHA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

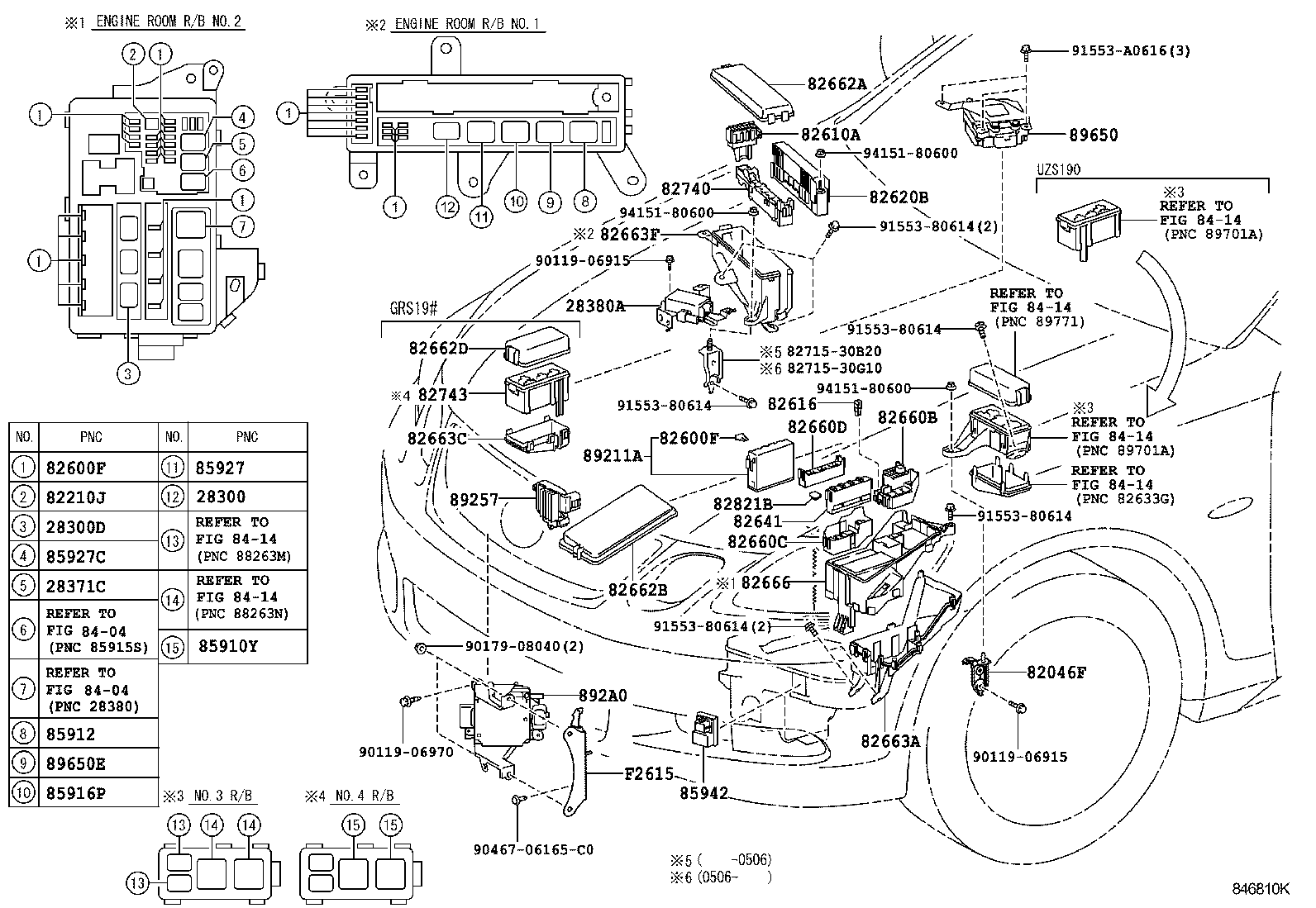

ENGINE ROOM ILLUST NO. 2 OF 7(0501-0709)

GS30 35 43 460 | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28300D - RELAY, STARTER CUT 28371C - RELAY, IGNITION, NO.2 28380A - RESISTER, FUEL PUMP 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82610A - BLOCK ASSY, FUSE 82616 - PULLER, FUSE 82620B - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662D - COVER, RELAY BLOCK, UPPER, NO.4 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663C - COVER, RELAY BLOCK LOWER, NO.4 82663F - COVER, RELAY BLOCK, LOWER, NO.8 82666 - HOLDER, CONNECTOR ** Std Part ** Std Part 82740 - BLOCK ASSY, ENGINE ROOM RELAY 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 82821B - COVER, CONNECTOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85910Y - RELAY, REAR HEATER 85912 - RELAY, DEFOGGER 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927C - RELAY, COOLING FAN, NO.4 85942 - RELAY, HEADLAMP CLEANER CONTROL 89211A - COMPUTER, MULTIPLEX NETWORK BODY 89257 - COMPUTER, COOLING FAN 892A0 - COMPUTER ASSY, FRONT ACTIVE STABILIZER CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89650E - RELAY, ELECTRIC POWER STEERING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part F2615 - BRACKET, FRONT ACTIVE STABILIZER COMPUTER
