LEXUS GS30 35 43 460 GRS195L-BETQHA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

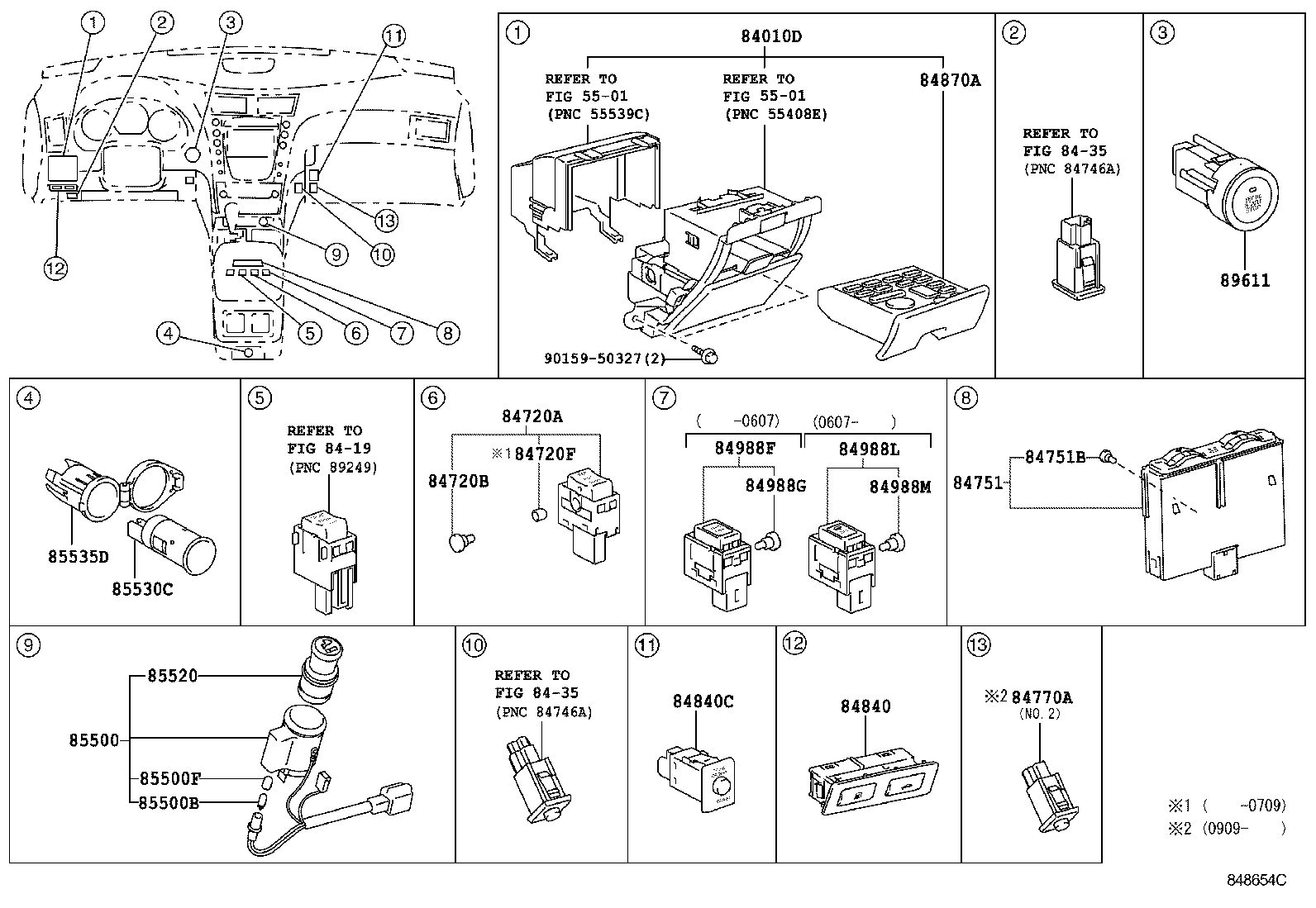

INSTRUMENT PANEL ILLUST NO. 4 OF 7(0501- )

 GS30 35 43 460 |  SWITCH RELAY COMPUTER ** Refer Fig ** Refer Fig 84010D - CONTROL & PANEL ASSY, INTEGRATION ** Refer Fig ** Refer Fig ** Refer Fig 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 84720B - BULB (FOR PATTERN SELECT SWITCH) 84720F - CAP, PATTERN SELECT SWITCH 84751 - SWITCH, SEAT HEATER 84751B - BULB, SEAT HEATER SWITCH 84770A - SWITCH ASSY, PRECRASH SYSTEM CANCEL 84840 - SWITCH ASSY, LUGGAGE DOOR OPENING 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL 84870A - SWITCH ASSY, OUTER MIRROR 84988F - SWITCH, TRACTION CONTROL 84988G - BULB, TRACTION CONTROL SWITCH 84988L - SWITCH, VSC OFF 84988M - BULB, VSC OFF SWITCH 85500 - LIGHTER ASSY, CIGARETTE 85500B - BULB, CIGARETTE LIGHTER 85500F - CAP, CIGARETTE LIGHTER BULB 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85530C - SOCKET ASSY, POWER OUTLET, CENTER 85535D - COVER, POWER OUTLET SOCKET, CENTER 89611 - SWITCH, PUSH START  ** Std Part
