LEXUS RX350 450H GGL15L-CWTGKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

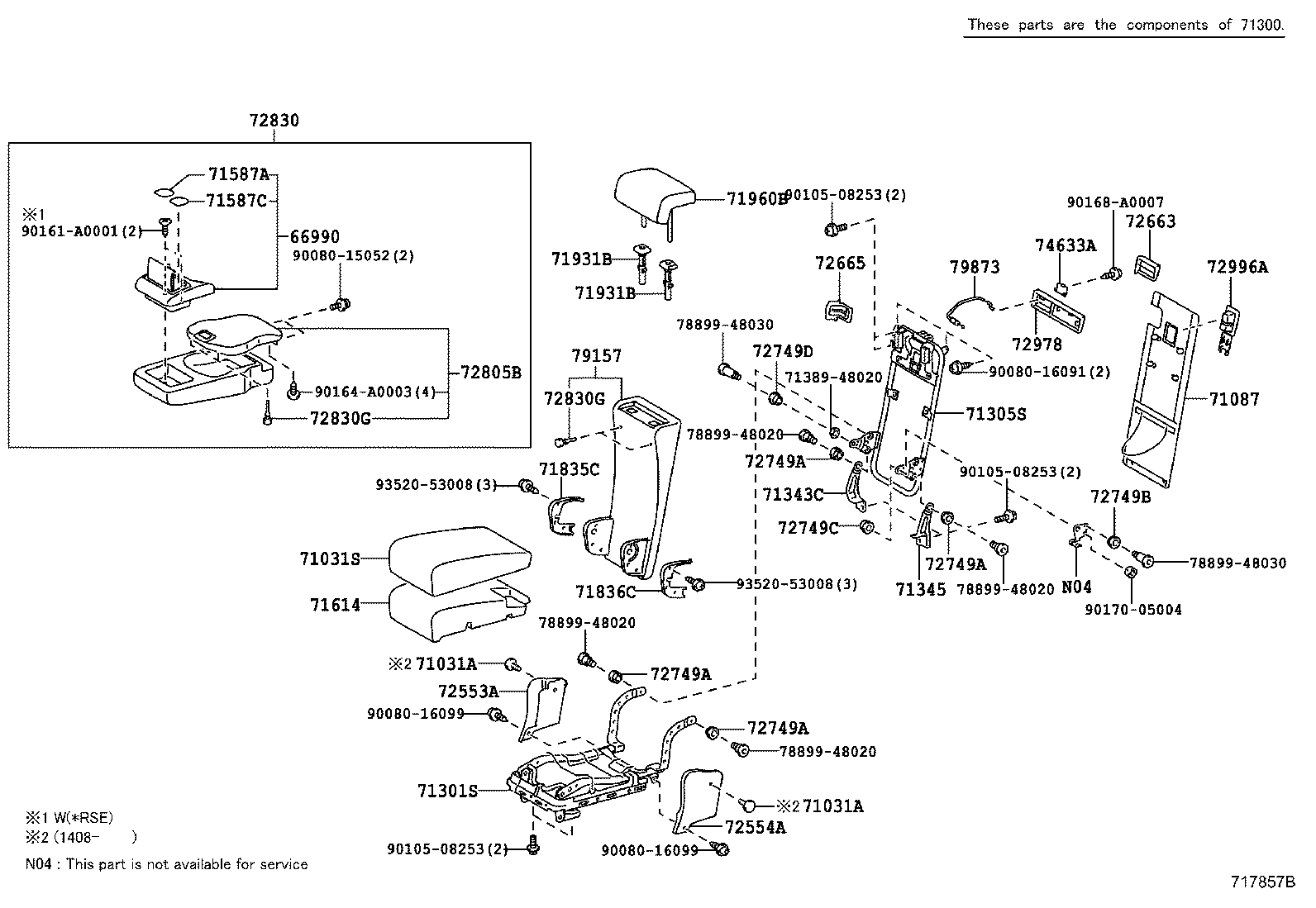

REAR SEAT SEAT TRACK

CENTER ILLUST NO. 3 OF 4(1204- )

RX350 450H | REAR SEAT SEAT TRACK 66990 - HOLDER ASSY, CUP 71031A - CLIP, CENTER SEAT CUSHION 71031A - CLIP, CENTER SEAT CUSHION 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION 71087 - BOARD SUB-ASSY, REAR SEAT BACK 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION 71305S - FRAME SUB-ASSY, CENTER SEAT BACK 71343C - HINGE, REAR SEAT BACK, CENTER 71345 - HINGE, REAR SEAT BACK 71587A - PROTECTOR, REAR SEAT BACK EDGE 71587C - PROTECTOR, REAR SEAT BACK EDGE NO.2 71614 - PAD, REAR SEAT CUSHION, CENTER 71835C - MOULDING, REAR SEAT BACK, RH 71836C - MOULDING, REAR SEAT BACK, LH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71960B - HEADREST ASSY, REAR SEAT, CENTER 72553A - PROTECTOR, RECLINING COVER, RH 72554A - PROTECTOR, RECLINING COVER, LH 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 72665 - COVER, REAR SEAT BACK LOCK, RH 72749A - SPACER, REAR SEAT RECLINING 72749A - SPACER, REAR SEAT RECLINING 72749A - SPACER, REAR SEAT RECLINING 72749A - SPACER, REAR SEAT RECLINING 72749B - SPACER, REAR SEAT RECLINING, NO.1 72749C - SPACER, REAR SEAT RECLINING, NO.2 72749D - SPACER, REAR SEAT RECLINING, NO.3 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST 72830 - ARMREST ASSY, REAR SEAT, CENTER 72830G - CUSHION 72830G - CUSHION 72978 - COVER, NO.2 CENTER SEAT BACK 72996A - COVER, REAR SEAT BACK 74633A - CAP, COAT HOOK ** Std Part ** Std Part ** Std Part ** Std Part 79157 - COVER, NO.1 SEAT BACK 79873 - WIRE, FOLD SEAT BACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
