LEXUS RX350 450H GGL15L-CWTGKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

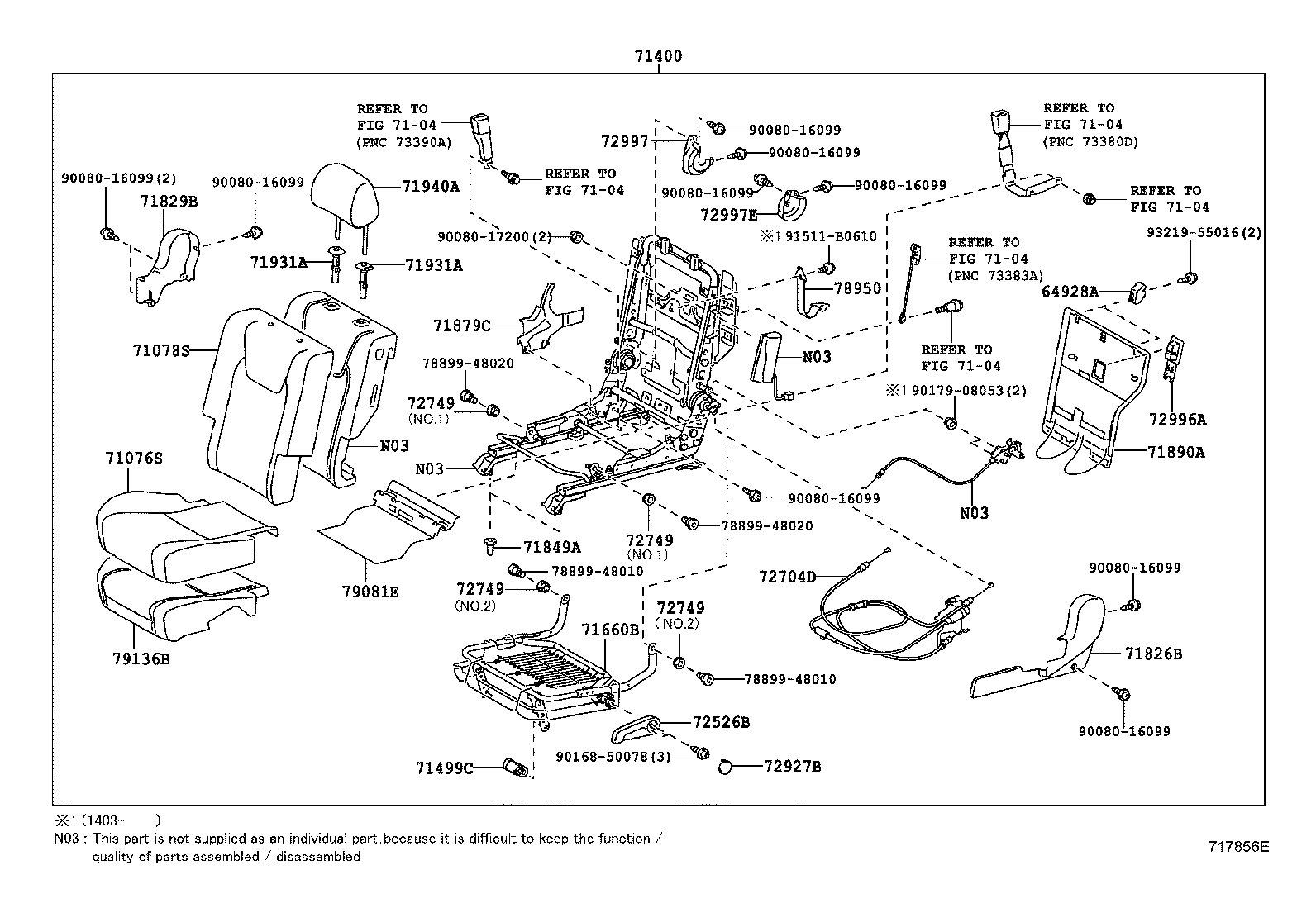

REAR SEAT SEAT TRACK

LH ILLUST NO. 4 OF 4(1204- )

RX350 450H | REAR SEAT SEAT TRACK 64928A - HOLDER, TONNEAU COVER HOOK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71400 - SEAT ASSY, REAR LH 71499C - DAMPER, REAR SEAT CUSHION SPRING 71660B - SPRING ASSY, REAR SEAT CUSHION, LH 71826B - MOULDING, REAR SEAT CUSHION, LH 71829B - MOULDING, REAR SEAT CUSHION, REAR LH 71849A - CAP, SEAT ADJUSTER COVER, LH 71879C - COVER, REAR SEAT RECLINING, INNER LH 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72927B - COVER, REAR SEAT CUSHION UNDER 72996A - COVER, REAR SEAT BACK 72997 - COVER, REAR SEAT BACK, LH 72997E - COVER, REAR SEAT SHIELD INNER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 79081E - COVER, REAR SEAT, NO.3 79136B - PAD, NO.1 SEAT CUSHION, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
