TOYOTA MODEL F YR20RG-MQW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SEAT SEAT TRACK

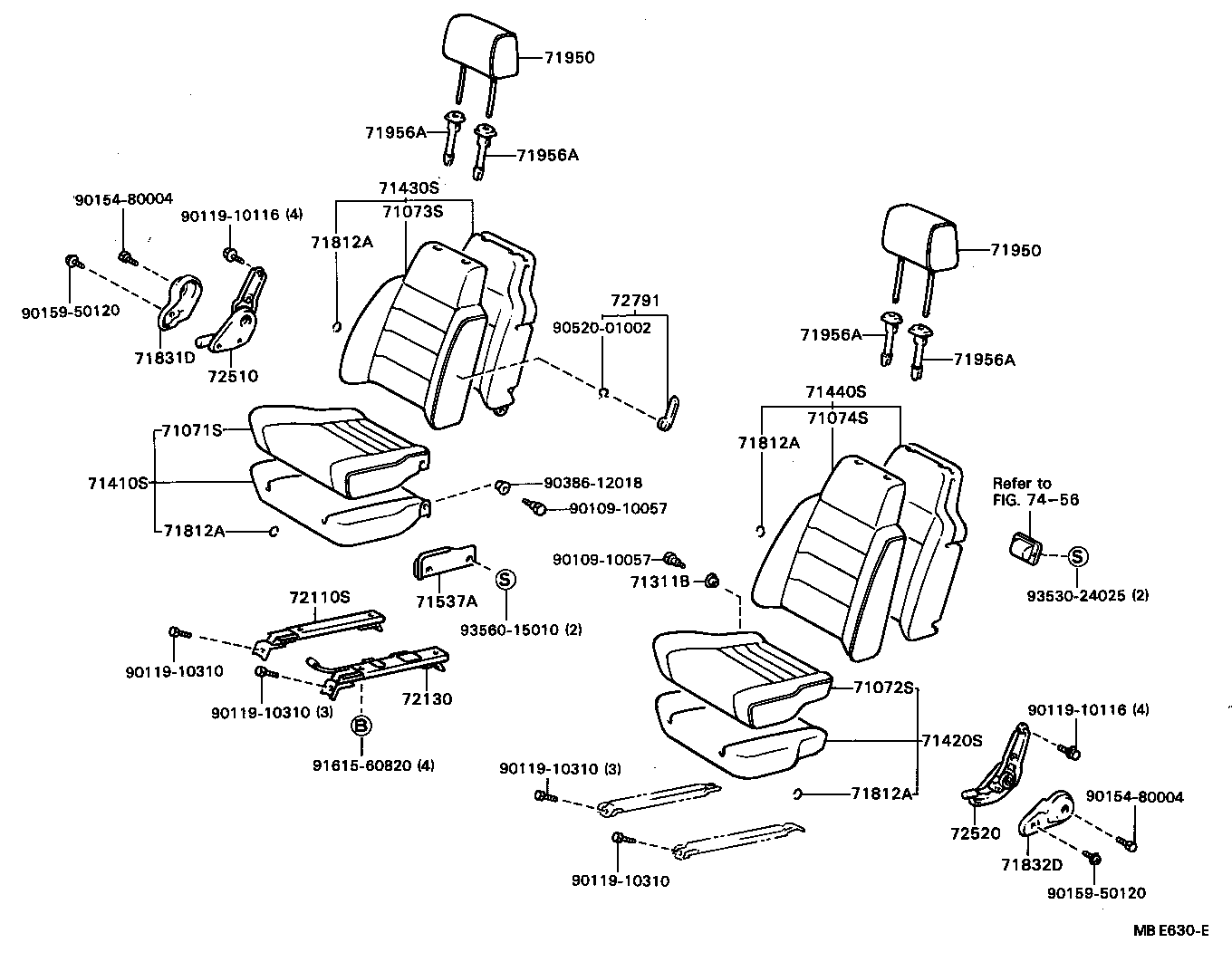

ILLUST NO. 1 OF 3(8211-8408)RHD

MODEL F | SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71311B - BUSH (FOR FRONT SEAT HINGE PIN) 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71537A - PROTECTOR, FRONT SEAT CUSHION 71812A - RING, HOG, SMALL (FOR FRONT SEAT) 71812A - RING, HOG, SMALL (FOR FRONT SEAT) 71812A - RING, HOG, SMALL (FOR FRONT SEAT) 71812A - RING, HOG, SMALL (FOR FRONT SEAT) 71831D - COVER, FRONT SEAT HINGE, RH 71832D - COVER, FRONT SEAT HINGE, LH 71950 - HEADREST ASSY, FRONT SEAT 71950 - HEADREST ASSY, FRONT SEAT 71956A - SUPPORT, FRONT SEAT HEADREST 71956A - SUPPORT, FRONT SEAT HEADREST 71956A - SUPPORT, FRONT SEAT HEADREST 71956A - SUPPORT, FRONT SEAT HEADREST 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) 72130 - TRACK ASSY, RH SEAT, INNER 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH 72791 - LEVER, LUMBAR SUPPORT ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
