TOYOTA MODEL F YR20RG-MQW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SEAT SEAT TRACK

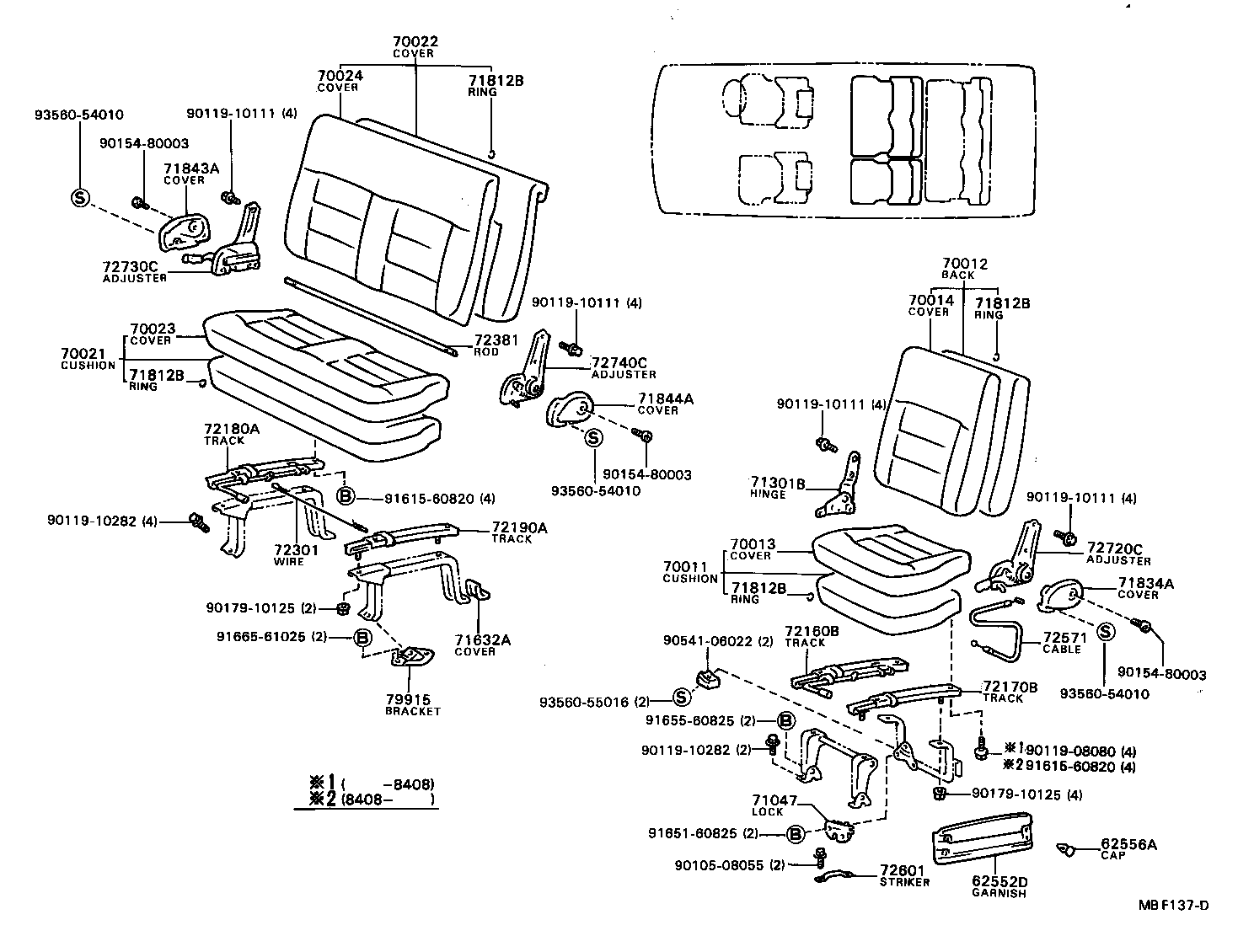

ILLUST NO. 2 OF 3(8211-8408)RHD

MODEL F | SEAT SEAT TRACK 62552D - GARNISH, REAR SEAT SIDE, LH 62556A - CAP, REAR SEAT SIDE GARNISH 70011 - CUSHION ASSY, NO.1 SEAT 70012 - BACK ASSY, NO.1 SEAT 70013 - COVER ASSY, NO.1 SEAT CUSHION 70014 - COVER ASSY, NO.1 SEAT BACK 70021 - CUSHION ASSY, NO.2 SEAT 70022 - BACK ASSY, NO.2 SEAT 70023 - COVER ASSY, NO.2 SEAT CUSHION 70024 - COVER ASSY, NO.2 SEAT BACK 71047 - LOCK SUB-ASSY, REAR SEAT LEG 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH 71632A - COVER, REAR SEAT, OUTER 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71843A - COVER, REAR SEAT RECLINING, NO.2 RH 71844A - COVER, REAR SEAT RECLINING, NO.2 LH 72160B - TRACK ASSY, REAR NO.1 SEAT, RH 72170B - TRACK ASSY, REAR NO.1 SEAT, LH 72180A - TRACK ASSY, REAR NO.2 SEAT, RH 72190A - TRACK ASSY, REAR NO.2 SEAT, LH 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 72571 - CABLE, LOCKING LEVER NO.1 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH 79915 - BRACKET, SEAT LEG ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
