TOYOTA MODEL F YR20RG-MQW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SEAT SEAT TRACK

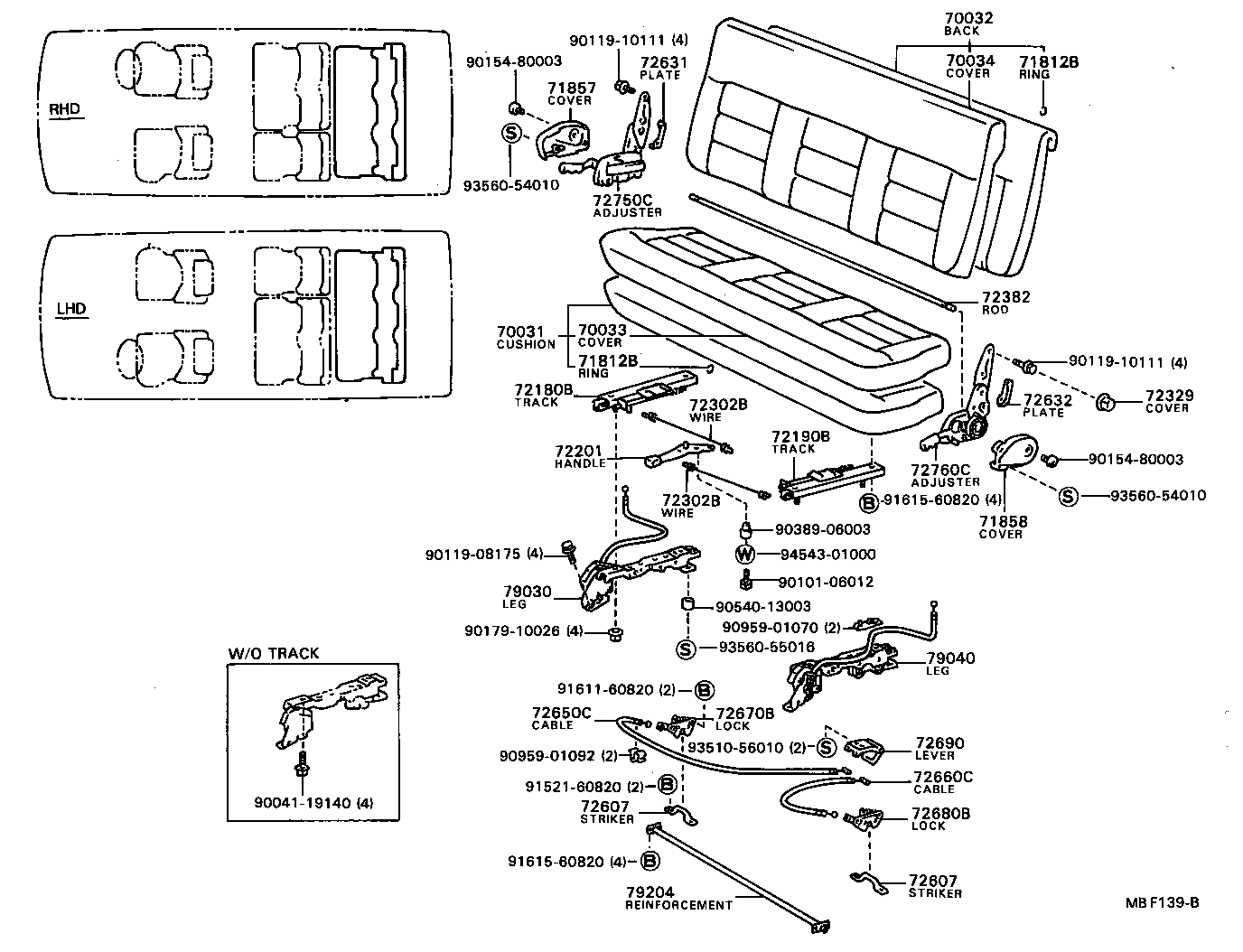

ILLUST NO. 3 OF 3(8211-8408)

MODEL F | SEAT SEAT TRACK 70031 - CUSHION ASSY, NO.3 SEAT 70032 - BACK ASSY, NO.3 SEAT 70033 - COVER ASSY, NO.3 SEAT CUSHION 70034 - COVER ASSY, NO.3 SEAT BACK 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71857 - COVER, RECLINING HINGE, RH 71858 - COVER, RECLINING HINGE, LH 72180B - TRACK ASSY, REAR NO.3 SEAT, RH 72190B - TRACK ASSY, REAR NO.3 SEAT, LH 72201 - HANDLE SUB-ASSY, SEAT TRACK 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING 72329 - COVER, SEAT ADJUSTER BOLT 72382 - ROD, RECLINING ADJUSTER EQUALIZING, NO.2 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK 72631 - PLATE, REAR SEAT BACK LOCK, RH 72632 - PLATE, REAR SEAT BACK LOCK, LH 72650C - CABLE ASSY, REAR NO.2 SEAT LOCK, RH 72660C - CABLE ASSY, REAR NO.2 SEAT LOCK, LH 72670B - LOCK ASSY, REAR SEAT CUSHION, RH 72680B - LOCK ASSY, REAR SEAT CUSHION, LH 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH 79030 - LEG ASSY, NO.3 SEAT, RH 79040 - LEG ASSY, NO.3 SEAT, LH 79204 - REINFORCEMENT SUB-ASSY, NO.2 SEAT LEG ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
