TOYOTA LAND CRUISER 70 RJ73LV-MNEW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

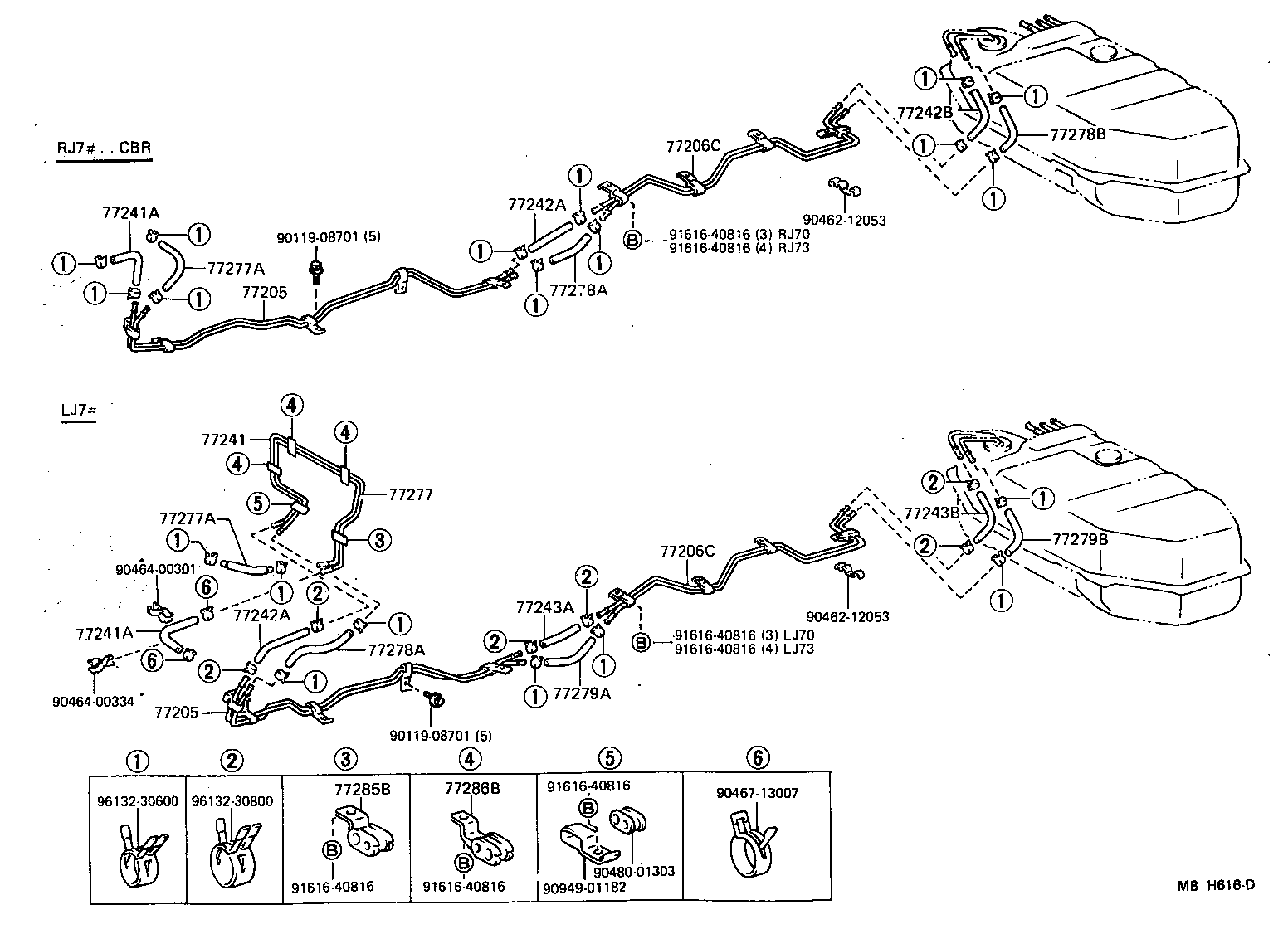

ILLUST NO. 2 OF 2(8411- )LJ7#,RJ7#

LAND CRUISER 70 | FUEL TANK TUBE 77205 - TUBE SUB-ASSY, FUEL MAIN 77205 - TUBE SUB-ASSY, FUEL MAIN 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) 77277 - TUBE, FUEL RETURN, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3) 77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3) 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
