TOYOTA LAND CRUISER 70 RJ73LV-MNEW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

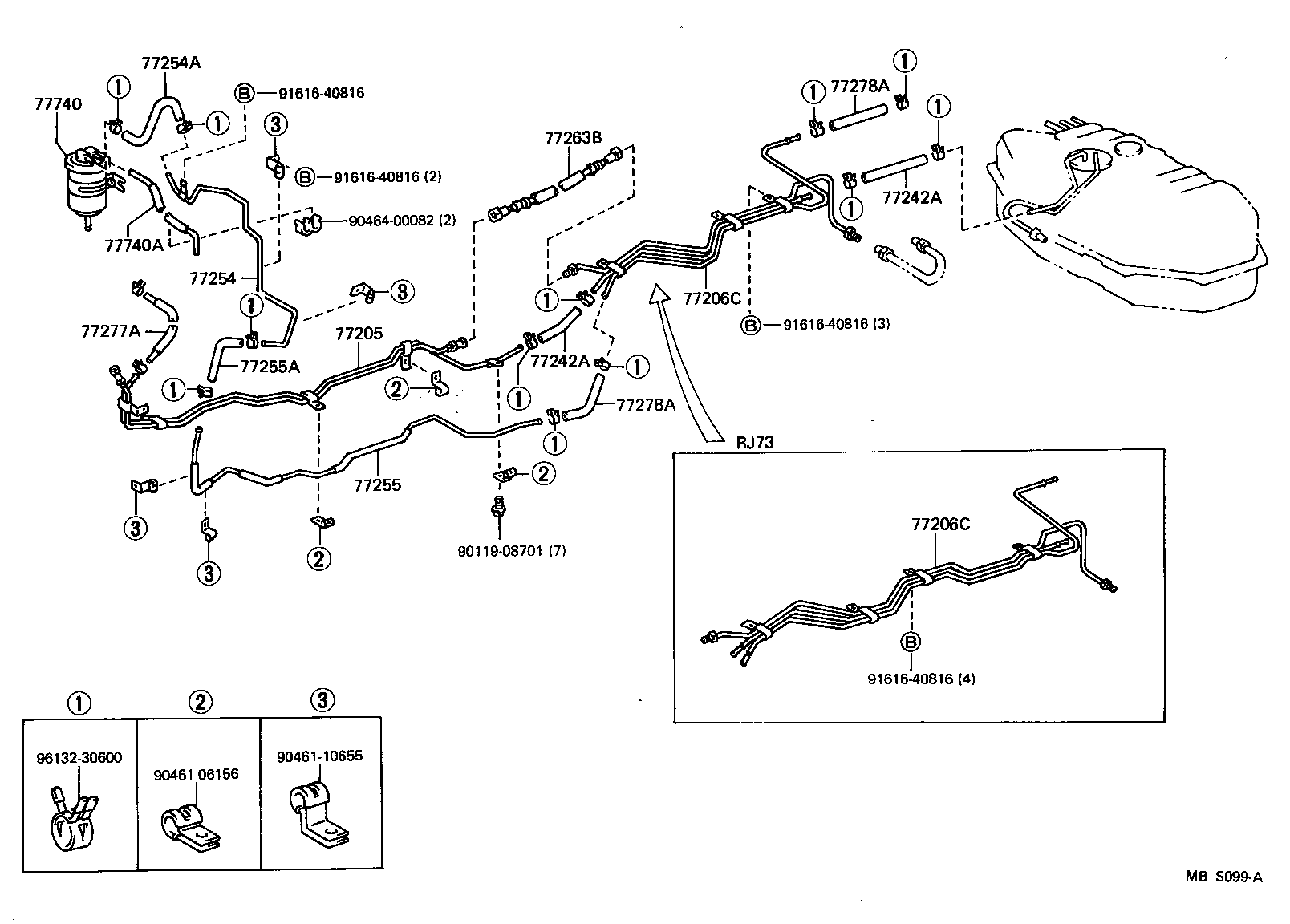

FUEL TANK TUBE

ILLUST NO. 2 OF 2(8812- )EFI

 LAND CRUISER 70 |  FUEL TANK TUBE 77205 - TUBE SUB-ASSY, FUEL MAIN 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77254 - TUBE, FUEL EMISSION, NO.1 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77255 - TUBE, FUEL EMISSION, NO.2 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) 77263B - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER NO.3 TUBE) 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
