TOYOTA CELICA ST202R-BLMGFW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

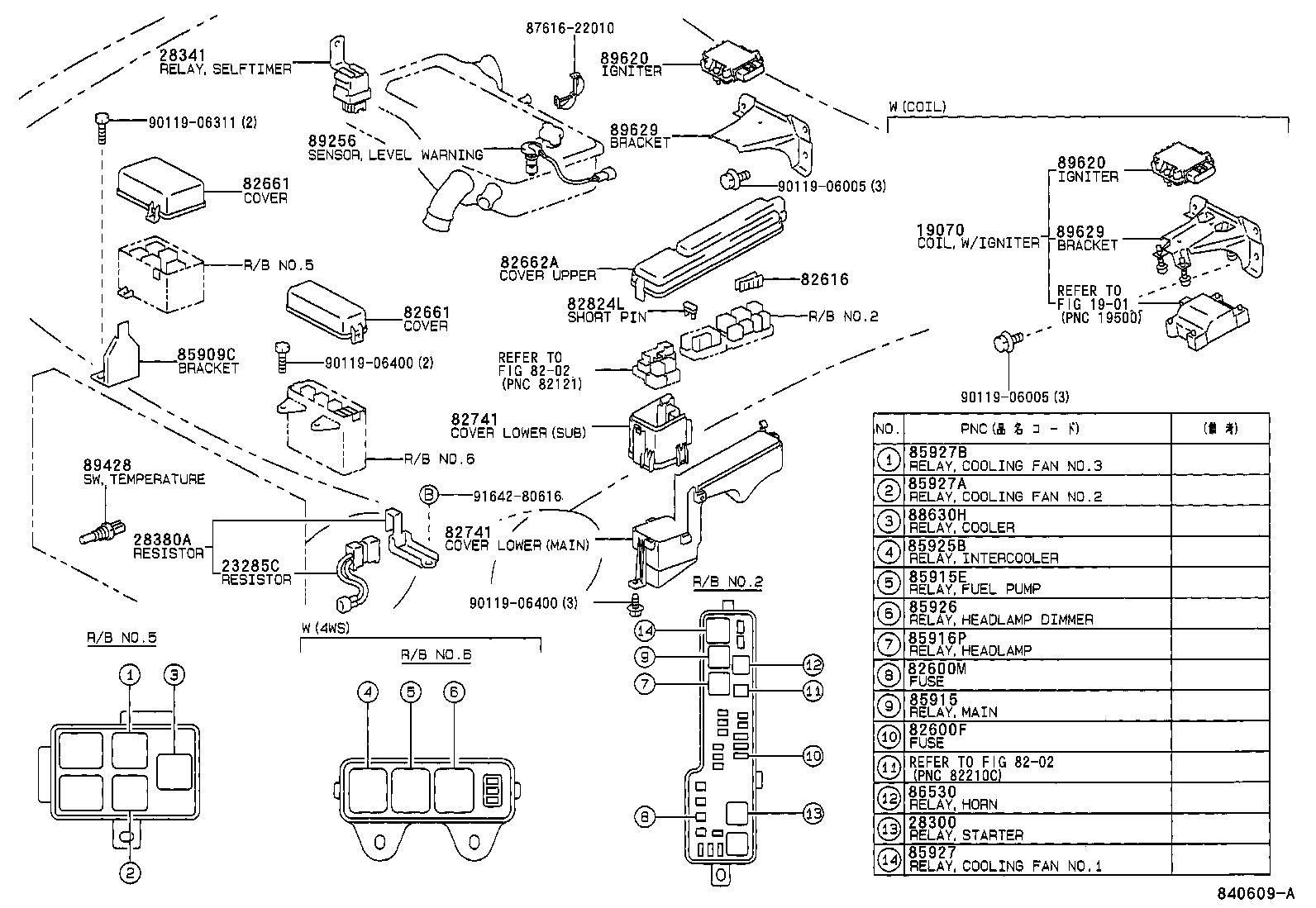

ENGINE ROOM ILLUST NO. 2 OF 6(9311- )

CELICA | SWITCH RELAY COMPUTER ** Refer Fig 19070 - COIL ASSY, W/IGNITER 23285C - RESISTOR, FUEL PUMP 28300 - RELAY ASSY, STARTER 28341 - RELAY, SELFTIMER 28380A - RESISTER, FUEL PUMP ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600M - FUSE, MEDIUM CURRENT 82616 - PULLER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82741 - BLOCK, ENGINE ROOM RELAY 82741 - BLOCK, ENGINE ROOM RELAY 82824L - PIN, SHORT 85909C - BRACKET SUB-ASSY, RELAY, NO.1 85915 - RELAY, MAIN 85915E - RELAY 85916P - RELAY, HEADLAMP 85925B - RELAY, INTERCOOLER 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 86530 - RELAY ASSY, HORN ** Std Part 88630H - RELAY ASSY, COOLER 89256 - SENSOR, LEVEL WARNING 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89620 - IGNITER ASSY 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
