TOYOTA CELICA ST202R-BLMGFW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

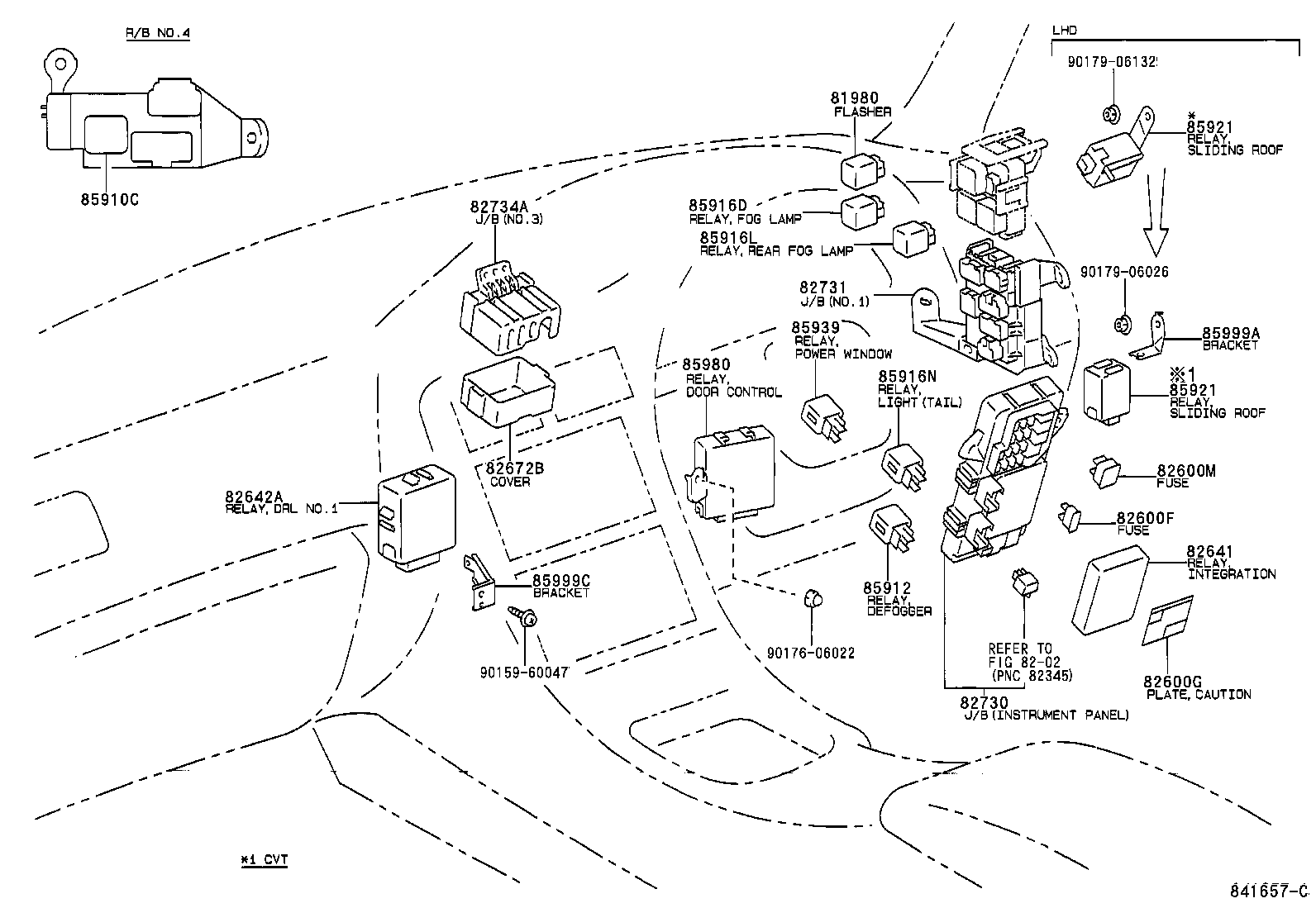

SWITCH RELAY COMPUTER

COWL ILLUST NO. 4 OF 6(9311- )

 CELICA |  SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82600M - FUSE, MEDIUM CURRENT 82641 - RELAY, INTEGRATION NO.1 82642A - RELAY, RUNNING LIGHT 82672B - COVER, JUNCTION BLOCK 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82731 - BLOCK, DRIVER SIDE JUNCTION 82734A - BLOCK, CENTER JUNCTION 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916L - RELAY, REAR FOG LAMP 85916N - RELAY, TAIL LAMP 85921 - RELAY, SLIDING ROOF CONTROL 85921 - RELAY, SLIDING ROOF CONTROL 85939 - RELAY, POWER WINDOW 85980 - RELAY ASSY, DOOR CONTROL 85999A - BRACKET, RELAY, NO.2 85999C - BRACKET, RELAY, NO.3  ** Std Part  ** Std Part  ** Std Part  ** Std Part
