TOYOTA HIACE HIACE S B V RCH13L-SBMRKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

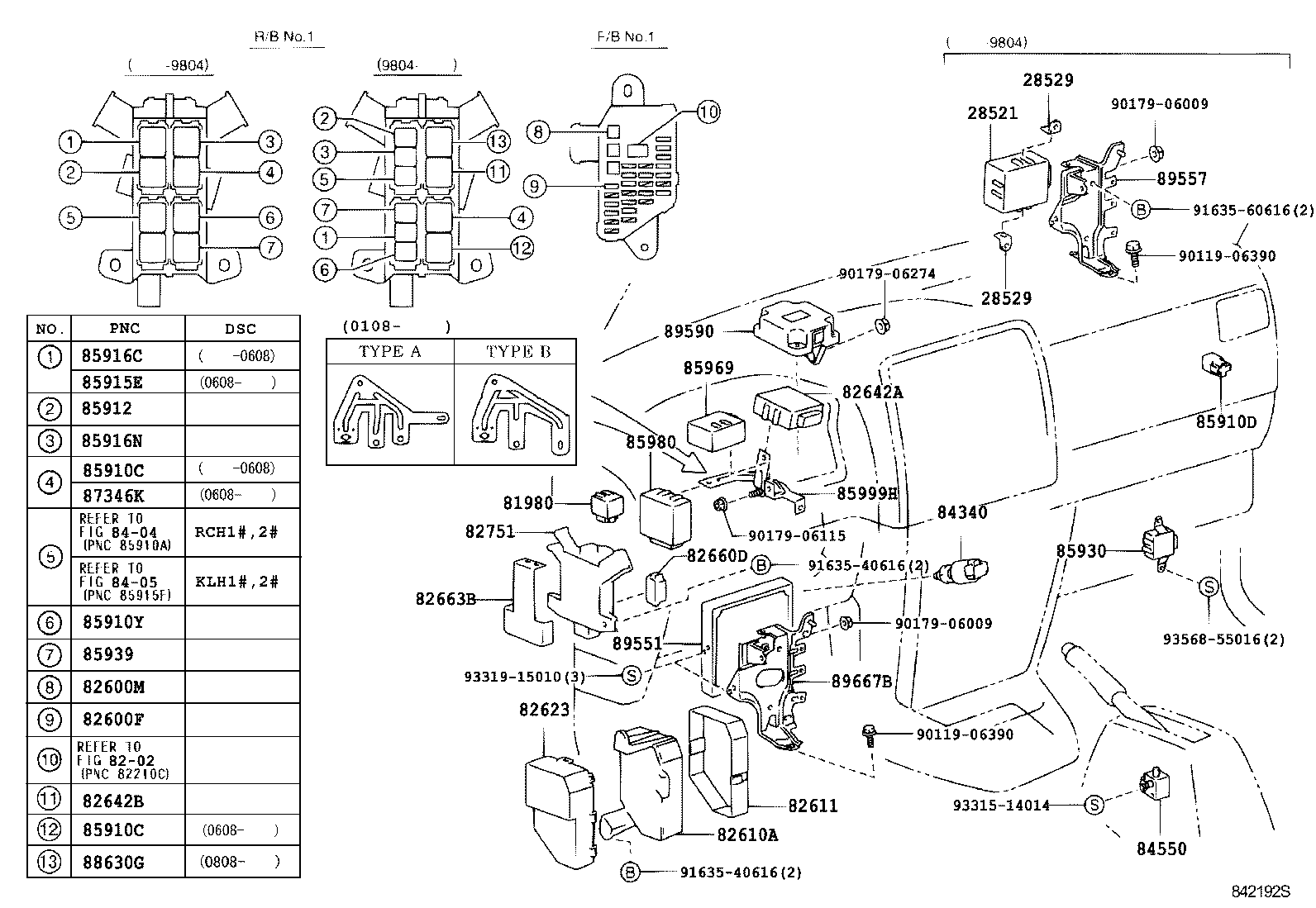

COWL ILLUST NO. 3 OF 6(9508-0808)LHD

HIACE HIACE S B V | SWITCH RELAY COMPUTER 28521 - TIMER, PREHEATING 28529 - BRACKET, PREHEATING TIMER, NO.1 28529 - BRACKET, PREHEATING TIMER, NO.1 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600M - FUSE, MEDIUM CURRENT 82610A - BLOCK ASSY, FUSE 82611 - COVER, FUSE BLOCK 82623 - COVER, FUSIBLE LINK, LOWER 82642A - RELAY, RUNNING LIGHT 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 82660D - BLOCK ASSY, RELAY 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82751 - BLOCK, DRIVER SIDE RELAY ** Refer Fig ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910D - RELAY (FOR HEATER IDLE UP) 85910Y - RELAY, REAR HEATER 85912 - RELAY, DEFOGGER 85915E - RELAY 85916C - RELAY, BACK UP LAMP 85916N - RELAY, TAIL LAMP 85930 - RELAY ASSY, POWER WINDOW 85939 - RELAY, POWER WINDOW 85969 - RELAY, LIGHT REMINDER 85980 - RELAY ASSY, DOOR CONTROL 85999H - BRACKET, RELAY 87346K - RELAY, PTC HEATER 88630G - RELAY ASSY, COOLER 89551 - COMPUTER, EMISSION CONTROL 89557 - BRACKET, EMISSION CONTROL COMPUTER, NO.1 89590 - COMPUTER ASSY, CONDITION INDICATOR 89667B - BRACKET, ENGINE CONTROL COMPUTER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
