TOYOTA HIACE HIACE S B V RCH13L-SBMRKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

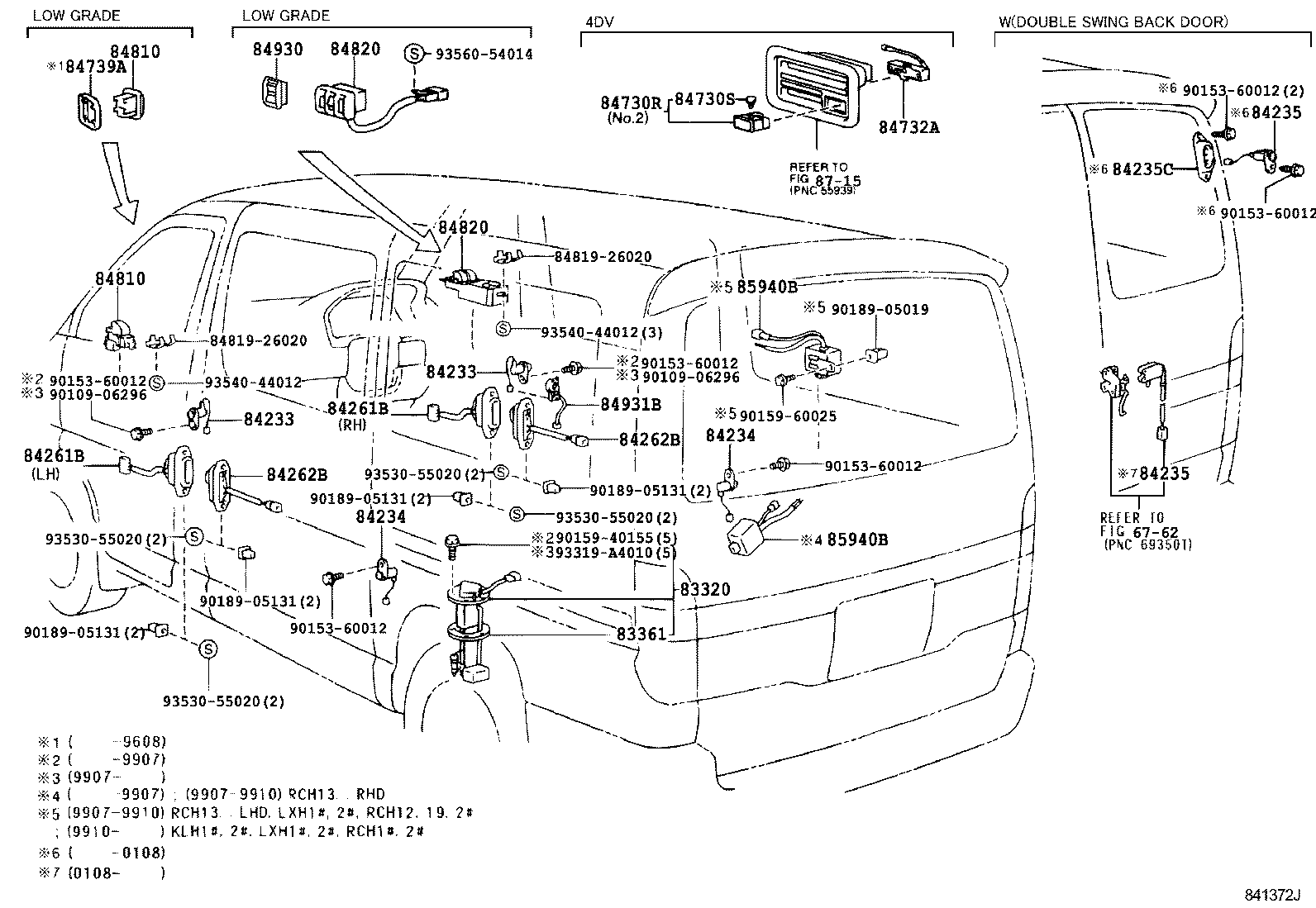

DOOR,TRIM,ROOF & FLOOR ILLUST NO. 6 OF 6(9508-0808)

HIACE HIACE S B V | SWITCH RELAY COMPUTER ** Refer Fig 83320 - GAGE ASSY, FUEL SENDER 83361 - GASKET, FUEL SENDER GAGE 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) 84235C - BRACKET, COURTESY SWITCH(FOR BACK DOOR) 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE 84730R - SWITCH ASSY, HEATER BLOWER 84730S - BULB, HEATER BLOWER SWITCH 84732A - SWITCH, REAR HEATER BLOWER 84739A - RETAINER, SWITCH 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810 - SWITCH ASSY, POWER WINDOW REGULATOR ** Std Part ** Std Part 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84930 - SWITCH ASSY, DOOR CONTROL 84931B - SWITCH, DOOR CONTROL 85940B - RELAY ASSY, REAR WIPER 85940B - RELAY ASSY, REAR WIPER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
