TOYOTA GT86 86 ZN6AK-A8 / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

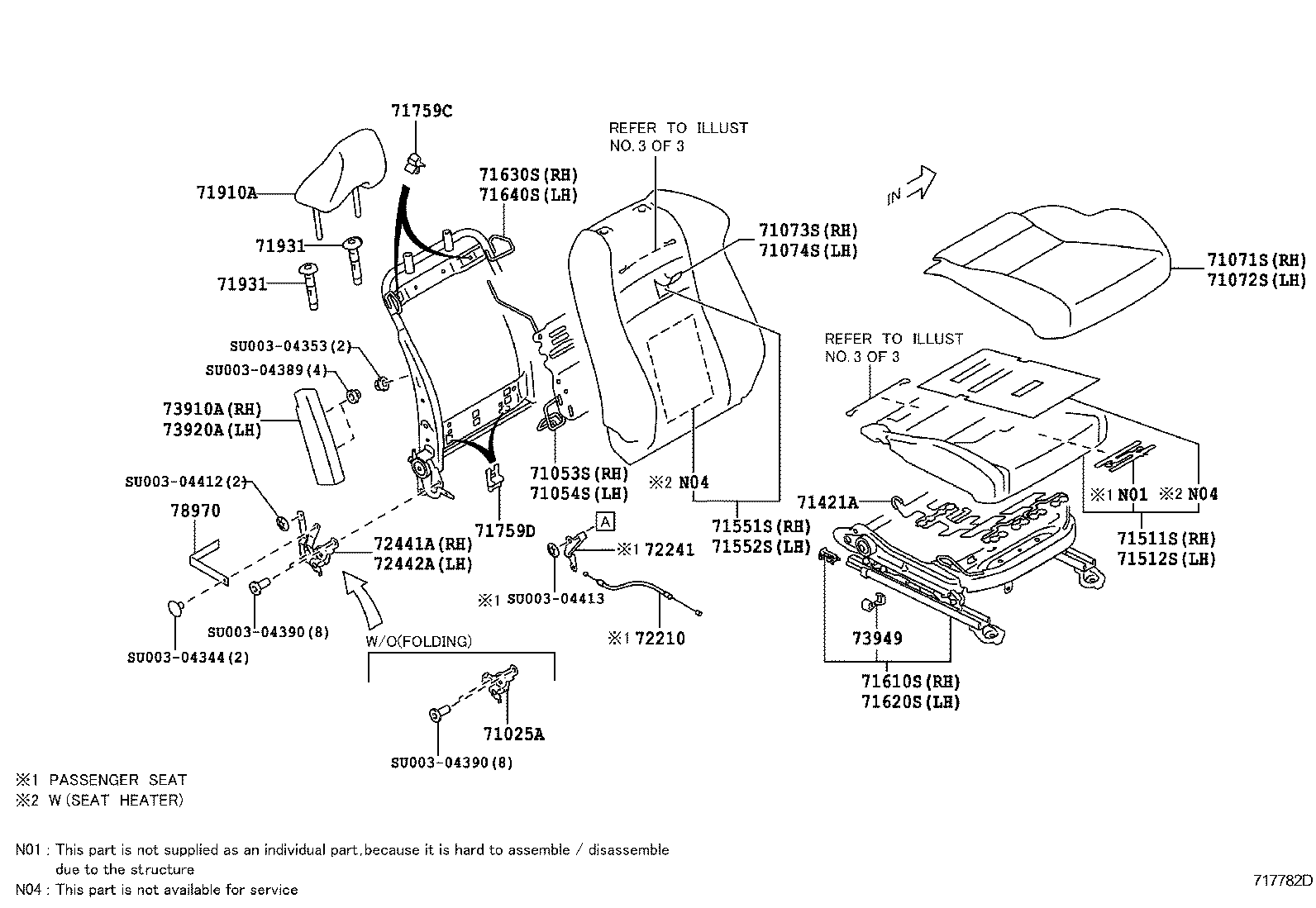

SEAT BACK & CUSHION ILLUST NO. 1 OF 3(1204- )

 GT86 86 |  FRONT SEAT SEAT TRACK 71025A - BRACKET SUB-ASSY, FRONT SEAT BACK 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71421A - SPRING, FRONT SEAT CUSHION 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71759C - HOOK, FRONT SEAT BACK, NO.1 71759D - HOOK, FRONT SEAT BACK, NO.2 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72210 - CABLE ASSY, SEAT TRACK CONTROL 72241 - BRACKET, SEAT TRACK CABLE 72441A - LINK, FRONT SEAT TRAVEL, NO.1 72442A - LINK, FRONT SEAT TRAVEL, NO.2 73910A - AIR BAG ASSY, FRONT SEAT, RH 73920A - AIR BAG ASSY, FRONT SEAT, LH 73949 - CAP 78970 - BAND ASSY, SEAT LOCK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
