TOYOTA GT86 86 ZN6AK-A8 / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

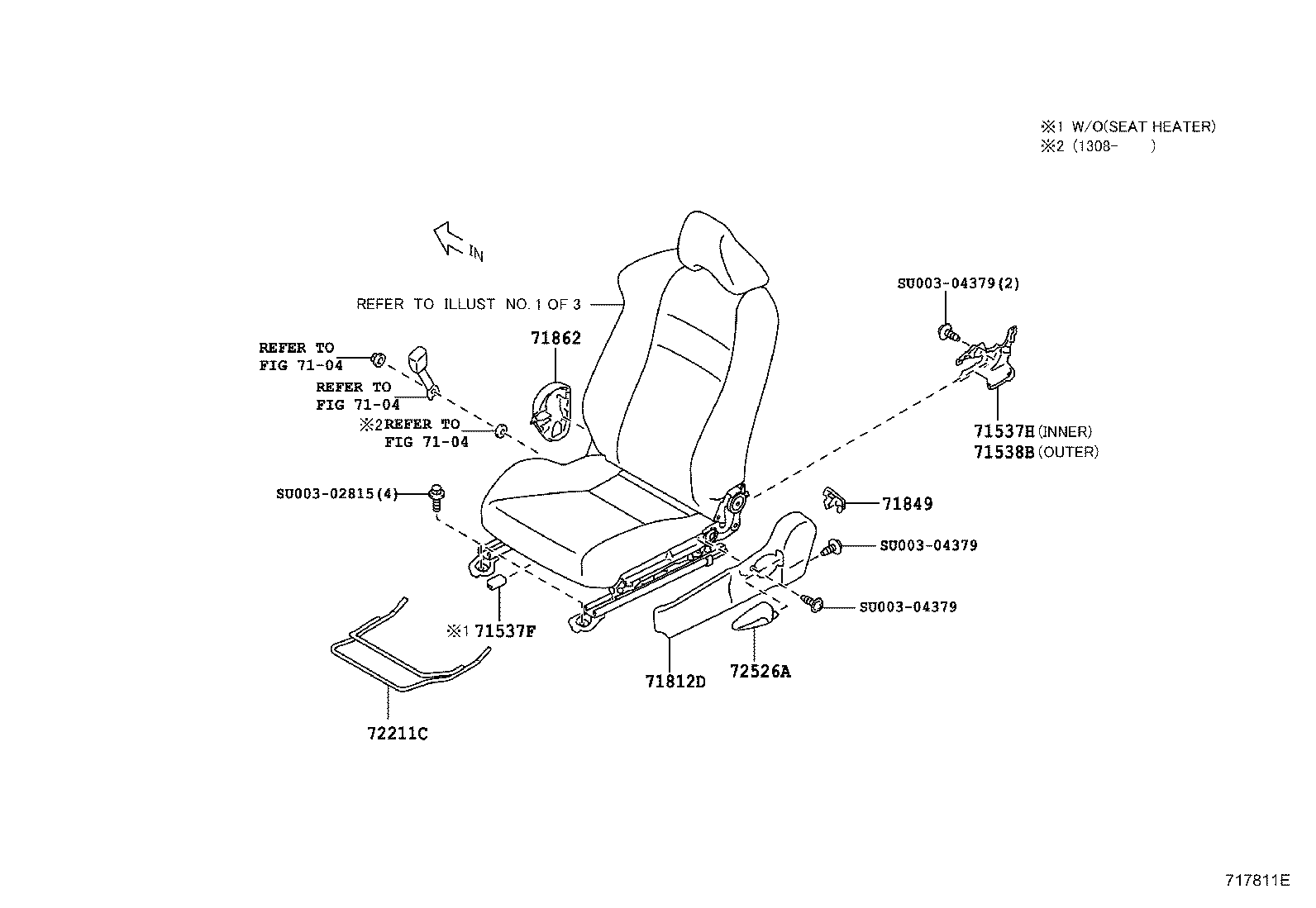

FRONT SEAT SEAT TRACK

CUSHION SHIELD,LH ILLUST NO. 2 OF 3(1204- )ZN6AK,6BK,6CK

 GT86 86 |  FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 72211C - HANDLE, SEAT TRACK ADJUSTING 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part
