TOYOTA GT86 86 ZN6AK-A8 / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

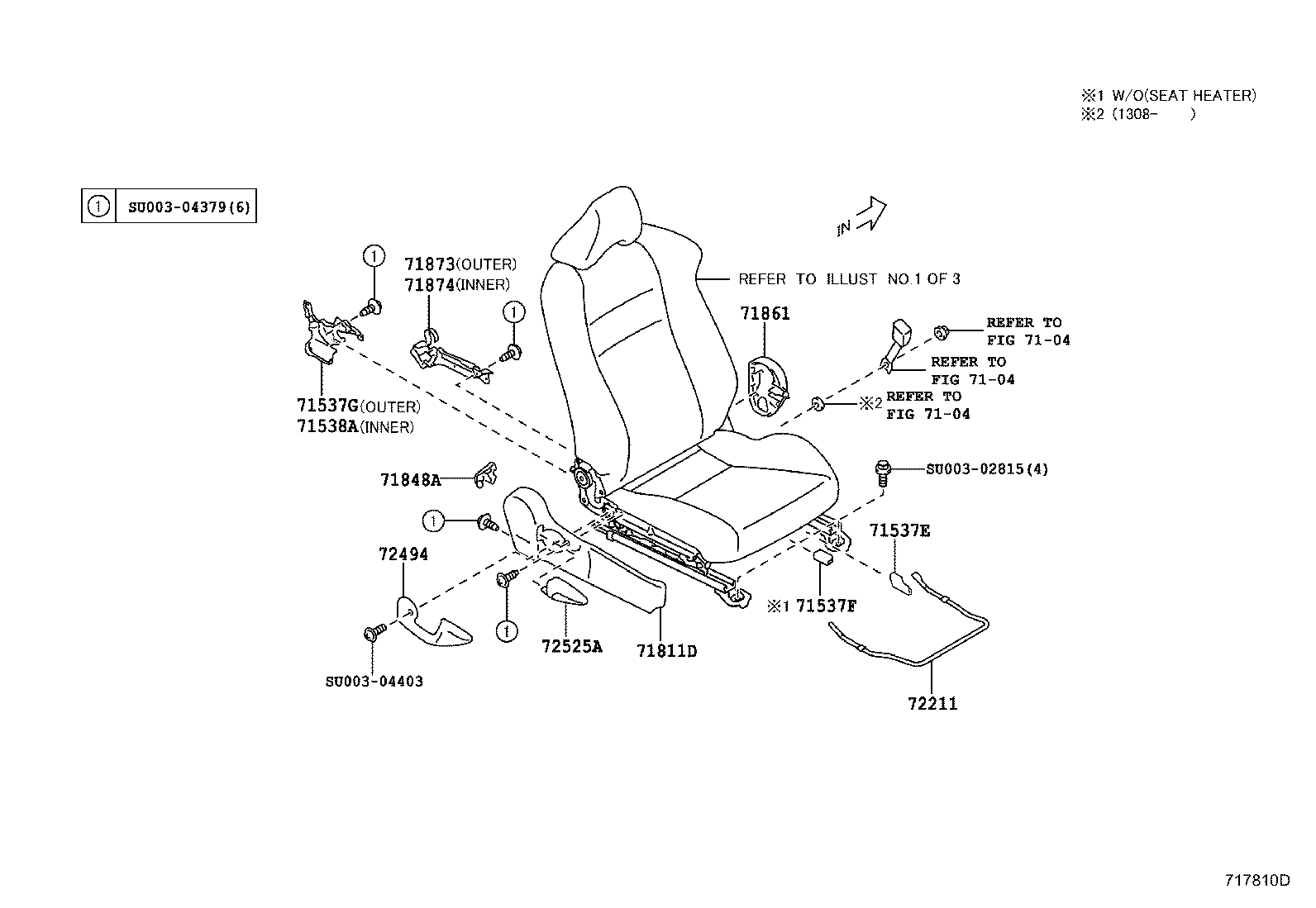

CUSHION SHIELD,RH ILLUST NO. 2 OF 3(1204- )ZN6AK,6BK,6CK

 GT86 86 |  FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) 71811D - SHIELD, FRONT SEAT CUSHION, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 72211 - HANDLE, SEAT TRACK ADJUSTING 72494 - HANDLE, VERTICAL ADJUSTING, RH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH  ** Std Part  ** Std Part  ** Std Part
