TOYOTA CROWN GS151R-ATPSK / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

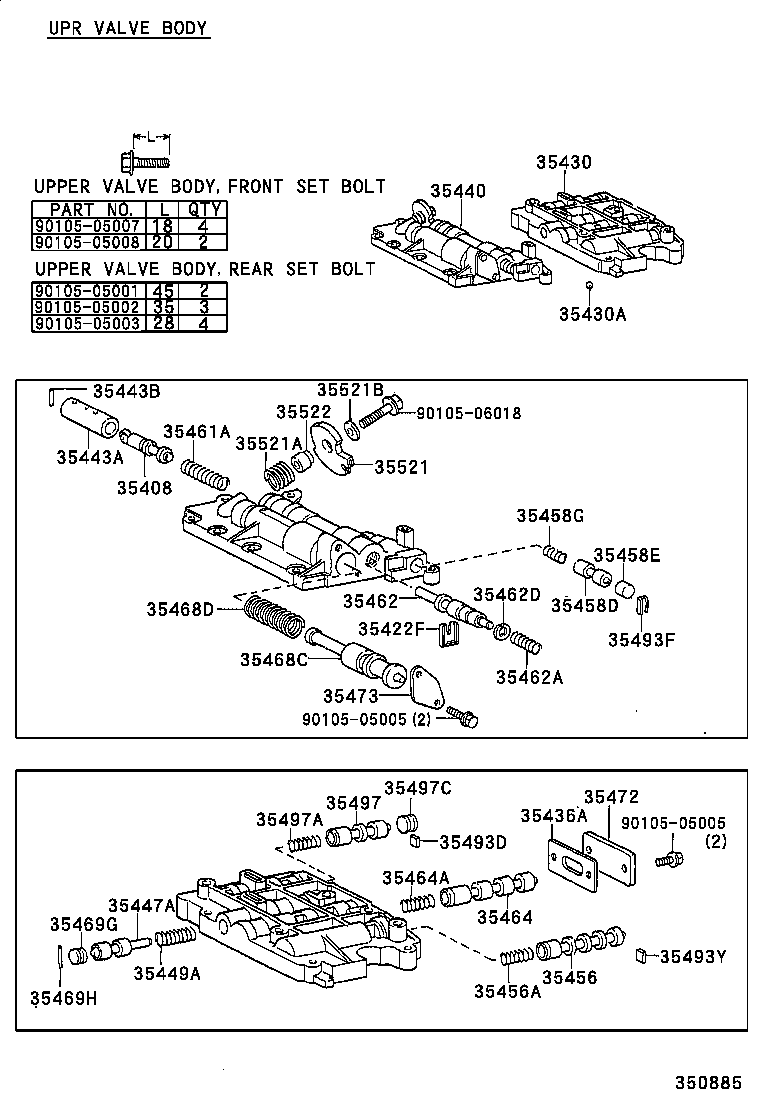

VALVE BODY OIL STRAINER ATM

A42DE ILLUST NO. 2 OF 3(9707- )GS151

CROWN | VALVE BODY OIL STRAINER ATM 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT 35422F - STOPPER, VALVE VIBRATING 35430 - BODY ASSY, REAR UPPER VALVE 35430A - BALL (FOR REAR UPPER VALVE BODY) 35436A - GASKET, VALVE BODY PLATE, NO.4 35440 - BODY ASSY, FRONT UPPER VALVE 35443A - SLEEVE, DOWN SHIFT PLUG 35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE) 35447A - VALVE, REVERSE CLUTCH SEQUENCE 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35458D - VALVE, CUT BACK 35458E - PLUG (FOR CUT BACK VALVE) 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) 35462 - VALVE, THROTTLE 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35462D - RING, E (FOR THROTTLE VALVE) 35464 - VALVE, 1-2 SHIFT 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35469G - PLUG, REVERSE CLUTCH SEQUENCE VALVE 35469H - ROLLER (FOR REVERSE CLUTCH SEQUENCE VALVE) 35472 - COVER, VALVE BODY, NO.2 35473 - COVER, TRANSMISSION VALVE BODY 35493D - SEAT, 3-4 SHIFT VALVE PLUG 35493F - SEAT, SHIFT VALVE PLUG 35493Y - SEAT, 2-3 SHIFT VALVE PLUG 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35521 - CAM, THROTTLE VALVE 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) 35521B - WASHER (FOR THROTTLE VALVE CAM SET) 35522 - PIN, THROTTLE VALVE CAM ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
