TOYOTA CROWN GS151R-ATPSK / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

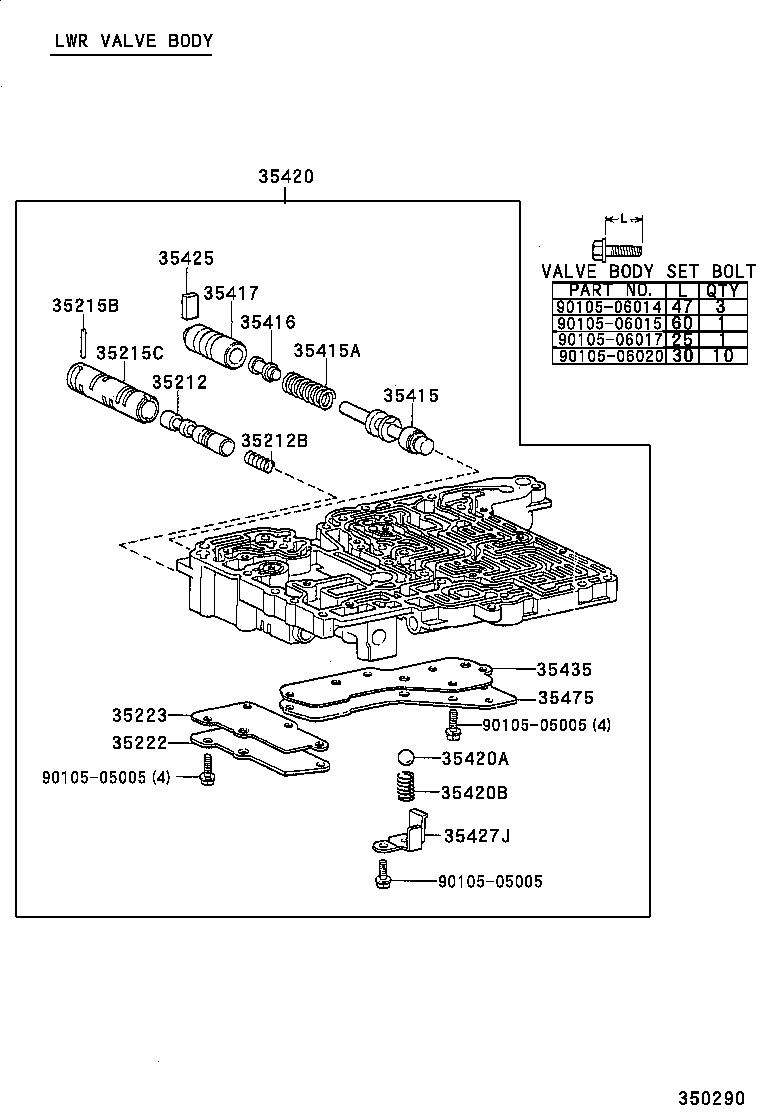

VALVE BODY OIL STRAINER ATM

A42DE ILLUST NO. 3 OF 3(9707- )GS151

CROWN | VALVE BODY OIL STRAINER ATM 35212 - VALVE, LOCK UP RELAY 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 35222 - PLATE, LOCK UP RELAY VALVE BODY 35223 - GASKET, LOCK UP RELAY VALVE BODY 35415 - VALVE, PRESSURE REGULATOR 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 35417 - SLEEVE, PRESSURE REGULATOR VALVE 35420 - BODY ASSY, LOWER VALVE 35420A - BALL (FOR PRESSURE RELIEF) 35420B - SPRING (FOR PRESSURE RELIEF) 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE 35427J - SEAT, CHECK VALVE SPRING (FOR PRESSURE RELIEF) 35435 - GASKET, VALVE BODY PLATE, NO.3 35475 - COVER, VALVE BODY, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
