TOYOTA QUALIS RZF50R-HRMNED / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

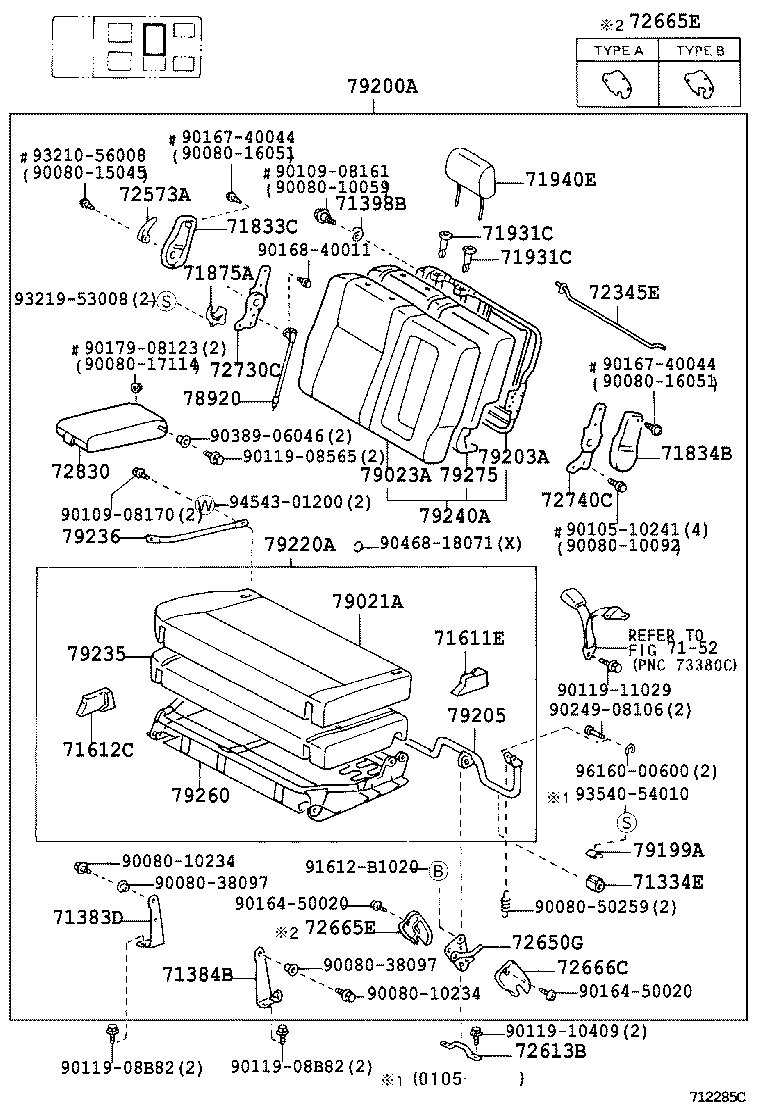

SEAT SEAT TRACK

REAR NO.1 SEAT (FOR 02S) ILLUST NO. 2 OF 3(0201-0209)GL

QUALIS | SEAT SEAT TRACK 71334E - STOPPER, REAR SEAT LEG, NO.2 71383D - BRACKET, REAR NO.2 SEAT CUSHION SET, REAR RH 71384B - BRACKET, REAR NO.2 SEAT CUSHION SET, REAR LH 71398B - HOLDER, REAR SEAT BACK, LH ** Refer Fig 71611E - PAD, REAR NO.2 SEAT CUSHION, A 71612C - PAD, REAR SEAT CUSHION, C 71833C - COVER, REAR SEAT RECLINING, NO.2 RH 71834B - COVER, REAR SEAT RECLINING, NO.2 LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71940E - HEADREST ASSY, NO.2 SEAT 72345E - PIPE, RECLINING CONNECTING 72573A - LEVER, RECLINING CONTROL, NO.2 RH 72613B - STRIKER, REAR SEAT LOCK 72650G - LOCK ASSY, REAR NO.2 SEAT, RH 72665E - COVER, REAR SEAT LOCK, NO.2 RH 72665E - COVER, REAR SEAT LOCK, NO.2 RH 72666C - COVER, REAR SEAT LOCK, NO.2 LH 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH 72830 - ARMREST ASSY, REAR SEAT, CENTER 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION 79023A - COVER SUB-ASSY, NO.2 SEAT BACK 79199A - HOLDER, NO.2 SEAT LEG STOPPER 79200A - SEAT ASSY, NO.2 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH 79205 - LEG SUB-ASSY, NO.2 SEAT 79220A - CUSHION ASSY, NO.2 SEAT 79235 - PAD, NO.2 SEAT CUSHION 79236 - LINK, NO.2 LH SEAT LEG 79240A - BACK ASSY, NO.2 SEAT 79260 - SPRING ASSY, NO.2 SEAT CUSHION 79275 - PAD, NO.2 SEAT BACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
