TOYOTA QUALIS RZF50R-HRMNED / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

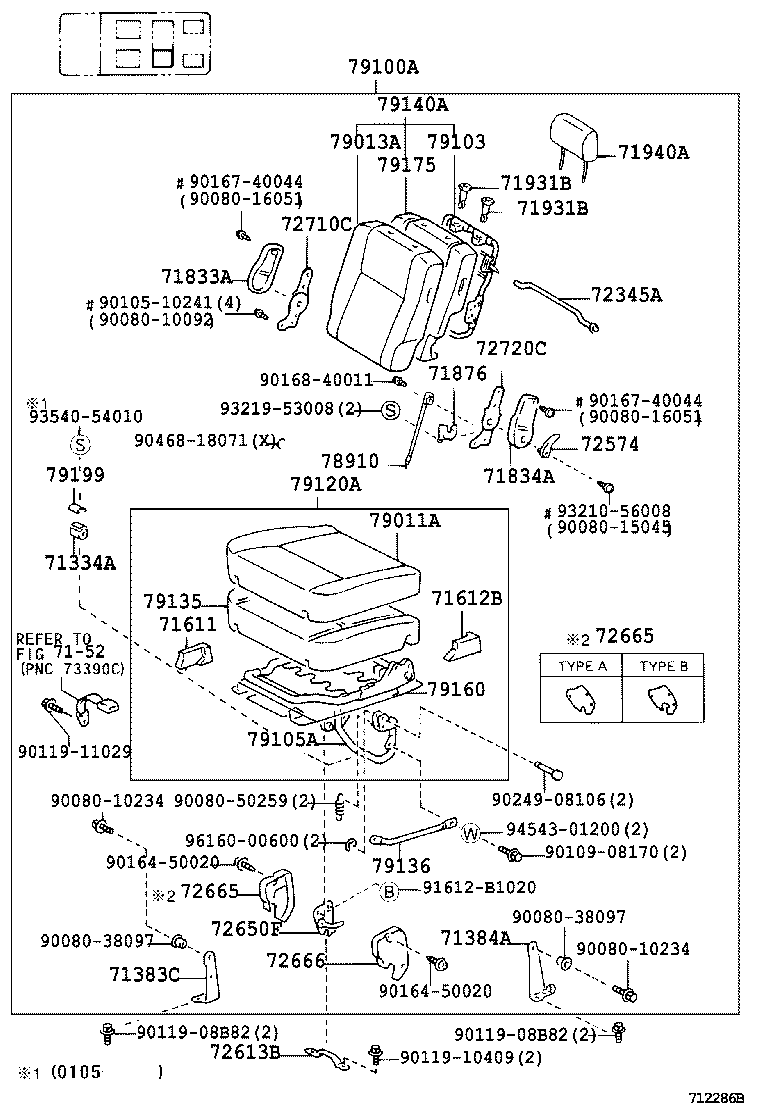

SEAT SEAT TRACK

REAR NO.1 SEAT (FOR 01S) ILLUST NO. 2 OF 3(0201-0209)GL

QUALIS | SEAT SEAT TRACK 71334A - STOPPER, REAR SEAT LEG 71383C - BRACKET, REAR SEAT CUSHION SET, REAR RH 71384A - BRACKET, REAR SEAT CUSHION SET, REAR LH ** Refer Fig 71611 - PAD, REAR SEAT CUSHION 71612B - PAD, REAR SEAT CUSHION, B 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72345A - PIPE, RECLINING CONNECTING 72574 - LEVER, RECLINING CONTROL, LH 72613B - STRIKER, REAR SEAT LOCK 72650F - LOCK ASSY, REAR SEAT, RH 72665 - COVER, REAR SEAT BACK LOCK, RH 72665 - COVER, REAR SEAT BACK LOCK, RH 72666 - COVER, REAR SEAT BACK LOCK, LH 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION 79013A - COVER SUB-ASSY, NO.1 SEAT BACK 79100A - SEAT ASSY, REAR NO.1 (FOR BENCH TYPE) 79103 - FRAME SUB-ASSY, NO.1 SEAT BACK 79105A - LEG SUB-ASSY, NO.1 SEAT 79120A - CUSHION ASSY, NO.1 SEAT 79135 - PAD, NO.1 SEAT CUSHION 79136 - LINK, NO.1 SEAT LEG 79140A - BACK ASSY, NO.1 SEAT 79160 - SPRING ASSY, NO.1 SEAT CUSHION 79175 - PAD, NO.1 SEAT BACK 79199 - HOLDER, NO.1 SEAT LEG STOPPER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
