TOYOTA PREVIA TARAGO ACR30R-MRSDKW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

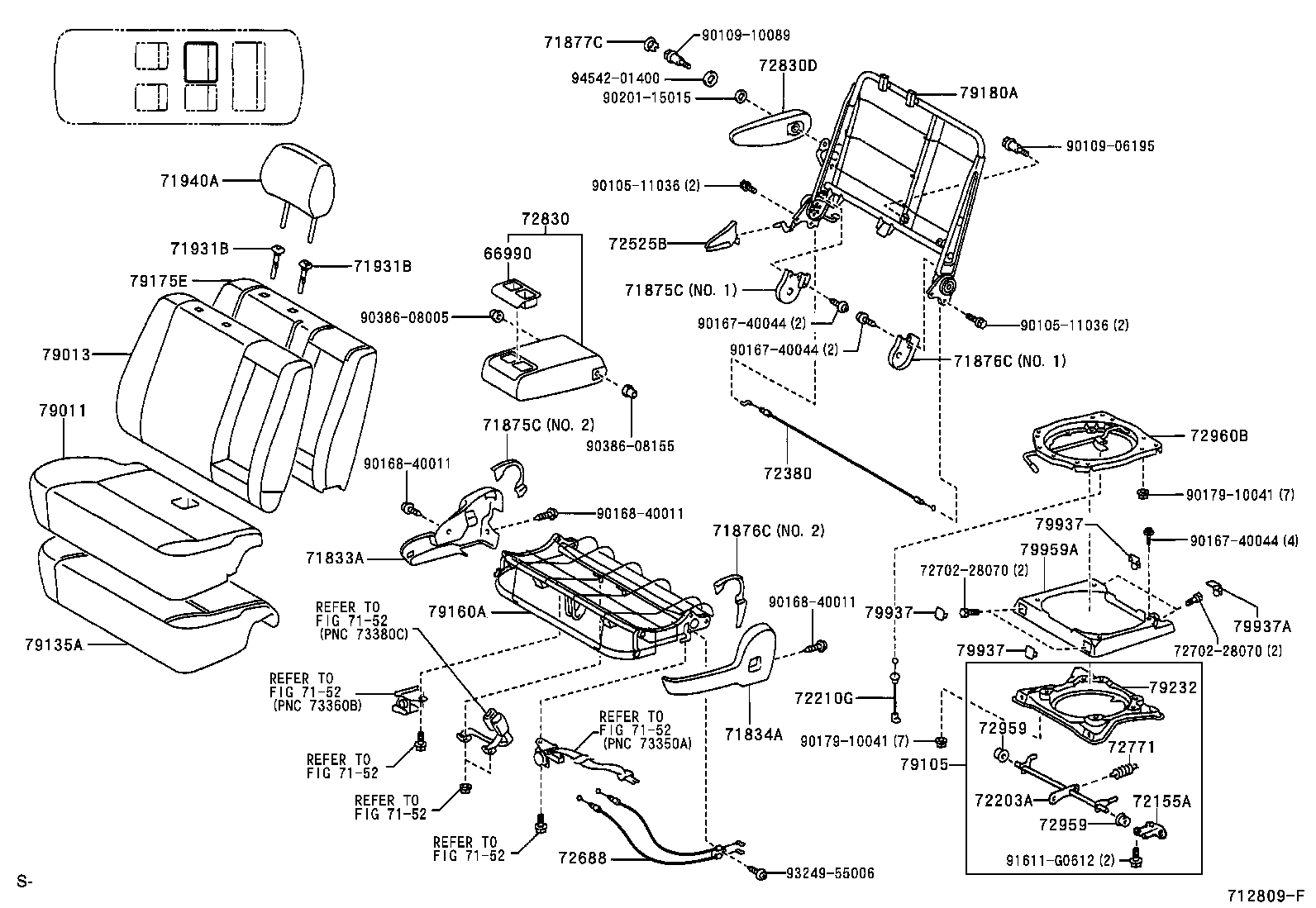

SEAT SEAT TRACK

REAR NO.1 SEAT(RH) ILLUST NO. 2 OF 4(0304- )08S..ATM..EUR,GCC

PREVIA TARAGO | SEAT SEAT TRACK 66990 - HOLDER ASSY, CUP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71834A - COVER, REAR SEAT RECLINING, NO.1 LH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71877C - COVER, REAR SEAT ARMREST HOLE LH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72155A - BRACKET, SEAT TRACK HANDLE SUPPORT 72203A - HANDLE SUB-ASSY, REAR SEAT TRACK, RH 72210G - CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, RH 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72688 - CABLE, REAR SEAT TRACK & TURN CONTROL ** Std Part ** Std Part 72771 - SPRING, REAR SEAT TURN NO.1 72830 - ARMREST ASSY, REAR SEAT, CENTER 72830D - ARMREST ASSY, REAR SEAT, RH 72959 - SPACER, REAR SEAT TURN SIDE 72959 - SPACER, REAR SEAT TURN SIDE 72960B - TABLE ASSY, REAR SEAT TURN, RH 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79105 - LEG SUB-ASSY, NO.1 SEAT, RH 79135A - PAD, NO.1 SEAT CUSHION, RH 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH 79175E - PAD, NO.1 SEAT BACK, RH 79180A - SPRING ASSY, NO.1 SEAT BACK, RH 79232 - LEG, REAR NO.2 SEAT, RH 79937 - COVER, REAR SEAT LEG, NO.2 79937 - COVER, REAR SEAT LEG, NO.2 79937 - COVER, REAR SEAT LEG, NO.2 79937A - COVER, REAR SEAT LEG, NO.2 79959A - COVER, REAR SEAT LEG, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
