TOYOTA PREVIA TARAGO ACR30R-MRSDKW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

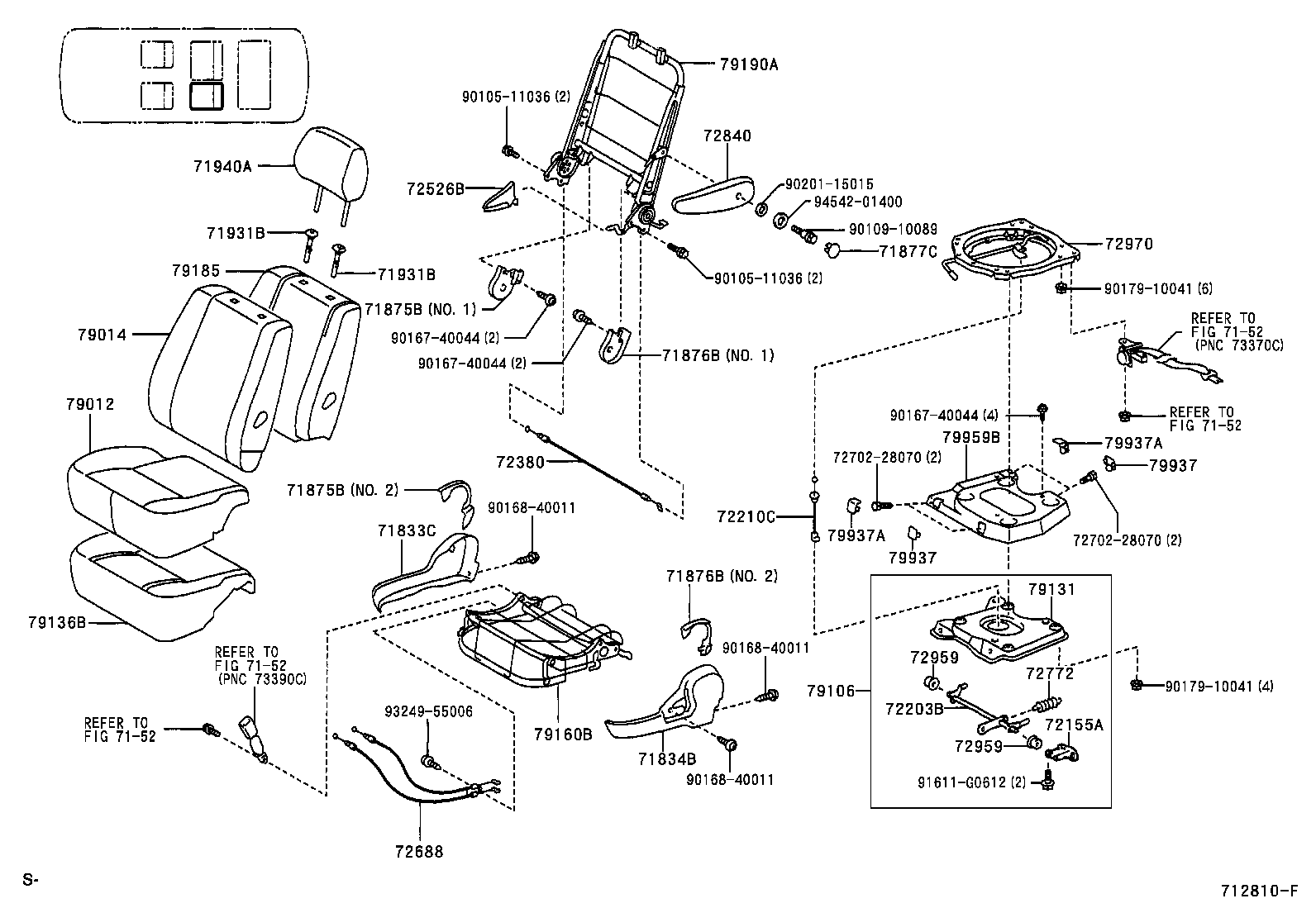

REAR NO.1 SEAT(LH) ILLUST NO. 2 OF 4(0304- )08S..ATM..EUR,GCC

PREVIA TARAGO | SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71833C - COVER, REAR SEAT RECLINING, NO.2 RH 71834B - COVER, REAR SEAT RECLINING, NO.2 LH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71877C - COVER, REAR SEAT ARMREST HOLE LH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72155A - BRACKET, SEAT TRACK HANDLE SUPPORT 72203B - HANDLE SUB-ASSY, REAR SEAT TRACK, LH 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72688 - CABLE, REAR SEAT TRACK & TURN CONTROL ** Std Part ** Std Part 72772 - SPRING, REAR SEAT TURN NO.2 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH 72959 - SPACER, REAR SEAT TURN SIDE 72959 - SPACER, REAR SEAT TURN SIDE 72970 - TABLE ASSY, REAR SEAT TURN, LH 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH 79106 - LEG SUB ASSY, NO.1 SEAT, LH 79131 - LEG, NO.1 SEAT 79136B - PAD, NO.1 SEAT CUSHION, LH 79160B - SPRING ASSY, NO.1 SEAT CUSHION, LH 79185 - PAD, NO.1 SEAT BACK, LH 79190A - SPRING ASSY, NO.1 SEAT BACK, LH 79937 - COVER, REAR SEAT LEG, NO.2 79937 - COVER, REAR SEAT LEG, NO.2 79937A - COVER, REAR SEAT LEG, NO.2 79937A - COVER, REAR SEAT LEG, NO.2 79959B - COVER, REAR SEAT LEG, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
