TOYOTA BLIZZARD LD10V-KDCE / POWERTRAIN-CHASSIS / TRANSFER VALVE BODY VALVE LEVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSFER VALVE BODY VALVE LEVER

ILLUST NO. 2 OF 3(8210-8303)VPT ; (8303- )

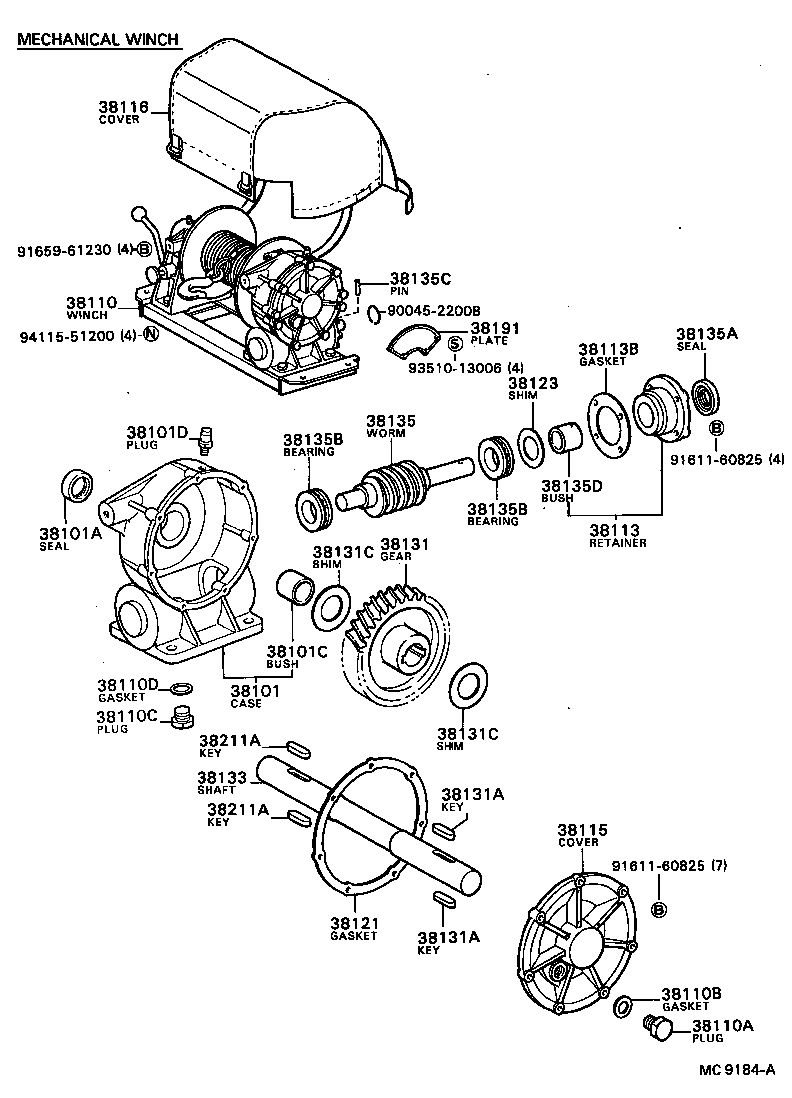

BLIZZARD | TRANSFER VALVE BODY VALVE LEVER 38101 - CASE SUB-ASSY, WINCH GEAR 38101A - SEAL, TYPE T OIL (FOR WINCH GEAR CASE) 38101C - BUSH, SOLID (FOR WINCH GEAR CASE) 38101D - PLUG, BREATHER (FOR WINCH GEAR CASE) 38110 - WINCH ASSY 38110A - PLUG, FILLER 38110B - GASKET (FOR FILLER PLUG) 38110C - PLUG, DRAIN 38110D - GASKET (FOR DRAIN PLUG) 38113 - RETAINER, WORM BEARING 38113B - GASKET, WORM BEARING REATAINER 38115 - COVER, WINCH GEAR CASE 38116 - COVER, WINCH 38121 - GASKET, WINCH GEAR CASE COVER 38123 - SHIM, ADJUST 38131 - GEAR, WORM 38131A - KEY, SLIDING (FOR WINCH WORM GEAR) 38131A - KEY, SLIDING (FOR WINCH WORM GEAR) 38131C - SHIM, WORM GEAR 38131C - SHIM, WORM GEAR 38133 - SHAFT, WORM GEAR 38135 - WORM, WINCH 38135A - SEAL, TYPE T OIL (FOR WINCH WORM) 38135B - BEARING (FOR WINCH WORM) 38135B - BEARING (FOR WINCH WORM) 38135C - PIN, SAFETY LOCK 38135D - BUSH (FOR WINCH WORM) 38191 - PLATE, WINCH CAUTION, NO.1 38211A - KEY, WINCH CLUTCH 38211A - KEY, WINCH CLUTCH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
