TOYOTA BLIZZARD LD10V-KDCE / POWERTRAIN-CHASSIS / TRANSFER VALVE BODY VALVE LEVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

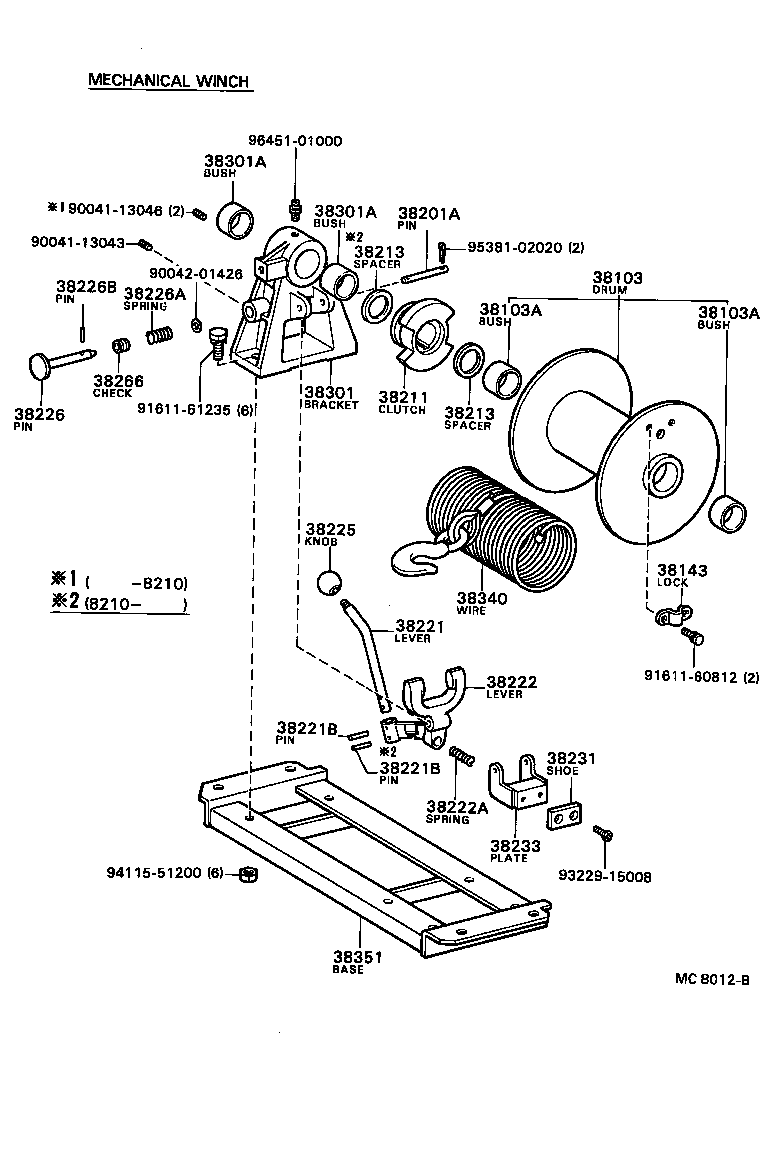

TRANSFER VALVE BODY VALVE LEVER

ILLUST NO. 3 OF 3(8110- )

BLIZZARD | TRANSFER VALVE BODY VALVE LEVER 38103 - DRUM SUB-ASSY, WINCH 38103A - BUSH (FOR WINCH DRUM) 38103A - BUSH (FOR WINCH DRUM) 38143 - LOCK, WIRE 38201A - PIN, WINCH CLUTCH LEVER 38211 - CLUTCH, WINCH 38213 - SPACER, CLUTCH FEATHER KEY 38213 - SPACER, CLUTCH FEATHER KEY 38221 - LEVER, CLUTCH HUB SHIFT 38221B - PIN, SLOTTED SPRING (FOR CLUTCH HUB SHIFT LEVER) 38221B - PIN, SLOTTED SPRING (FOR CLUTCH HUB SHIFT LEVER) 38222 - LEVER, WINCH CLUTCH, LOWER 38222A - SPRING (FOR WINCH CLUTCH LOWER LEVER) 38225 - KNOB, WINCH CLUTCH LEVER 38226 - PIN, LEVER SHIFT LOCK 38226A - SPRING, LEVER SHIFT LOCK PIN 38226B - PIN, CLUTCH SHIFT LEVER LOCK 38231 - SHOE, BRAKE 38233 - PLATE, BRAKE 38266 - CHECK, LEVER SHIFT LOCK 38301 - BRACKET SUB-ASSY, WINCH END 38301A - BUSH (FOR WINCH END BRACKET) 38301A - BUSH (FOR WINCH END BRACKET) 38340 - WIRE ASSY, WINCH CHAIN 38351 - BASE, WINCH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
