TOYOTA TOYOACE BY31D-QDHT / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

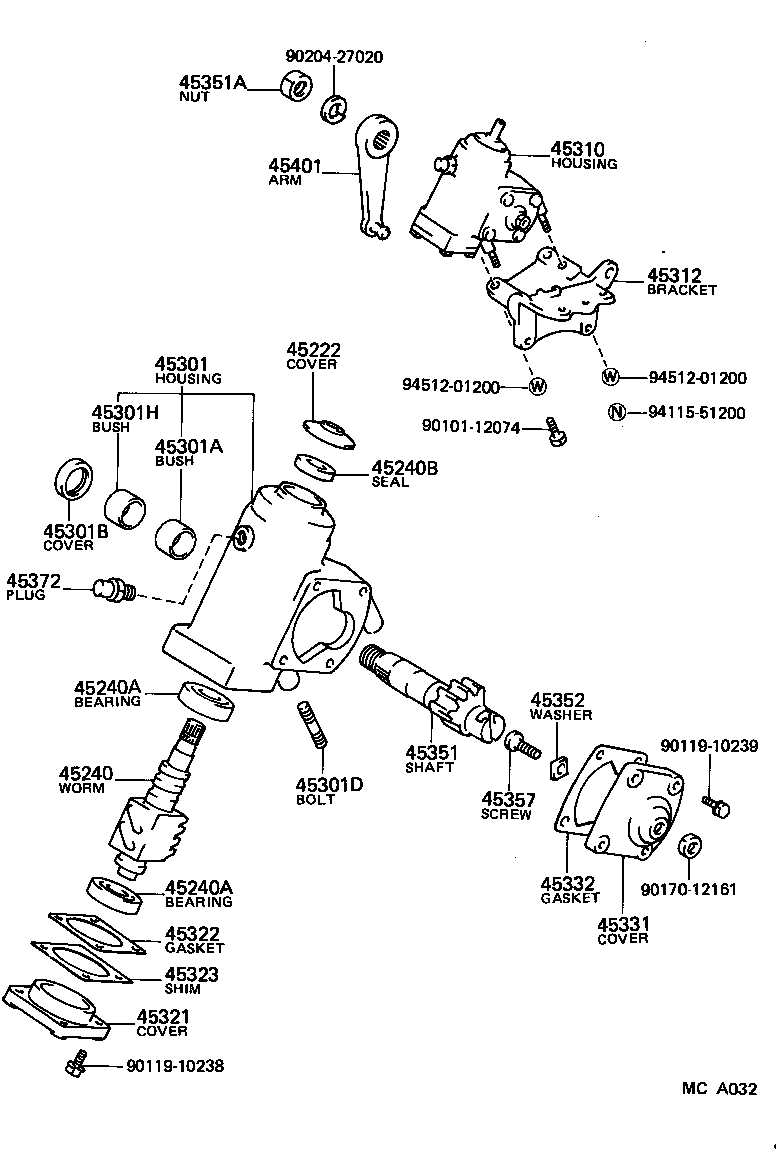

STEERING COLUMN SHAFT

ILLUST NO. 2 OF 3(8308- )DMP

TOYOACE | STEERING COLUMN SHAFT 45222 - COVER, STEERING GEAR DUST 45240 - WORM ASSY, STEERING 45240A - BEARING(FOR STEERING WORM) 45240A - BEARING(FOR STEERING WORM) 45240B - SEAL, OIL(FOR STEERING WORM) 45301 - HOUSING SUB-ASSY, STEERING GEAR 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 45301B - SEAL, OIL(FOR SECTOR SHAFT) 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 45310 - HOUSING ASSY, STEERING GEAR 45312 - BRACKET, STEERING GEAR HOUSING 45321 - COVER, GEAR HOUSING END 45322 - GASKET, GEAR HOUSING END COVER 45323 - SHIM, GEAR HOUSING END COVER 45331 - COVER, SECTOR SHAFT END 45332 - GASKET, SECTOR SHAFT END COVER 45351 - SHAFT, STEERING SECTOR 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) 45352 - WASHER, SECTOR SHAFT THRUST 45357 - SCREW, SECTOR SHAFT ADJUSTING 45372 - PLUG, STEERING GEAR HOUSING OIL 45401 - ARM SUB-ASSY, PITMAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
