TOYOTA TOYOACE BY31D-QDHT / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

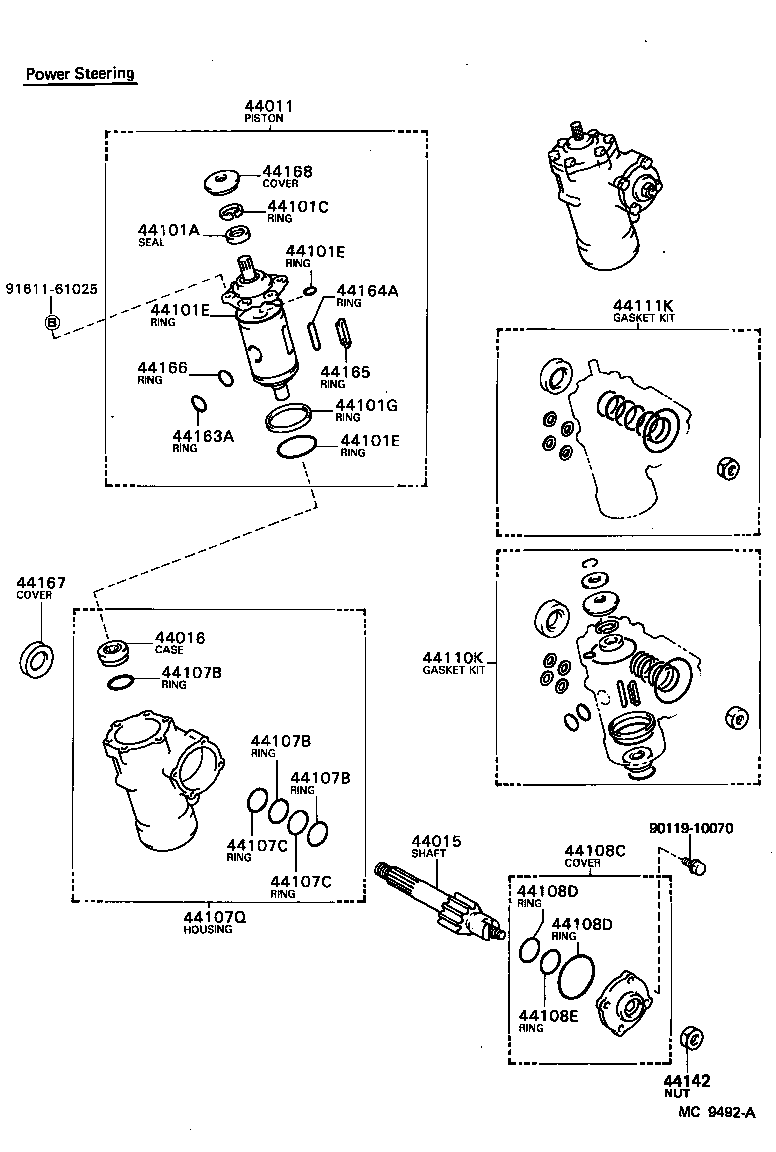

STEERING COLUMN SHAFT

ILLUST NO. 3 OF 3(8201- )BY3#

TOYOACE | STEERING COLUMN SHAFT 44011 - PISTON SUB-ASSY, POWER 44015 - SHAFT SUB-ASSY, SECTOR 44016 - CASE SUB-ASSY, WORM BEARING 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) 44101E - RING, O(FOR STEERING WORM) 44101E - RING, O(FOR STEERING WORM) 44101E - RING, O(FOR STEERING WORM) 44101G - SEAL, DUST(FOR STEERING WORM) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107C - RING(FOR POWER STEERING GEAR HOUSING) 44107C - RING(FOR POWER STEERING GEAR HOUSING) 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE 44108C - COVER SUB-ASSY, SECTOR 44108D - RING, O(FOR SECTOR COVER) 44108D - RING, O(FOR SECTOR COVER) 44108E - RING(FOR SECTOR COVER) 44110K - GASKET KIT, POWER STEERING GEAR 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL 44142 - NUT, LOCK 44163A - RING, POWER PISTON BACK UP 44164A - RING, POWER PISTON 44165 - RING, SEAL, NO.1 44166 - RING, SEAL, NO.2 44167 - COVER, SECTOR SHAFT DUST 44168 - COVER, WORM SHAFT DUST ** Std Part ** Std Part
