TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / POWERTRAIN-CHASSIS / POWER TAKE OFF CASE GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

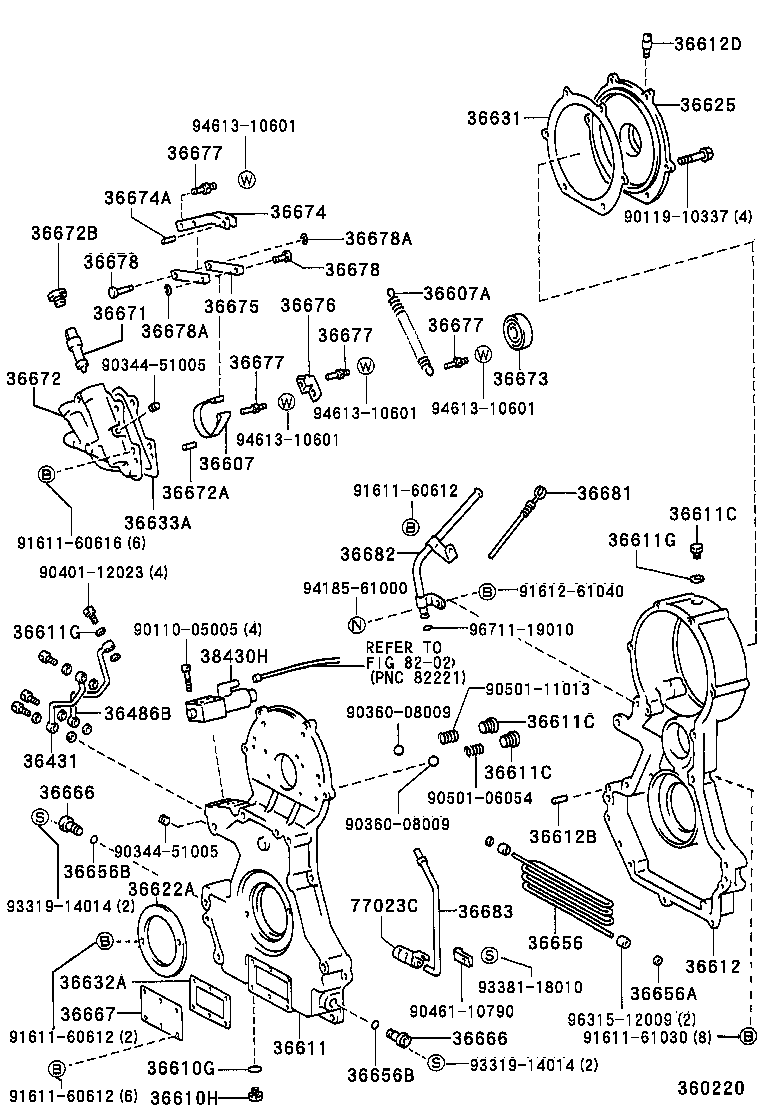

POWER TAKE OFF CASE GEAR

ILLUST NO. 2 OF 3(9701- )BU297

DYNA 200 TOYOACE G25 | POWER TAKE OFF CASE GEAR 36431 - TUBE, POWER TAKE-OFF OIL FILLER 36486B - TUBE, SUCTION 36607 - BAND SUB-ASSY, POWER TAKE-OFF BRAKE 36607A - SPRING, TENSION (FOR POWER TAKE-OFF BRAKE) 36610G - GASKET (FOR FRONT POWER TAKE-OFF DRAIN) 36610H - PLUG (FOR FRONT POWER TAKE-OFF DRAIN) 36611 - CASE, POWER TAKE-OFF 36611C - PLUG, W/HEAD STRAIGHT SCREW (FOR POWER TAKE-OFF CACE) 36611C - PLUG, W/HEAD STRAIGHT SCREW (FOR POWER TAKE-OFF CACE) 36611C - PLUG, W/HEAD STRAIGHT SCREW (FOR POWER TAKE-OFF CACE) 36611G - GASKET (FOR POWER TAKE-OFF CASE PLUG) 36611G - GASKET (FOR POWER TAKE-OFF CASE PLUG) 36612 - CASE, POWER TAKE-OFF REAR 36612B - PIN, STRAIGHT (FOR POWER TAKE-OFF COVER) 36612D - PLUG, BREATHER (FOR POWER TAKE-OFF COVER) 36622A - COVER, POWER TAKE-OFF 36625 - COVER, POWER TAKE-OFF BEARING 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER 36632A - GASKET, POWER TAKE-OFF, NO.2 36633A - GASKET, POWER TAKE-OFF COVER 36656 - TUBE, POWER TAKE-OFF OIL COOLER 36656A - OLIVE (FOR POWER TAKE-OFF OIL COOLER TUBE) 36656B - RING, O (FOR POWER TAKE-OFF OIL COOLER TUBE) 36656B - RING, O (FOR POWER TAKE-OFF OIL COOLER TUBE) 36666 - UNION, POWER TAKE-OFF OIL COOLER 36666 - UNION, POWER TAKE-OFF OIL COOLER 36667 - COVER,POWER TAKE-OFF OIL COOLER,NO.1 36671 - PIST0N, POWER TAKE-OFF BRAKE 36672 - COVER, POWER TAKE-OFF BRAKE 36672A - PIN, STRAIGHT (FOR POWER TAKE-OFF BRAKE COVER) 36672B - PLUG (FOR POWER TAKE-OFF BRAKE COVER) 36673 - DISC, POWER TAKE-OFF BRAKE 36674 - LINK, POWER TAKE-OFF BRAKE, NO.1 36674A - PIN, STRAIGHT (FOR POWER TAKE-OFF BRAKE LINK) 36675 - LINK, POWER TAKE-OFF BRAKE, NO.2 36676 - GUIDE, POWER TAKE-OFF BRAKE 36677 - PIN, POWER TAKE-OFF BRAKE 36677 - PIN, POWER TAKE-OFF BRAKE 36677 - PIN, POWER TAKE-OFF BRAKE 36677 - PIN, POWER TAKE-OFF BRAKE 36678 - PIN, POWER TAKE-OFF BRAKE LINK 36678 - PIN, POWER TAKE-OFF BRAKE LINK 36678A - RING, E (FOR POWER TAKE-OFF BRAKE LINK PIN) 36678A - RING, E (FOR POWER TAKE-OFF BRAKE LINK PIN) 36681 - GAGE, POWER TAKE-OFF OIL LEVEL 36682 - TUBE, POWER TAKE-OFF OIL LEVEL GAGE 36683 - TUBE, POWER TAKE-OFF LUBRICATION 38430H - VALVE ASSY, POWER CONTROL 77023C - FILTER SUB-ASSY, FUEL SUCTION TUBE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
