TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / POWERTRAIN-CHASSIS / POWER TAKE OFF CASE GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER TAKE OFF CASE GEAR

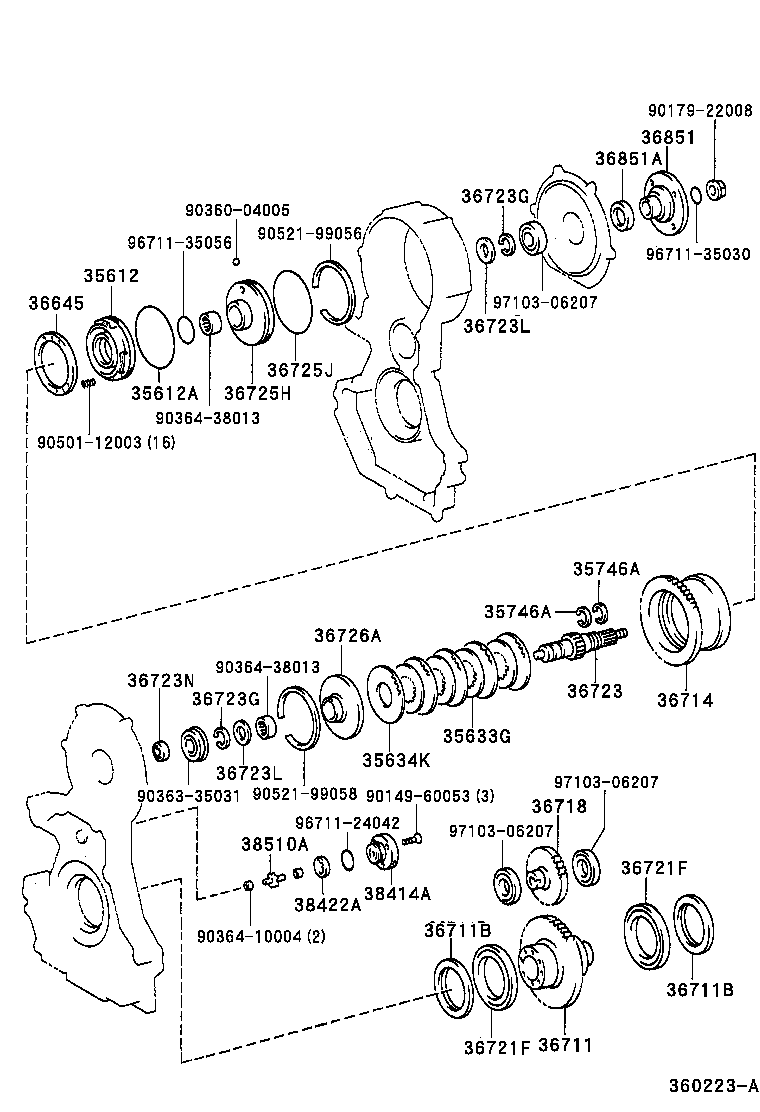

ILLUST NO. 3 OF 3(9701- )BU297

DYNA 200 TOYOACE G25 | POWER TAKE OFF CASE GEAR 35612 - PISTON, CLUTCH (FOR POWER TAKE-OFF) 35612A - RING, O (FOR POWER TAKE-OFF CLUTCH PISTON) 35633G - DISC, CLUTCH (FOR POWER TAKE-OFF) 35634K - PLATE, CLUTCH, NO.1 35746A - RING, OUTPUT SHAFT OIL SEAL, NO.1 35746A - RING, OUTPUT SHAFT OIL SEAL, NO.1 36645 - SPACER, POWER TAKE-OFF OUTPUT SHAFT 36711 - GEAR, POWER TAKE-OFF INPUT 36711B - SEAL, OIL (FOR POWER TAKE-OFF INPUT GEAR) 36711B - SEAL, OIL (FOR POWER TAKE-OFF INPUT GEAR) 36714 - GEAR, POWER TAKE-OFF OUTPUT 36718 - GEAR, POWER TAKE-OFF IDLER 36721F - BEARING (FOR POWER TAKE-OFF INPUT SHAFT) 36721F - BEARING (FOR POWER TAKE-OFF INPUT SHAFT) 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 36723G - RING, SHAFT SNAP (FOR OUTPUT SHAFT REAR BEARING) 36723G - RING, SHAFT SNAP (FOR OUTPUT SHAFT REAR BEARING) 36723L - SHIM (FOR POWER TAKE-OFF OUTPUT SHAFT) 36723L - SHIM (FOR POWER TAKE-OFF OUTPUT SHAFT) 36723N - RING, OUTPUT SHAFT OIL SEAL 36725H - SUPPORT, POWER TAKE-OFF CLUTCH SPRING, NO.1 36725J - RING, O(FOR POWER TAKE-OFF CLUTCH SPRING) 36726A - SUPPORT, POWER TAKE-OFF CLUTCH SPRING, NO.2 36851 - RETAINER, POWER TAKE-OFF JOINT 36851A - SEAL, OIL (FOR POWER TAKE-OFF JOINT RETAINER) 38414A - COVER, POWER OIL PUMP 38422A - GEAR, POWER OIL PUMP FOLLOW 38510A - SHAFT ASSY, OIL PUMP DRIVE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
